610

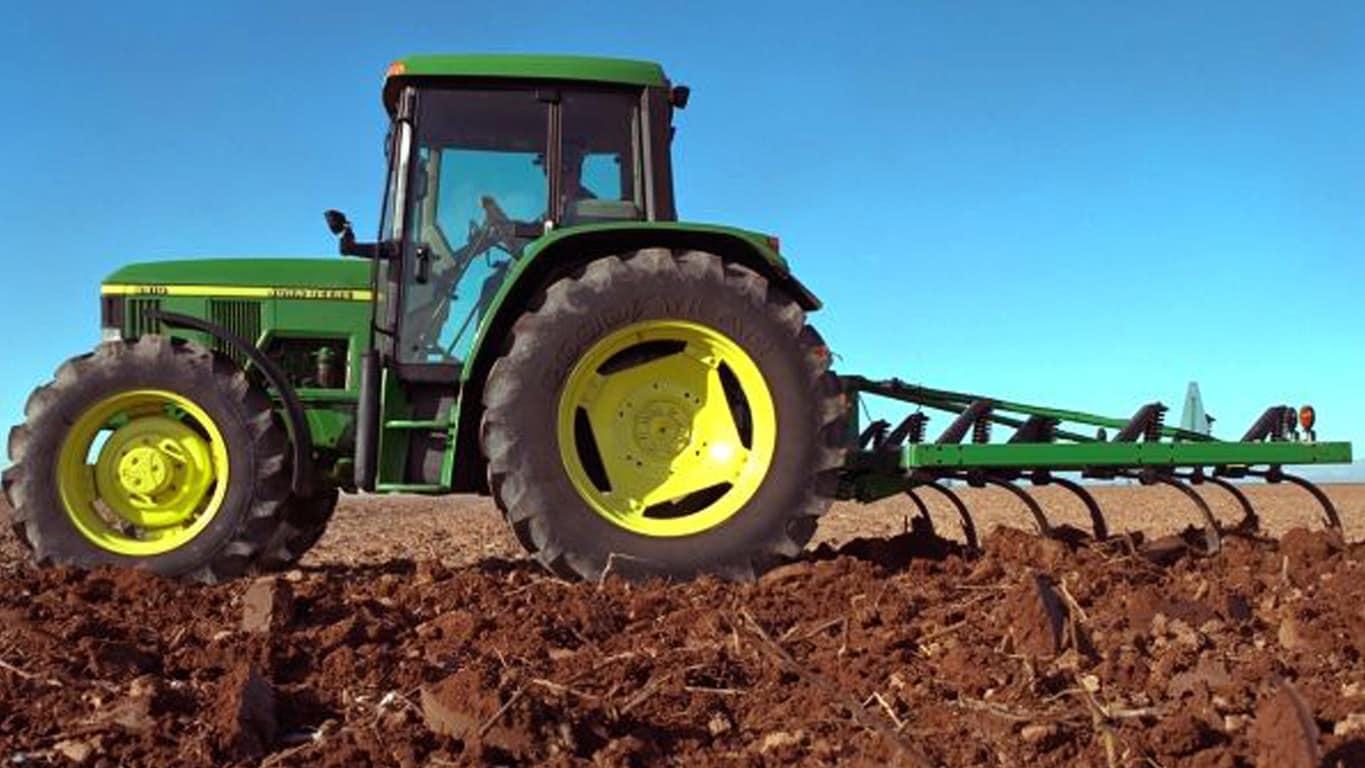

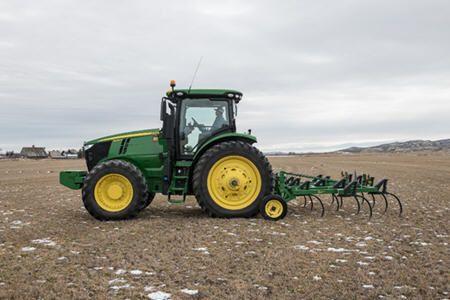

The 610 Chisel Plow is available in a variety of sizes to help match tractor horsepower and work designs.

Model

Width

Type of fold

Standards

Three-bar integral
2.44 m to 6.10 m
(8 ft to 20 ft)
Non-fold
Rigid

TruPosition™

Tru-Depth™

Typical percents of the residue cover that remains from the 610 are listed as follows (the percentages do not take into account variables such as the condition of the residue, speed, and soil type):

Starting residue cover (percent)

Remaining non-fragile* residue cover (percent)

Remaining fragile** residue cover (percent)

with
51-mm
x
356-mm
(2-in. x 14-in.) chisel point

with
102-mm x
368-mm
(4-in. x 14.5-in.) shovel

with
76-mm
x
610-mm
(3-in. x 24-in.) shovel

with
51-mm
x
356-mm
(2-in. x 14-in.) chisel point

with
102-mm
x
368-mm
(4-in. x 14.5-in.) shovel

with
76-mm
x
610-mm
(3-in. x 24-in.) shovel

100

70

60

60

50

45

45

90

65

55

55

45

40

40

80

56

50

50

40

35

35

70

50

42

42

35

30

30

60

42

35

35

30

27

27

50

35

30

30

25

22

22

40

28

25

25

20

18

18

*Non-fragile residue includes crops like corn, sorghum, wheat (more than 45 bu).
**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, cotton.

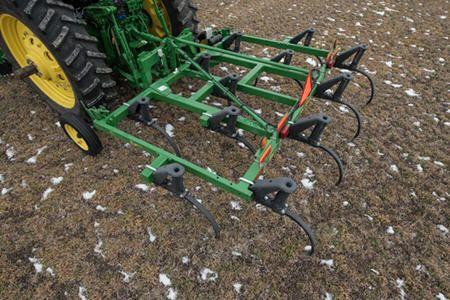

The 610 Chisel Plow features a large 102-mm x 102-mm (4-in. x 4-in.) tubular steel mainframe.

Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.

The rigid standard:

• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Design is suited for fields having few obstructions
• Will till to 203 mm (8 in.) deep
• Good clearance to handle heavy trash
  • 711-mm (28-in.) underframe
  • 305-mm (12-in.) spacing

The TruPosition standard:

• Cast pivot assembly holds shank firm while working in the soil
• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Shank is replaceable without disassembly of the standard assembly
• Trip action is suited for fields having rocks or other obstructions
  • 550-lb trip 711-mm (28-in.) standard will till to 203 mm (8 in.) deep
  • 711-mm (28-in.) underframe
  • Trip height of 254 mm (10 in.) for good clearance
• Slotted lower hole to aid in removing ground-engaging tools

The Tru-Depth standard:

• Cast pivot assembly holds the shank firm while working in the soil
• 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.); edge bent for extra strength
• Designed to work in rocky ground and heavy draft conditions
  • Will till to 305 mm (12 in.) deep
  • Trip height of 279 mm (11 in.)
  • 568-kg (1250-lb) trip force
• Excellent clearance to handle heavy trash
  • 813-mm (32-in.) underframe
  • 305-mm (12-in.) spacing

An implement warning light harness with a turn-signal module for two amber and two red lights are included as standard equipment for safe transport on roads.

The implement warning light harness requires one of the following:

• Category 2, 3-point hitch with or without Quik-Coupler
• Category 3 and 3N, 3-point hitch with or without Quik-Coupler

Horsepower requirements

The rigid and TruPosition™ standards require engine horsepower of 6 hp per ft to 10 hp per ft.

The Tru-Depth™ standard requires engine horsepower of 6 hp per ft to 14 hp per ft.
