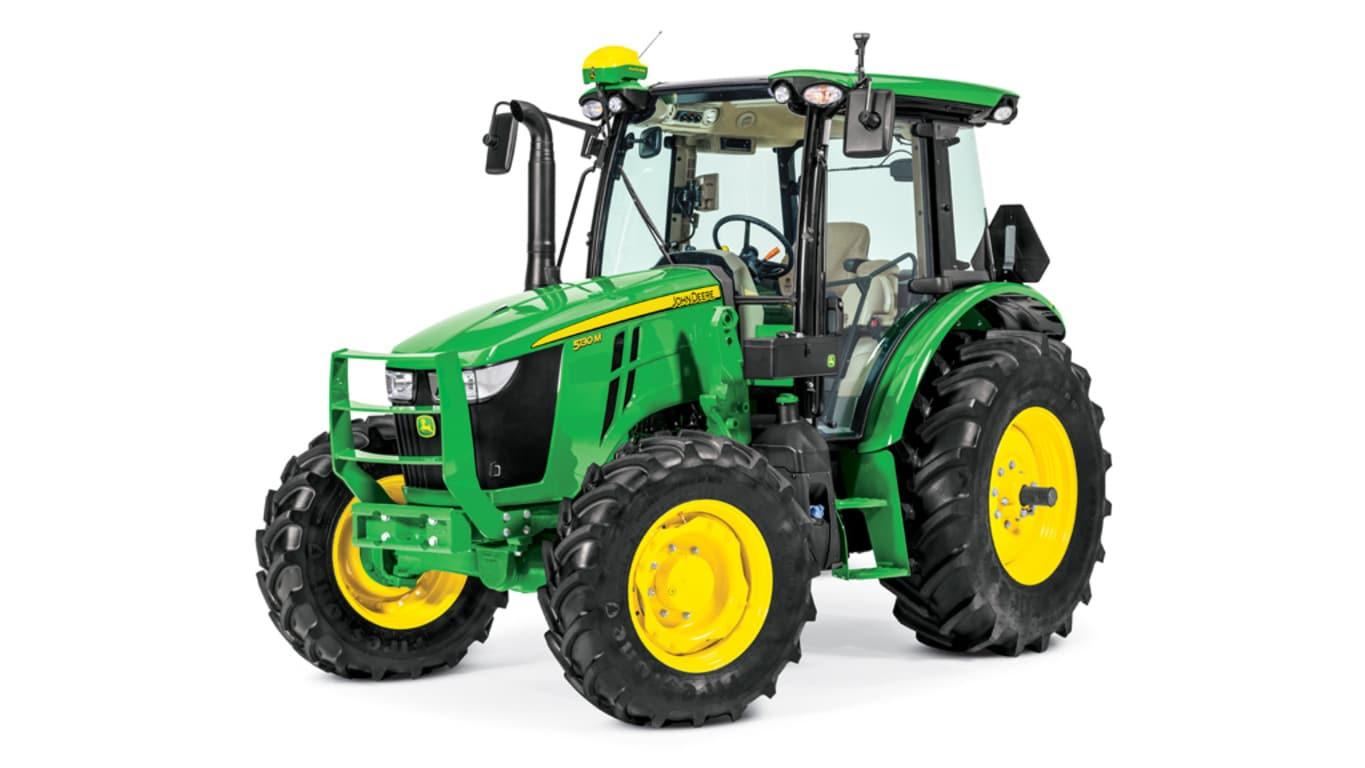

5130M

Overview

Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.

Benefits

• 134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
• Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
• Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
• Increased ballast options with cast wheel offerings for bar axles
• Increase flotation with duals compatible with cast wheels on bar axles

Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.

Consult the operator’s manual for specific wheel spacing configurations by tire offering.

Overview

Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.

Benefits

• Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
• Additional storage space with the rear floor mat behind the seat
• Excellent visibility to rear operations with the rearview mirror
• Shield the operator from the sun with an easy-to-use front sunshade

Features

Standard Cab

Premium Panorama Roof Cab

Deluxe isolated cab with flat floor

X

X

Tilt and telescopic steering column

X

X

Convenience power outlet

X

X

Air conditioning and heater

X

X

Speedometer

X

X

Beverage Holder

X

X

Sun visor for front window

X

X

Two-speed front windshield wiper and washer

X

X

Two front/two rear roof-mounted worklights

X

X

Two front/two rear roof-mounted warning lights

X

X

Two fender-mounted taillights

X

X

120Amp Alternator

X

X

Convenience power outlet

X

X

Monitor mounting bosses (two Sets)

X

X

Swing-out rear window with two removable rear plugs for monitor

X

X

Right-hand console light

X

X

Radio preparation (with speakers, wiring)

X

X

Rear window grab handle

X

X

Bluetooth® ready

X

X

Requires option code 3025 (Deluxe cornerpost exhaust).

X

X

Fixed panorama roof with shade

-

X

Radio (Bluetooth® Capable)

Option

X

Rear window wiper

Option

X

Radio antenna

-

X

Requires option code 4030 (electrohydraulic [EH] rear hitch)

-

X

Bluetooth is a trademark of Bluetooth SIG, Inc.

Overview

Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

Benefits

• Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
• Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
• Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
• Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour

Additional details

Mechanical or electrohydraulic hitch control operation

Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.

The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.

The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.

Optional larger cylinders:

Transmission

Cylinder diameter

Lift capacity at 610-mm (24-in) behind lift point

PowrReverser™ transmission models

Two 65-mm (2.56-in.) cylinders

See specifications for lift capacity.

PowrReverser models with optional high-capacity hitch

One 65-mm (2.56-in.) cylinder
One 75-mm (2.95-in.) cylinder

PowrQuad PLUS or Powr8 transmission models

Two 75-mm (2.95-in.) cylinders

PowrQuad PLUS or Powr8 models with optional high-capacity hitch

Two 80-mm (3.15-in.) cylinders

Rear fender hitch controls

Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.

Rear quick hitch

An updated three-point quick hitch is offered on the 5M Tractors.

• This updated design is a break from the existing welded quick hitch as the frame is cast.
• The curved design eliminates the potential for contact with the rear fender and extensions.
• The quick hitch is available as a field kit option.

Sway bars

Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.

Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.

Enable the following benefits by equipping your tractor with AutoTrac, a GreenStar™ Display and a StarFire™ receiver:

• Simple and user friendly
• Reduces operator fatigue and error
• Saves time by eliminating implement overlap
• Optimizes machine efficiency
• Increase data driven decisions by documenting jobs

Potential jobs to use with AutoTrac:

• Cutting hay
• Over seeding
• Cultivation
• Disking
• Spraying
• Mowing
• Planting
• Fertilizer applications
• Pulling in irrigation pipe
• Cutting ditches
• Transplanting
• Harvesting

Learn more about the benefits of 4240 universal display and Gen5 universal display.

Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.

Learn more about the benefits of Precision Essentials.

Overview

A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutch less hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.

Benefits

• Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
• Improved efficiencies by reducing steps to change gears by 35 percent
• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
• Ideal for loader work and any applications that require frequent directional changes in tight spaces
• Eliminates wear on the clutch by automating gear shifts at the push of a button

Additional details

The PowrQuad™ transmission can be ordered with different options to meet customer needs:

PowrQuad™ PLUS 16F/16R

Powr8™ 32F/16R

Powr8™ 32F/16R with creeper

5M Cab

Option

Option

Option

5ML Open Station

Option on 5105ML and 5120ML Base on 5130ML

Option on 5105ML and 5120ML Base on 5130ML

Not Applicable

5ML Cab

Base

Not Applicable

Option

PowrQuad/Powr8 transmissions include:

• Wet clutch
• Ergonomically mounted transmission lever controlling both gear and range changes
• Declutch button on the range lever for range shifting optionally without use of foot clutch
• Left-hand reverser for seamless directional changes
• Constant-mesh, helical-cut gears
• Pressure-lubricated top shaft
• Positive park pawl
• Three-speed PTO
• Neutral start switch

Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.

Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.

Overview

When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.

As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.

Benefits

• Increased productivity in demanding conditions with more power when operator need it
• More lugging ability for quicker power recovery
• Additional torque provides force to remain horsepower as engine rpm drops below rated speed

Additional Details

Horsepower and torque are mathematically related.

5M 4-Cylinder tractors provide 4% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5075M).

5M Power and Torque Curves
