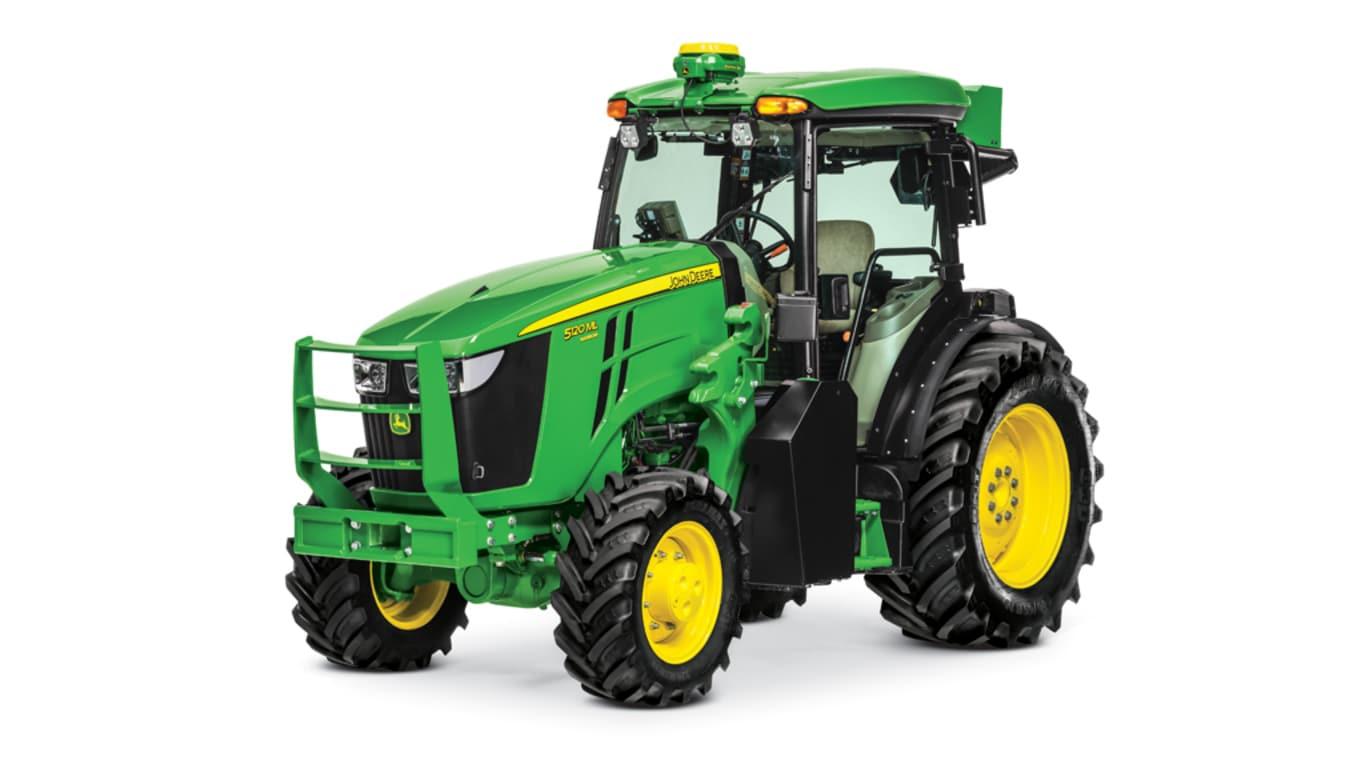

5120ML

Building off the esteemed reputation of the 5ML tractor series, John Deere is now offering the 5ML with a factory-installed cab. This cab has been specially designed to be used in high value crop operations such as orchards and vineyards. Long, hot harvest days are more comfortable with the ergonomically designed cab featuring ample operator space, sleek right-hand console, air suspension seat, and an adjustable steering wheel. To ensure a comprehensive operator experience, controls are common throughout the 5 Series tractor portfolio. Limit tree canopy interference with the low-profile stance and optional limb lifters. By offering a narrow axle from the factory, the tractor opportunities have been widened.

• John Deere designed and factory-installed cab on 5ML tractor
• Save time by ordering factory installed cab versus adding an aftermarket cab
• Stay on track using AutoTrac™ guidance options
• Reduce operator fatigue with ergonomic right-hand controls
• Minimize crop interference thanks to the low-profile tractor
• Fits a variety of crop types with narrow axle offering
• Reduce training time for new operators by having common controls throughout 5 Series portfolio
• Damage to doors and windows is prevented by shielding around doors, reinforced glass, and integrated door handle

Bluetooth is a trademark of Bluetooth SIG, Inc.

No matter your row width, the 5ML can be configured to best fit into your operation. While working in orchards, the standard axle provides a powerful stance and presence. Fit into vineyards without compromising on technology or comfort by equipping the tractor with the narrow axle.

• Fit down tight rows by narrowing the tractor width to 5.25 ft (1.6 m)
• Capable of working in most orchards and vineyards
• The narrow axle option unlocks a new customer segment for the 5ML series

Additional Details:

When the tractor is ordered with the narrow axle, a “Narrow” decal will be added to the hood.

Government and environmental pressures, including public perception, are increasing the need for technology and data collection. The 5ML Cab tractor has the most technology offered in a John Deere high value crop tractor. Efficiently manage employees, crops, and data by adding a Gen 4 Display, StarFire™ receiver, and activating an AutoTrac™ subscription. Spend less time manually inputting records and more time growing a healthy crop by collecting data during each pass.

• Minimize skipped rows and operator error by equipping the tractor with a Gen 4 Display and a StarFire receiver
• Reduce operator fatigue by engaging AutoTrac guidance
• Streamline repetitive tasks, such as making headland turns or tillage work, by using iTEC™ Basic (Intelligent Total Equipment Control)
• View real time machine location and information utilizing JDLink™ offered in base from the factory
• Enhance job tracking data when working with ISOBUS compatible implements

Effortlessly find the right working speed for the job with simple push-button gear shifting. A more productive transmission is found on the PowrQuad PLUS™ and Powr8™ transmissions which use clutchless hydraulic shifting between forward and reverse.

• Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
• Enhances operator efficiencies by reducing steps to change gears
• Effortlessly switch directions using the electrohydraulic fingertip directional lever, ideal in applications that require frequent directional changes in tight spaces
• Eliminates wear on the clutch by automating gear shifts at the push of a button

Increase job performance when using hydraulic implements, such as air blast sprayers, with pressure-flow compensated (PFC) hydraulics. Standard on all 5ML cab tractors, PFC hydraulics provide better hydraulic performance and cooling capacity when running large implements.

• In standby mode, the PFC system is more efficient than a comparable open-center system because the hydraulic power is only provided when needed
• Improved fuel efficiency by reducing engine power when it is not needed
• Enhanced oil cooling when using hydraulically demanding implements
• Reduced hydraulic noise levels

While working in your orchard or vineyard, getting in and out the rows effortlessly is important. Turning radius is a top priority for high value crops growers and was a top priority when designing our high value crops tractors.

• Efficiency gains when making turns in and out of rows
• Worry less about making tight headland turns

Overview

The standard OOS on 5ML Tractors was designed for low-clearance applications. It features a low-profile seat, a smaller-diameter steering wheel, protected controls, and a low-profile, rear-mounted rollover protective structure (ROPS). Rounding off these standard features and incorporated into each operator platform is a shield which limits heat transfer from the hydraulics to the operator.

Benefits

• Ability to drive under low-clearance areas
• Visibility of the front of the tractor with a sloping hood
• Conveniently located operator controls within arms’ reach on the right-hand console control pod
• Protect control pod from low-hanging crops with the right-hand fender shield

Additional details

All the most crucial operator controls are conveniently located within arms’ reach on the right-hand console control pod. The engine throttle control, selective control valve (SCV) levers, power take-off (PTO) engagement, and hitch-lift control levers are grouped together. On the 5ML, this control pod is positioned on the right-side fender, protected from low-hanging crops by a shield.

Color-coded bands on the SCV levers correspond with the color on the rear SCVs, making it easy for any operator to determine which lever operates which rear SCV.

The 5ML Tractor also offers optional fender extensions to minimize crop disturbance, especially in orchards or tree nut applications. Two fender extension options are available to meet varying tire sizes and coverage preferences.

The foldable ROPS on the 5ML Tractor has a unique design and is 15.2-cm (6-in.) lower at maximum height than the standard 5M Tractors.

The shifter linkages are tighter to offer a more accurate shift pattern, which translates to a crisper throw between gears. Incorporating technology found on standard 5M Tractors, the 5ML now offers a declutch button, enabling the operator to shift gears within a range without the use of the foot clutch.

5ML Tractors also include the following features:

• Retractable seat belts
• Rear certified ROPS for OOS tractors
• Heat shield limiting hydraulic heat passed onto the operator Key-switch interlock prevents bypass starting
• Audible and visual PTO warning alerts when the operator leaves the seat with the PTO engaged
• Positive park position prevents the tractor from moving when the engine is off
• Four amber turn-signal/flashing warning lights for road transport (these are break-away) Slow-moving vehicle (SMV) sign alerts other road users during transport
• Safety decals keep safety in the minds of new and experienced operators
• Left- and right-hand steps provide easy and convenient access from both sides of the tractor Fuel system is fully grounded to meet safety and fuel fill regulation requirements
• For convenience of operation, the fuel and diesel exhaust fluid (DEF) fill are both on the same side with clearly marked and color-coded caps. The DEF tank has a capacity of 12.1-L (3.2-gal.), which is more than enough to sustain proper tractor operation and fuel treatment for more than one full tank of diesel. A field-installed lockable fuel cap is offered for protection and peace of mind.

Transmission controls on PowrReverser™ transmission models:

Gear and range shift levers are located to the right of the operator. The gear lever incorporates a declutch button enabling the operator to shift gears without the use of the foot clutch. Unique knobs also make it easier to distinguish between the two.

Transmission controls on PowrQuad™ transmission models:

A single transmission control is located to the right of the operator. This control features the ability to shift through gears within a range using the rabbit button to increase gears and the turtle button to decrease gears. A range change can be completed with this control, as well by moving through A-D ranges similar to a traditional range controller. To aide in ease of operation, operators can use the integrated declutch button rather than the foot clutch to change ranges.

A foot throttle with a platform pedal is located on the right side of the operator. The pedal is positioned for ease of use, yet does not clutter the floor. The hand throttle is easily accessible on the right hand console.

Engaged by either foot, the differential lock pedal is placed on the floor.

When the tractor is used in applications requiring the clutch and brake pedals to be used frequently, the operator will see the benefit of the suspended pedals.

The electrohydraulic forward/reverse direction lever is located on the left-hand side of the instrument console, connected to the steering column. There is also a guard for the reverser lever. Operated with the left-hand finger, the right hand is free to simultaneously run the loader, hitch, or hand throttle.

3-point hitch controls

Mechanical hitch controls are available on models equipped with a PowrReverser transmission, while models equipped with a PowrQuad transmission will have an electrohydraulic (EH) hitch. With an EH hitch, operators will have the functionality to raise and lower the hitch from the rear left-hand fender, reducing time when attaching and detaching implements.

PTO controls and speeds

The 5ML features electrohydraulic PTO engagement on all models.

The push/pull knob on open station tractors is conveniently located beside the hand throttle on the right-hand side of the operator. When the PTO is engaged, a light on the instrument panel will illuminate and PTO speed is indicated by target bars. Models equipped with a PowrReverser transmission have a 540/540E rpm shiftable PTO while models equipped with a PowrQuad transmission have a three-speed PTO, 540/540E/1000 rpm.

Enhancing operator safety, the tractor does not start with the PTO engaged. An alarm sounds if the operator attempts to leave the seat with the PTO engaged. The PTO shaft is protected by a hinged shield.

Hydraulics controls

The color-coded bands on the levers, which control triple rear SCVs, correspond to the color of the dust cap and the SCV valve they control.

Mechanical front-wheel drive (MFWD) controls

All four-wheel drive (4WD) axles are equipped with the engage-on-the-go MFWD. This toggle switch is now located on the right-hand console.

Lighting controls – Multi-position dial

The five-position lighting package is straightforward with the lighting control switch on the right side of the steering column. The switch positions are: off, warning, worklight, transport 1 (warning and high-beam headlights), and transport 2 (warning and headlights). A turn-signal lever is located on the left side of the steering column for quick and easy use.

Overview

Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.

Benefits

• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
• Ideal for rear blading and any applications that require frequent directional changes in tight spaces
• Clutch-less hydraulic shifting between forward and reverse
• Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

16F/16R transmission includes:

• Hydraulic wet clutches (forward and reverse)
  • Maximize durability and outlast the life of any dry clutch
  • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
• Platform-mounted shift levers (four ranges, four gears)
  • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
  • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
• Left-hand reverser
  • The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
• Constant-mesh helical-cut gears
  • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
  • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
• Pressure-lubricated top shaft
• Positive park pawl: provides positive park and eliminates the need for a hand brake
• Neutral start switch

The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

NOTE: The PowrReverser transmission is not available for the 5130M or 5130ML tractors.

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

See the PTO functional area for more information on E-PTO.

The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.

See the PTO functional area for more information on E-PTO.

Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.

Enable the following benefits by equipping your tractor with AutoTrac, a GreenStar™ Display and a StarFire™ receiver:

• Simple and user friendly
• Reduces operator fatigue and error
• Saves time by eliminating implement overlap
• Optimizes machine efficiency
• Increase data driven decisions by documenting jobs

Potential jobs to use with AutoTrac:

• Cutting hay
• Over seeding
• Cultivation
• Disking
• Spraying
• Mowing
• Planting
• Fertilizer applications
• Pulling in irrigation pipe
• Cutting ditches
• Transplanting
• Harvesting

Learn more about the benefits of 4240 universal display and Gen5 universal display.

Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.

Learn more about the benefits of Precision Essentials.
