John Deere Specialty TractorsTractor

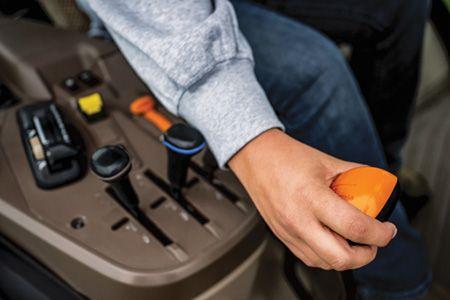

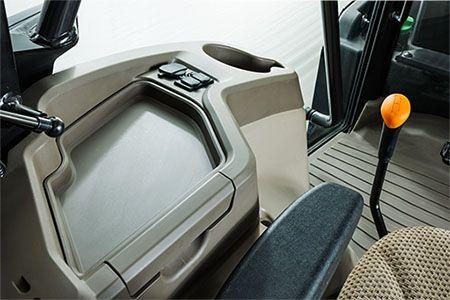

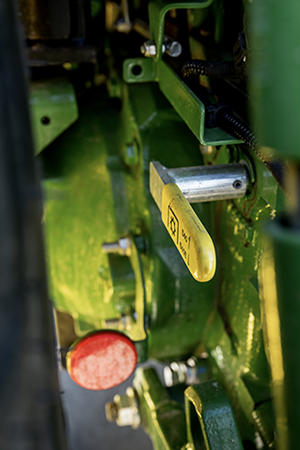

Get in the field and ready to work with the proven, reliable PowrReverser™ transmission. Find the right working range and gear to complete a variety of tasks such as mowing, spraying, harvesting, and transport. Ideal for applications requiring frequent directional changes, like moving crates, the left-hand reverser allows for quick forward and reverse changes. Increase fuel saving by using 540 economy PTO or switch to standard 540 PTO for more power. Increase transmission functionality and productivity by upgrading from a 12F/12R PowrReverser transmission to a 24F/12R PowrReverser transmission. Work in slow speeds by adding optional creeper which could be useful when planting.

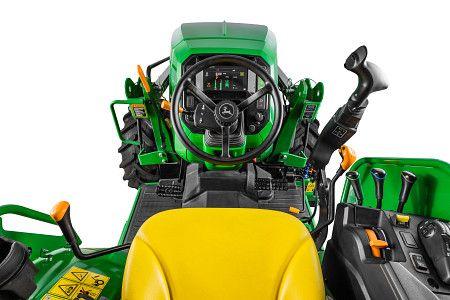

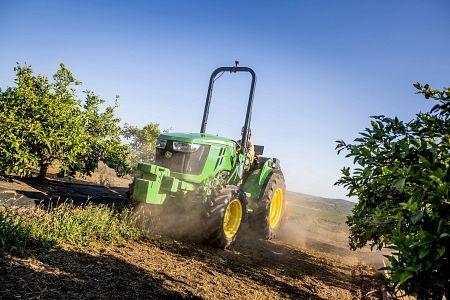

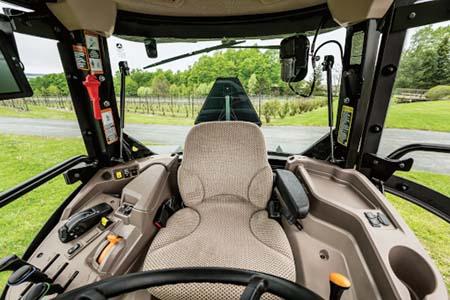

The 5EN is back “EN” action with improved operator comfort features and key product updates. Depending on what jobs you need to perform, you can equip your tractor with an open station (5075EN only) or cab to fit your specific needs.

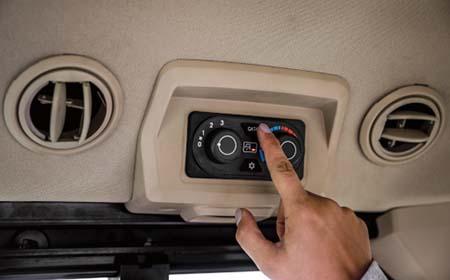

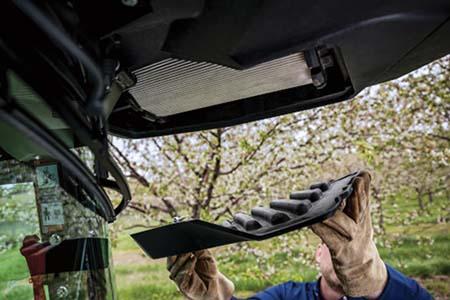

The 5EN cab tractor features a switchable filtration system that allows customers to alternate between Category 2 and Category 4 filtration.

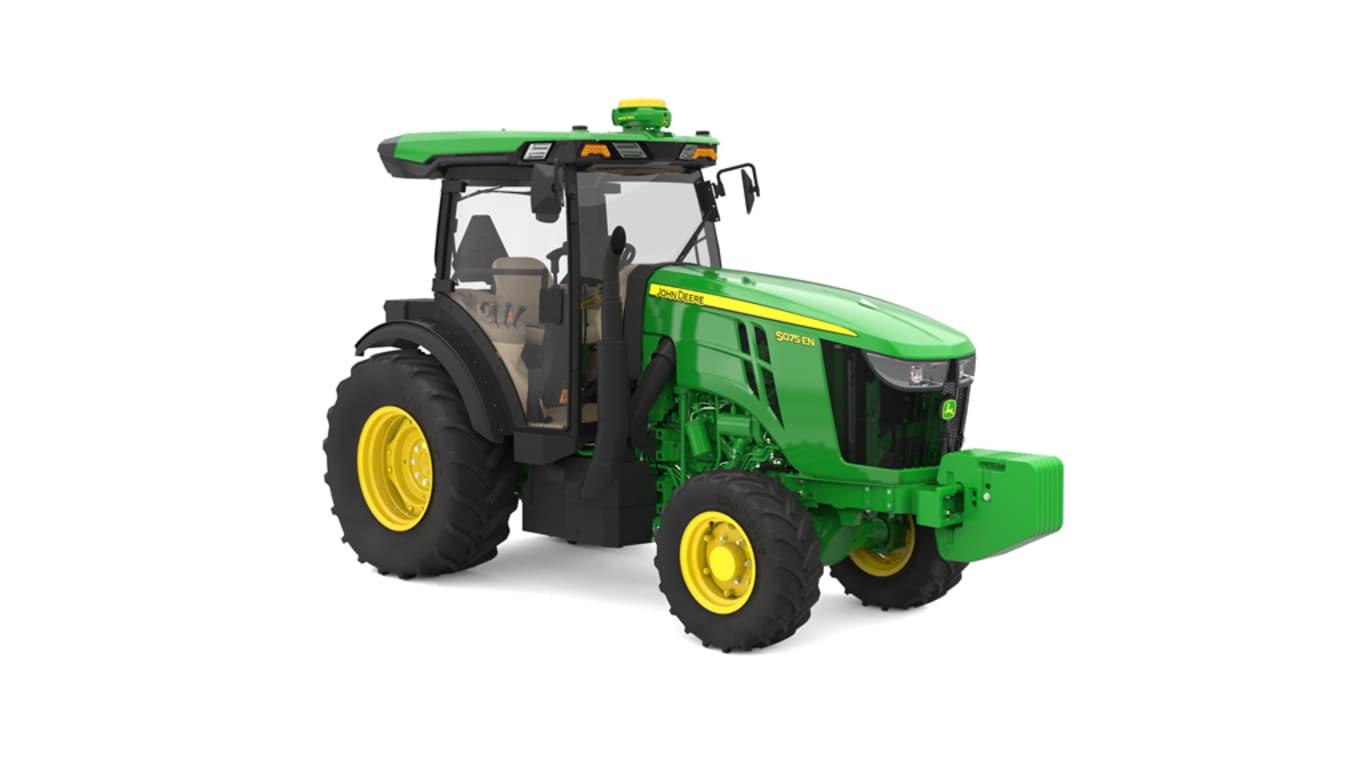

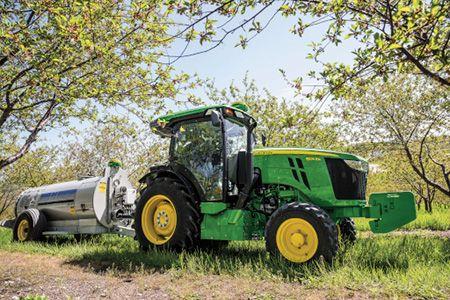

Reduce the cost of operation when purchasing the 5075EN by not having to add Diesel Exhaust Fluid (DEF). This small, nimble tractor is the ideal size for smaller vineyard/orchard applications related to mowing, weed spraying, and pulling harvest wagons or carts.

Hook a variety of front-, mid-, and rear-mounted implements to the 5EN to get work done. Be more efficient with your time by completing multiple jobs during one pass and utilizing the full tractor capabilities.

| Engine description | John Deere PowerTech™ 3029 EWX |
|---|---|
| Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
| Rated engine power | At 2100 rpm: 55 kW 75 hp |
| Maximum engine power | 55 kW 75 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
| Maximum PTO power | - |
| Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
| Hydraulic pump rated output | 68.8 L/min 18.2 gpm |
| Rear hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Base machine weight | - |
| Hydraulic Pumps Nominal Flow | - |
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | - |
| Maximum engine power (ECE-R120) | - |
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | - |
| Rated Engine Power (SAE J1995) | - |
| Rated PTO Power | - |
| Rated engine power (ECE-R120) | - |
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | - |
| Rear Hitch Category (ISO 730-2009) | - |
| Description | John Deere PowerTech™ 3029 EWX |
|---|---|
| Engine type | 3029HPY110 |
| Engine family | NJDXL02.9339 |
| Rated speed | 2100 rpm |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | DOC/DPF |
| Displacement | 3 cylinders: 2.9 L 179 cu in. |
| Rated power | At 2100 rpm: 55 kW 75 hp |
|---|---|
| Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
| Maximum PTO power | - |
| Intelligent Power Management (IPM) | - |
| Power boost | 0 percent |
| Maximum engine power | 55 kW 73.7 hp |
| Engine peak torque | At 1500 rpm: 304 Nm 224 lb-ft |
| Drawbar power | - |
| PTO torque rise | 21 percent |
| Fuel injection system and control | - |
| Air cleaner type | - |
| Maximum Engine Torque | - |
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | - |
| Maximum engine torque (without power boost at 1.600 engine rpm) | - |
| Maximum engine power (ECE-R120) | - |
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | - |
| Maximum engine power with intelligent power management (IPM) | - |
| Rated PTO Power | - |
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | - |
| Rated power (ECE-R120) | - |
| Torque Reserve | - |
| Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
|---|---|
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | Optional |
| Creeper Transmission (Reducer) | - |
| Integrated Electric Power Generation | - |
| Type | Open center |
|---|---|
| Pump rated output | 68.8 L/min 18.2 gpm |
| Available flow at a single rear SCV | 43.4 L/min 11.5 gpm |
| Available flow at front SCVs | - |
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Two |
| Number of front selective control valves (SCVs) | - |
| Joystick SCV control | Mechanical |
| Auxiliary hydraulic features | - |
| SCV control | - |
| Available oil flow at a single rear SCV (200 Type) | - |
| Available oil flow at a single rear SCV (450 Type) | - |
| Available oil flow at a single rear SCV (450E Type) | - |
| Flow Control Valve | - |
| Hydraulic Pumps Nominal Flow | - |
| Hitch draft control load sense type | Electrohydraulic |
|---|---|
| Remote control valves available | Standard: Two |
| Hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Maximum lift capacity behind lift points | 1390 kg 3604 lb |
| Lift capacity at standard frame | - |
| Sensing type | Top link |
| Rear axle differential lock | - |
| Maximum Lift Capacity (SAE J283) | - |
| Maximum lift capacity directly at coupling points | - |
| Maximum lift capacity at coupling points | - |
| Rear Hitch Category (ISO 730-2009) | - |
| Rear hitch lift capacity (SAE designation) | - |
| Throughout lift capacity, 610 mm behind the coupling points | - |
| Drawbar category | - |
|---|---|
| Maximum vertical load | Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb |
| Type | Standard: 540/540E |
|---|---|
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1588 rpm |
| Economy PTO speeds | - |
| Reverse PTO speeds | - |
| Multispeed PTO option availability | - |
| Ground speed PTO option availability | - |
| PTO actuation | Electrohydraulic |
| E-PTO (Economy Rear Power Take-Off) | - |
| Engine rpm at rated PTO speeds (540/1.000) | - |
| Engine rpm at rated PTO speeds (540/540E/1.000) | - |
| Engine rpm at rated PTO speeds (540E/1000/1.000E) | - |
| Category | - |
|---|---|
| Electric power | - |
| Standard lift capacity | - |
| Front power take-off (PTO) | - |
| PTO speed | - |
| Type | Flange |
|---|---|
| Final drive type | Planetary |
| Differential controls | Mechanical (pedal) |
| Axle type | - |
| Brakes, type and control | Hydraulic wet disc |
| Rear differential lock | - |
| Load rating | - |
| Type | Mechanical Front Wheel Drive (MFWD) |
|---|---|
| Front axle differential lock | - |
| Load rating | - |
| Seal Type | - |
| Rear | 14.9-24 In. 8PR R1 Bias |
|---|---|
| Wheel tread range | - |
| Turning radius with brakes | 3.2 m 10.5 ft |
| Turning radius without brakes | 4.65 m 15.3 ft |
| Central Tire Inflation System (CTIS) | - |
| Front | - |
| Tread spacing | - |
|---|---|
| Drive type | - |
| Track width | - |
| Mid-rollers | - |
| Type | - |
|---|
| Primary brake (foot brake) | - |
|---|---|
| Secondary brake | - |
| Park lock | - |
| MFWD braking | - |
| Front axle brakes | - |
| Auxiliary brakes | - |
| Hydraulic trailer brakes | - |
| Pneumatic trailer brakes | - |
| Alternator size | OOS: 70 amp Cab: 110 amp |
|---|---|
| Battery options | 12 V |
| Working lights | Standard: Halogen Optional: LED |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Type of bulb in beacon (Halogen, Zenon, LED) | Kit: LED |
| dB(A) rating for backup alarm | - |
| Total cold cranking amps | - |
| Lighting Type | - |
| Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side |
|---|---|
| Seat | Standard: Mechanical Optional for Cab: Air Ride |
| Cab suspension | - |
| Instructional seat | Not Available |
| Display | Simple automotive-style instrument cluster |
| Radio | Optional |
| Inner cab volume | - |
| dB(A) rating | 82 dBA |
| Cab glass area | - |
| Safety glass rating | - |
| Front visibility | - |
| CAB Type | - |
| Roll-Over Protective Structure (ROPS) | - |
| Seat / Suspension | - |
| Wheelbase | 1950 mm 76.77 in. |
|---|---|
| Overall width | - |
| Overall length | 3639 mm 143.3 in. |
| Overall height | - |
| Drawbar clearance | - |
| Front axle center | - |
| Approximate shipping weight, Open;Cab | OOS: 2735 kg 6029 lb Cab: 3090 kg 6812 lb |
| Approximate Shipping Weight | - |
| Turning radius without brakes | - |
| Base machine weight | - |
|---|---|
| Maximum ballast level | - |
| Maximum permissible weight | - |
| Approximate Shipping Weight | - |
| Maximum Ballast | - |
| Crankcase oil volume | - |
|---|---|
| Fuel tank | 66 L 17.43 U.S. gal. |
| Diesel exhaust fluid (DEF) tank | Not Applicable |
| Cooling system | - |
| Transmission-hydraulic system | - |
| Interval for engine oil change | - |
|---|---|
| Interval for hydraulic/transmission oil change | - |
| Interval for engine coolant change | - |
| Loader | - |
|---|---|
| Lift capacity at full height | - |
| Maximum lift height | - |
| Leveling type | - |
| Guidance | Optional: AutoTrac™ Universal Ready |
|---|---|
| Telematic | JDLink™ Modem |
| Remote diagnostics | - |
| Auto Pilot | - |
| Connectivity | - |
| Monitor | - |
| Receiver | - |
| AutoTrac ready | Optional for cab models |
|---|---|
| ISOBUS ready | No |
| CommandCenter video inputs | - |
| Immobilizer | - |
| Side slope rating | - |
| Uphill/downhill slope rating | - |
| Country of manufacture | Saltillo, Mexico |
| Date collected | 6-Jan-2023 |
|---|
