New equipment

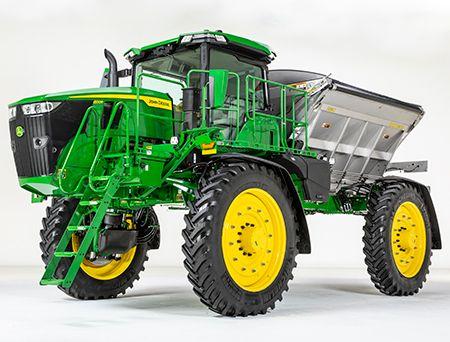

John Deere 400 & 600 Series SprayersDry Spreader
Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.
The DS20 offers of up to 5.6-m3 (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m3 (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:
Dry Spinner Spreader comparison chart
New Leader Options - DS20/DS30 Dry Spinner Spreader for the 400R
G4
G4 Edge
G5
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
Left-hand and right-hand spinner speed control boundary spreading
X
X
Precision independent spinner control monitoring
X
X
Spreadwidth up to 105 ft
X
X
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
16-section swath width control
X
1/2 width spreading
X
Last pass control
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X
Tarp ready
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
409 stainless-steel
X
MultApplier compatible
X
X
X
Backup camera ready
X
X
X

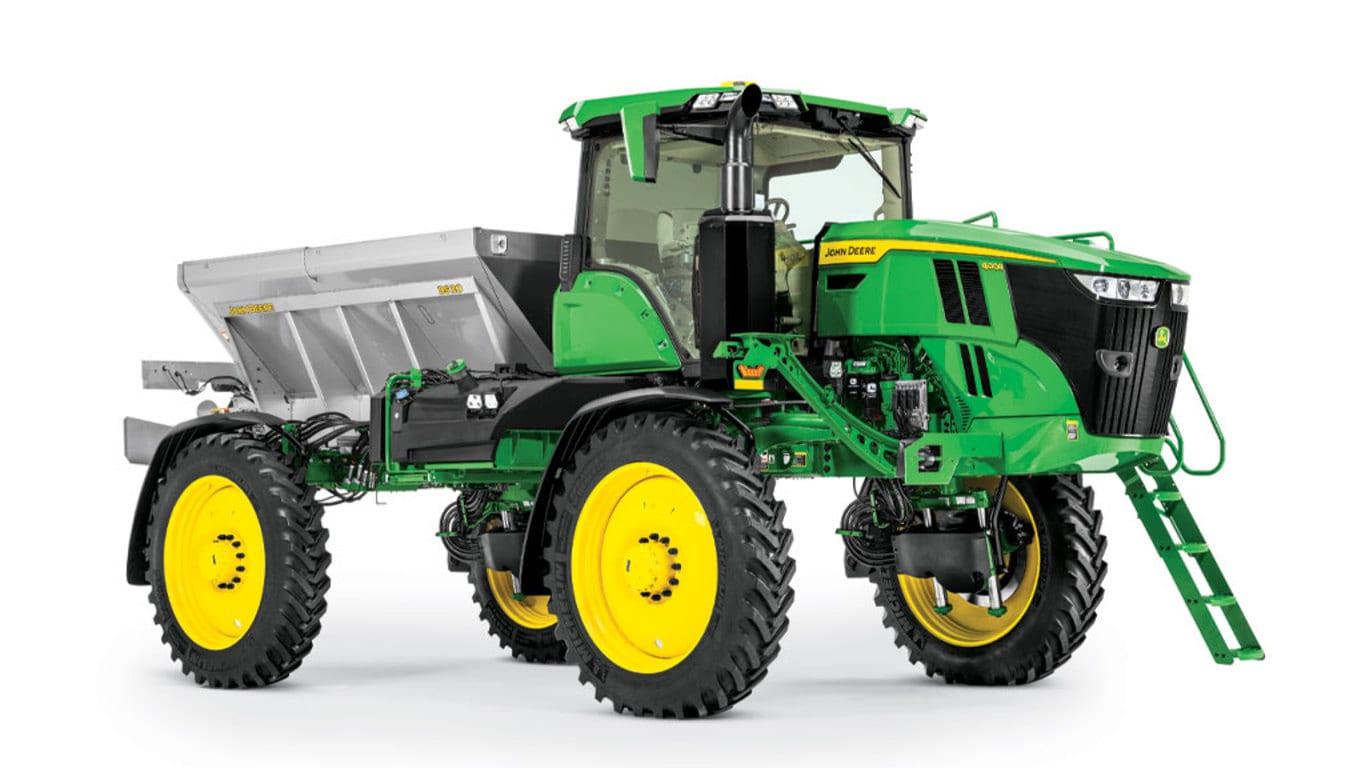

400R Dry Spinner Spreader
New Leader DS20 G4 -
4800
DS20 G4 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4818
DS20 G4 409 Painted Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in) Feedgate
4820
DS20 G4 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13cm (5 in) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G4 Edge -
4844
DS20 G4 Edge 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4846
DS20 G4 Edge 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in.) Feedgate
400R Dry Spinner Spreader
New Leader DS20 G5 -
4856
DS20 G5 304 Stainless Steel, Single Bin, #4 Belt Over Chain, 13 cm (5 in.) Feedgate
4858
DS20 G5 304 Stainless Steel, MultApplier (Dual Bin), #4 Belt Over Chain, 13 cm (5 in) Feedgate
New Leader is a trademark of Highway Equipment Company.

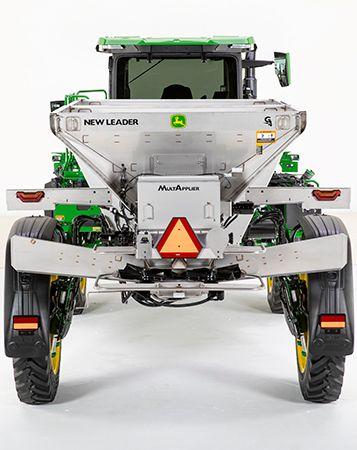

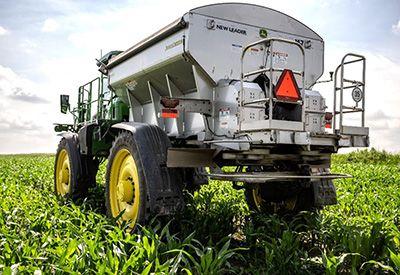

The DS20 and DS30 for the G-Series Technology provide up to 32-m (105-ft) spread widths and the adjustable spinner assembly allows for quick, accurate settings during variable-rate applications, broadcasting materials farther and wider with consistent spread patterns, and producing industry-leading productivity.
Depending on the model of Dry Spinner Spreader, you can achieve spread widths from 18.92 to 27.43 m (60 to 90 ft), but with the increased clearance of 1.74 m (68 in.) the 400R and 600R Dry Spinner Spreader can achieve spread widths from 21 to 32 m (70 to 105 ft). Added spread width increases the number of acres per day and decreases the number of passes, which also reduces fuel costs and compaction.
By maintaining spread width, operators can consistently place product throughout the fields and prevent bottlenecking of product at the row end.
With a full spread pattern and reduced overlap through integrated technologies such as AutoTrac™ automated steering and John Deere Section Control, the 400R and 600R Dry Spinner Spreaders allow for full product coverage while reducing input costs from overlap.
Additionally, by combining the John Deere 400R or 600R Dry Spinner Spreader chassis and the New Leader dry spinner spreader, operators can maintain spread widths even when rpms are reduced. John Deere's pressure-and-flow-compensated hydraulics allows operators to maintain spinner speed throughout each pass, while maintaining consistent spread width and pattern. This added height allows a greater trajectory at a lower spinner speed and has the ability for later season applications.
NOTE: With differences in fertilizer density, size, and crush strength a spread pattern test is the only way to measure a product's true spread width and pattern.
New Leader is a trademark of Highway Equipment Company.

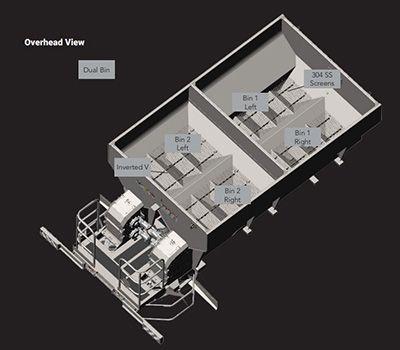

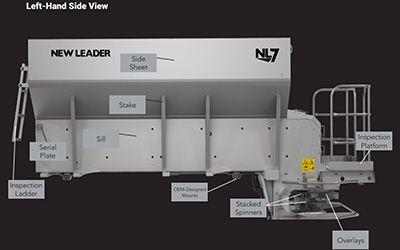

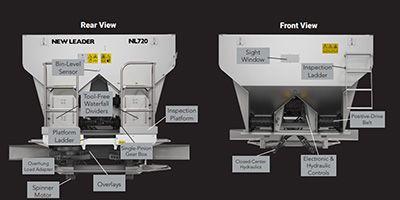

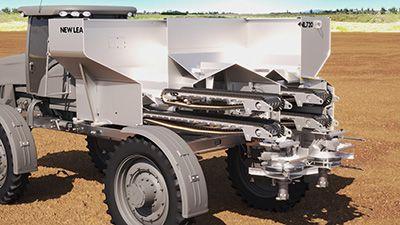

Introducing the New Leader NL720 for the John Deere 600R chassis, available for MY26—a high-output, precision dry spreader engineered for efficiency and accuracy. Designed to maximize productivity, the NL720 features a 33% more efficient high-output design, allowing operators to cover more acres in less time while maintaining precise nutrient placement. With spread width options of 70, 80, 90, 110, and 120 feet and 16-section control, operators can customize application rates and coverage for any field condition. The MultApplier (fixed dual-bin) enables the simultaneous application of two products, ensuring agronomic flexibility and enhanced nutrient management.
With a full spread pattern and reduced overlap through integrated technologies such as AutoTrac™ automated steering and John Deere Section Control, the 600R Dry Spinner Spreaders allow for full product coverage while reducing input costs from overlap.
Additionally, by combining the John Deere 600R Dry Spinner Spreader chassis and the New Leader NL720 dry spinner spreader, operators can maintain spread widths even when rpms are reduced. John Deere's pressure-and-flow-compensated hydraulics allows operators to maintain spinner speed throughout each pass, while maintaining consistent spread width and pattern. This added height allows a greater trajectory at a lower spinner speed and has the ability for later season applications.
NOTE: With differences in fertilizer density, size, and crush strength a spread pattern test is the only way to measure a product's true spread width and pattern.
New Leader is a trademark of Highway Equipment Company.
Ease of Maintenance – Keeping You in the Field
The NL7 is built with operator efficiency in mind, minimizing maintenance to maximize uptime. With zero grease points, there’s no need for daily lubrication, reducing service time and hassle. Easily replaceable one-bolt spinner fin overlays allow for quick swaps to maintain optimal spread patterns. Maintenance-free stainless steel belt bearings enhance durability, eliminating the need for regular adjustments or replacements. And with a tensionless belt design, operators can count on consistent performance without the need for tensioning adjustments. These features work together to keep your machine running longer and more efficiently, so you can focus on the field—not maintenance.

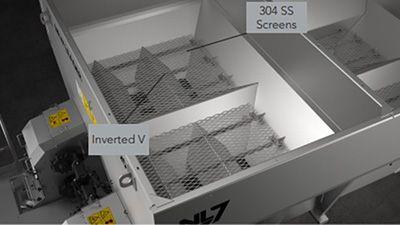

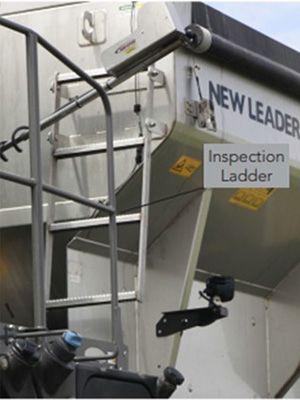

Inspection Ladder & Screens – Built for Safety and Efficiency
The NL7 is designed with operator convenience and product integrity in mind. 304 stainless steel screens help maintain material quality by catching foreign objects before they reach the conveyor, preventing potential damage and ensuring a consistent spread pattern. A safe and convenient inspection ladder provides easy access for interior visibility, allowing operators to quickly check product levels and monitor performance. Additionally, inverted Vs help distribute weight evenly across the conveyor, reducing startup pressure for smoother operation and improved belt longevity. These features enhance safety, efficiency, and reliability, keeping operators confident and productive in the field.

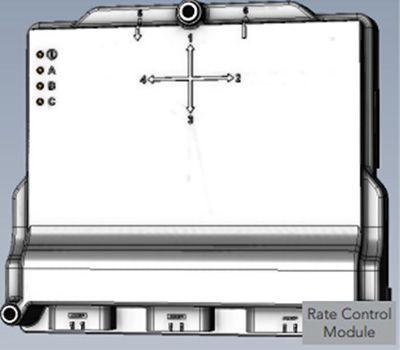

New Leader Manufacturing Control System – Simplified for Efficiency
The NL7’s electronic control system is designed for ease of use, ensuring operators can maximize productivity with minimal effort. A simplified run screen provides clear, at-a-glance operational insights, reducing the need for excessive navigation. The intuitive user interface streamlines field operation with minimal button presses, making adjustments quick and hassle-free. Its user-friendly design simplifies training, allowing operators to get up to speed faster and operate with confidence. Additionally, simple bin chaining activation enables seamless control over multi-bin applications, ensuring efficient and precise nutrient placement. These enhancements make operation straightforward, improving efficiency and reducing downtime in the field.

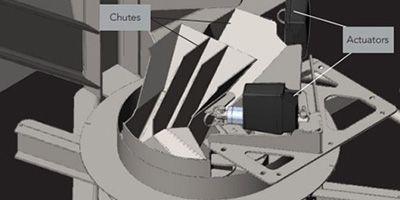

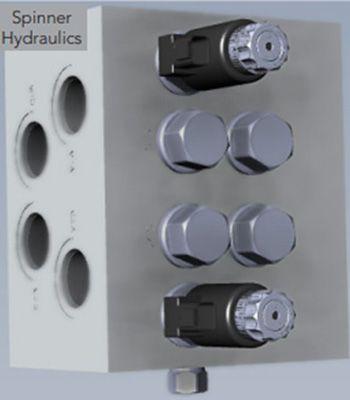

Control System Hydraulics – Efficient and Responsive Performance
The NL720’s hydraulic control system is designed for efficiency, reliability, and precise operation in the field. Its simple, high-efficiency closed-center design optimizes hydraulic flow, reducing energy loss and improving overall performance. The variable displacement load-sense system ensures that hydraulic power is only used when needed, enhancing fuel efficiency and machine responsiveness. Additionally, PWM control provides precise modulation of hydraulic functions, allowing for smoother and more accurate adjustments. Together, these features deliver a highly efficient and responsive system, keeping operators in control while maximizing productivity.

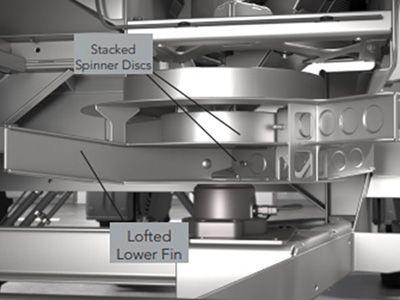

Stacked Spinner Discs – Precision and Performance in Every Pass
The NL7’s innovative stacked spinner disc design ensures consistent and efficient material distribution. This advanced configuration increases product throughput by 25%, allowing operators to cover more acres in less time. The stacked discs and electric-actuated chutes provide four independently controlled spread patterns, offering unmatched flexibility for different application needs. Built with corrosion-resistant 304 stainless steel, the system is designed for long-lasting durability, even in harsh conditions. These features work together to deliver precise, high-output spreading while maximizing efficiency and reliability in the field.

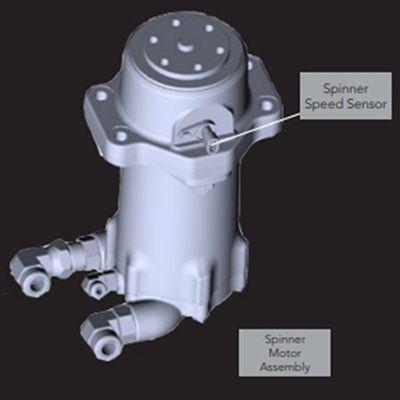

Spinner Motor – Efficient and Reliable Performance
The NL7’s hydraulic spinner motor is engineered for durability and precision, ensuring consistent performance in the field. With a 97% volumetric efficiency design, it maximizes power output while minimizing energy loss for optimal spreading accuracy. The overhung load adapter protects the motor shaft and seal, extending the life of critical components and reducing maintenance needs. Additionally, integrated spinner speed sensors provide real-time monitoring, allowing operators to maintain precise application rates and adjust as needed. These features work together to enhance reliability, efficiency, and long-term durability.

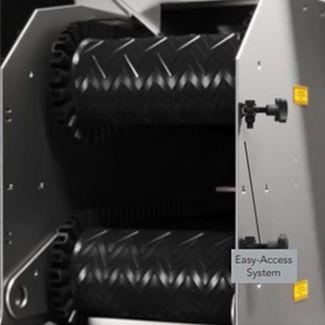

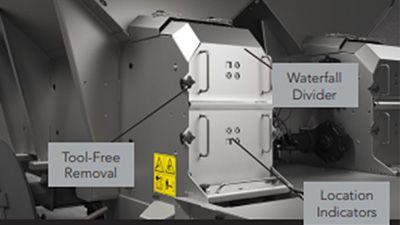

Tool-Free Design – Simplified Maintenance in the Field
The NL7 is built for convenience, ensuring that maintenance and adjustments can be made quickly—even without specialized tools. Tool-free removal of the waterfall, chute, and actuator allows for fast access to key components, minimizing downtime and keeping operators in the field longer. Additionally, its user-friendly design makes routine inspections and maintenance simple, helping to maximize performance and reduce service interruptions. These features ensure that the NL7 stays operational with minimal effort, so operators can focus on productivity rather than repairs.

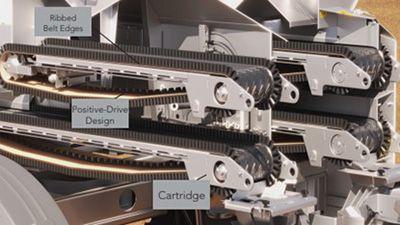

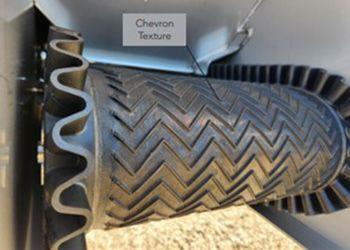

Positive-Drive Straight Belts – Reliable, Consistent Material Flow
The NL7’s positive-drive straight belt design enhances reliability and performance, ensuring smooth and consistent material delivery. Unlike traditional belts, it eliminates slipping and tracking issues, providing precise control over material flow. Ribbed edges minimize material carryback, reducing waste and keeping the system clean, while the chevron texture maintains a steady, even feed rate for optimal spreading accuracy. The continuous belt design further improves durability, and a cartridge-style system allows for quick and easy removal, streamlining maintenance. These features work together to maximize efficiency and keep the NL7 performing at its best in the field.

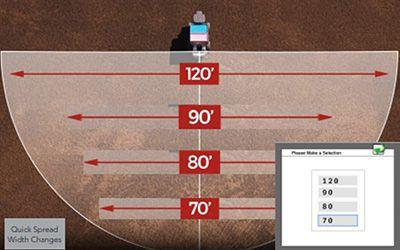

Independent In-Cab Control – Precision at Your Fingertips
The NL7 is designed for both maximum coverage and precision application, giving operators full control over their spread pattern. With independent in-cab control of the left- and right-hand spinners and conveyors, operators can customize distribution based on field conditions. Onscreen adjustments allow spread width changes from 70 to 120 feet, ensuring flexibility for different application needs. Turn compensation, pattern control, last pass control, and half-width spreading help maintain accuracy and reduce overlap. Additionally, automated in-field pattern control adjusts for changes in width or product volume, while pre-calibrated actuators streamline setup for a seamless experience. These features work together to optimize efficiency, reduce waste, and ensure a precise, high-quality application every pass.

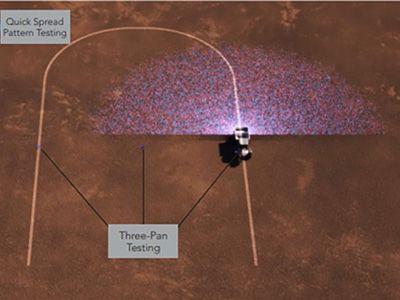

Easy Spread Pattern Testing & Conveyor Calibration – Faster, Simpler Setup
The NL7 is designed to get operators in the field faster with an intuitive, time-saving calibration process. The simple spread pattern wizard offers three pre-programmed starting points, streamlining setup and ensuring accurate application from the start. A three-pan spread pattern allows for quick and efficient testing, reducing the complexity of adjustments. The fixed feedgate ensures consistent throughput across various product types, eliminating variability in application rates. Additionally, no conveyor calibration is needed, thanks to the innovative conveyor design and fixed feedgate. These features help operators save time, reduce waste, and maintain optimal performance with minimal effort.

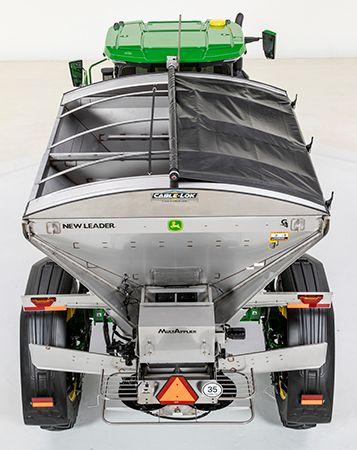

New Leader Options - DS30 Dry Spinner Spreader
G4
G4 Edge
G5
NL7
John Deere SpreadStar dry rate control system
X
New Leader ISO-VT dry rate control system
X
X
X
Left hand and right hand spinner speed control boundary spreading
X
X
Precision independent spinner control monitoring
X
X
X
Spreadwidth up to 105 ft
X
X
X
Spreadwidth up to 120 ft
X
Maximum Output Rate of 40 CFM (Cubic Feet per Minute)
X
X
X
Maximum Output Rate of 50 CFM (Cubic Feet per Minute)
X
16-section swath width control
X
X
1/2 width spreading
X
X
Last pass control
X
X
Automatic feedgate and fan frame control
X
Centralized grease banks
X
X
X

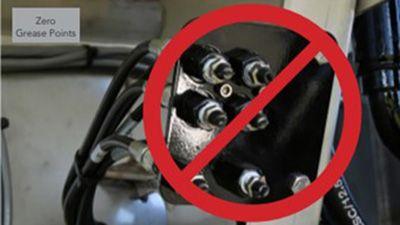

Zero grease points
X
Tarp ready
X
X
X
X
Automatic chain oiling routine and alarms
X
X
X
304 stainless-steel
X
X
X
X
409 painted stainless-steel
X
MultApplier compatible
X
X
X
MultApplier (Fixed Dual Bin)
X
Backup camera installed
X
X
X
X
600R Dry Spinner Spreader
New Leader DS30 NL7 -
4868 DS30 NL7 304 Stainless Steel, MultApplier (Dual Bin), Positive-Drive Straight Belt, 9.53 cm (3.75 in) Fixed Feedgate

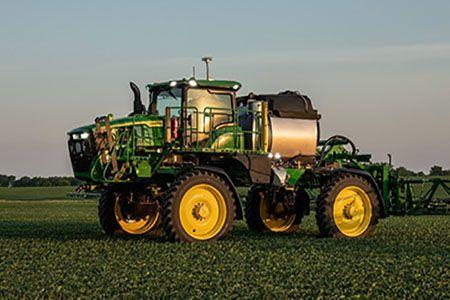

With the CommandDrive powertrain, save fuel, reduce cab noise, get improved traction in challenging conditions, and cover more acres per day. CommandDrive offers the operator an Auto Mode that automatically directs the engine to run at the lowest rpm necessary to maintain ground speed and hydraulic functions and to meet the demands of the solution system.
CommandDrive also allows operators to adjust the aggressiveness of acceleration and deceleration and features an Auto Idle system that reduces engine speed to 900 rpm when the machine is in park. It all adds up to:
CommandDrive is base equipment on all 408R, 410R, 412R, 612R, and 616R Sprayers, as well as 400R and 600R Dry Spinner Spreaders.

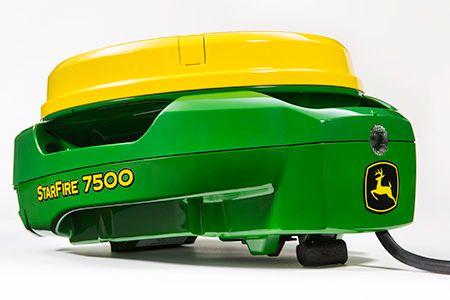

The StarFire 7500 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7500 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.
Code
Attachment
Description
189T
StarFire™ 7500 Integrated Receiver with SF1
189U
StarFire™ 7500 Integrated Receiver with 1 year SF-RTK License
189W
StarFire™ 7500 Integrated Receiver with RTK (base station) Permanent License
To learn more about the StarFire 7500, visit the StarFire 7500 page.
When you’re staring down a string of 2,000-acre days, your equipment isn’t all that needs to be operating at peak – your operators need to be at their best, too. That’s why John Deere put together a range of cab packages to give you just the right features to keep your operators comfortable and efficient.
For corner-office comfort that can help make short work of the longest days, look at the Ultimate Comfort and Convenience package. The heated, ventilated ActiveSeat™ II isolates the operator from up to 90 percent of vertical movement and comes in leather with massage functions. The Ultimate package also gives you a premium XM® ready sound system with subwoofer, a leather-wrapped steering wheel, a refrigerator, and more.
When the long days turn into long nights, you’ll be glad you ordered the Ultimate Visibility package. A full 360 degrees of powerful light-emitting diode (LED) cab lighting gives you a clear view all around the machine, while eight LED service lights illuminate critical service areas.
The following table gives a quick reference of what is contained in the Visibility packages.
Feature
Premium Visibility package
Ultimate Visibility package
Cab
Halogen work lights (cab roof)
---
---
LED work lights (cab roof)
Six
Six
LED beacons (cab roof)
Two
Two
LED convenience lights
Eight
Eight
Front sunshades
X
X
Right-side sunshades
X
X
Rear sunshades
X
X
Front wiper
X
X
Right-side wiper
X
X
Vehicle
Halogen work lights (vehicle)
---
---
Halogen hood work lights
---
---
Halogen high beam (hood)
---
---
Halogen low beam (hood)
Two
Two
LED high beam (hood)
Two
Two
LED work lights (vehicle)
Six
Six (two of these are higher, 4400-lumen output lights)
LED hood work lights
Four
Four
LED beacons
One rear
One rear
Boom LED lights
Two
Two
Boom halogen lights
---
---
Manually adjustable left-hand and right-hand boom mounted with bubble mirror
X
X
Manually adjustable right-hand cab
---
---
Electrically adjustable and heated right-hand cab
X
X
Manual underframe mirror
---
---
Electrically adjustable and heated underframe mirror
X
X
Additional camera ready
X
---
Left-hand and right-hand side view camera ready
X
---
Left-hand and right-hand side view camera installed
---
X
Integrated backup camera
X
X
In addition to the Visibility packages available, the following table gives a quick reference of what is contained in the Cab Comfort and Convenience packages.

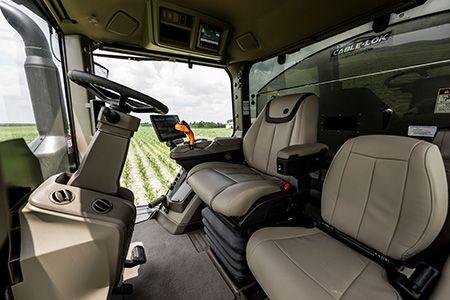

Select Comfort and Convenience package
Ultimate Comfort and Convenience package
Cloth seat
X
---
Leather seat with carpeted floor mat
---
X
ActiveSeat™ II
---
X
Heated and ventilated leather seat with massage functionality
---
X
Mechanical fore/aft and lumbar support
X
---
Electronic controls and pneumatic lumbar support
---
X
Adjustable right-hand CommandARM™ controls with integrated CommandCenter™ touchscreen display
X
X
24-degree right-hand seat swivel and 8-degree left hand seat swivel
X
---
24-degree right-hand seat swivel and 24-degree left-hand seat swivel
---
X
AM/FM Aux and Bluetooth® wireless inputs plus two cab speakers
X
---
16.5-cm (6.5-in.) touchscreen radio, XM ready, and 6.1 speaker system with subwoofer including AM/FM Aux with Bluetooth™ wireless inputs
---
X
Automatic temperature controls with controls located on CommandARM
X
X
Footrests
---
X
Business band ready
X
X
Refrigerator
---
X
Four USB and one 12-V outlet
X
X
Right-hand accessory rail
---
X
120-V outlet
---
X
Leather-wrapped steering wheel
---
X
Some of the features in the chart above are also available as attachments. There are also many options for mounting a variety of monitors, tablets, and phones.
*NOTE: Bluetooth where certification allows.
Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.
NOTE: Not available on sprayers ordered as dry box only.
To make the most powerful John Deere options available in one cost-effective package, 408R through 616R Sprayer models can be ordered as John Deere Signature Edition. Marked with an exclusive badge only available on the Signature Edition, this package includes:
Get all the top-of-the-line comfort features and technology options in one special edition: The John Deere Signature Edition.
For any additional mounting needs, there are part solutions available through John Deere to resolve unique mounting configuration needs.
*NOTE: Automatic Solution Control, BoomTrac Pro 2, and ExactApply system are not available on the 400R and 600R.

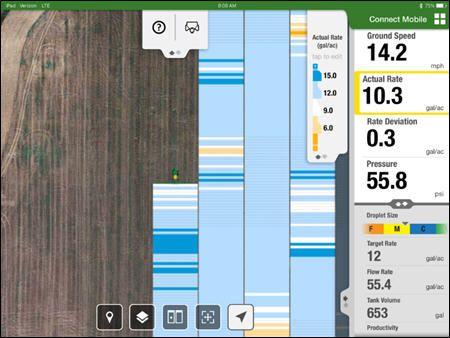

John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.
Monitor key performance indicators in map layers and dashboard tiles such as:
Connect Mobile hardware is factory installed on all model year 2022 and newer 408R, 410R, 412R, 612R, 616R, 400 and 600 Series Sprayers and dry machines as well as model year 2017 to 2021 R4030, R4038, R4044, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.
Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.
iPad and Apple are trademarks of Apple Inc.
When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.
John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.
With your permission, John Deere Connected Support:
With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
| Engine | - |
|---|---|
| Rated engine power | 243 kW 326 hp |
| Maximum engine power | 266 kW 357 hp |
| Transport speed, maximum | 56.3 km/h 35 mph |
| Spread speed range | 0 to 40.2 km/h 0 to 25 mph |
| Dry compatible | Yes: 5.7 m3 200 cu ft |
| Spread system type | - |
| Suspension | Dual-strut independent wheel air-ride suspension |
| Crop clearance with standard tires | 152.4 cm 60 in. |
| Weight (empty) | With DS20: 12,082 kg 26,636 lb |
| Make | - |
|---|---|
| Rated engine power | 243 kW 326 hp |
| Maximum engine power | 266 kW 357 hp |
| Emissions | Final Tier 4 (FT4) |
| Number of cylinders | Six |
| Displacement | 9.0 L 549 cu in. |
| Alternator | 250 amp |
| Fuel tank capacity | 565 L 149.2 gal. |
| Diesel exhaust fluid (DEF) tank capacity | 29.5 L 7.8 gal. |
| Type | Hydrostatic |
|---|---|
| Drive | Full-time, four-wheel drive (4WD) |
| Shifting | Electrohydraulic |
| Hydraulic reservoir capacity | 98.4 L 26 gal. |
| Spread speed range | 0 to 40.2 km/h 0 to 25 mph |
| Transport speed, maximum | 56.3 km/h 35 mph |
| Dry compatible | Yes: 5.7 m3 200 cu ft |
|---|---|
| Suspension | Dual-strut independent wheel air-ride suspension |
| Crop clearance with standard tires | 152.4 cm 60 in. |
| Front tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Rear tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Flotation tires | 520/85R38 or 620/70R38 (field installed only) |
| Hydraulic tread adjust | Standard |
| Wheel tread spacing | 305 to 406.4 cm 120 to 160 in. |
| Wheelbase | 430 cm 169.3 in. |
| Turning radius | 8.7 m 28.5 ft |
| Parking brake | Spring-engaged, hydraulically disengaged wet disk pack |
| Primary brakes | Hydrostatic |
| Ladder raise/lower | Automatic |
| Weight (empty) | With DS20: 12,082 kg 26,636 lb |
| Drybox model | - |
|---|---|
| Drybox material | - |
| Spread width | - |
| Flow rate | - |
| Product spread | - |
| Conveyor belt type | - |
| Covering tarp | - |
| Protection grates | - |
| Concentrated lubrication points | - |
| Scale | - |
| Type | - |
|---|---|
| Spreader calibration | - |
| Fertilizer spreading | - |
| Spreader options | - |
| Variable rate compatible | - |
| Feedgate | - |
| Endgate | - |
| Date collected | 1 March 2021 |
|---|
