All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting is not a problem as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting.
With the BW15872 parking stand kit, the 300E Loader can be quickly and easily removed from the tractor without tools.

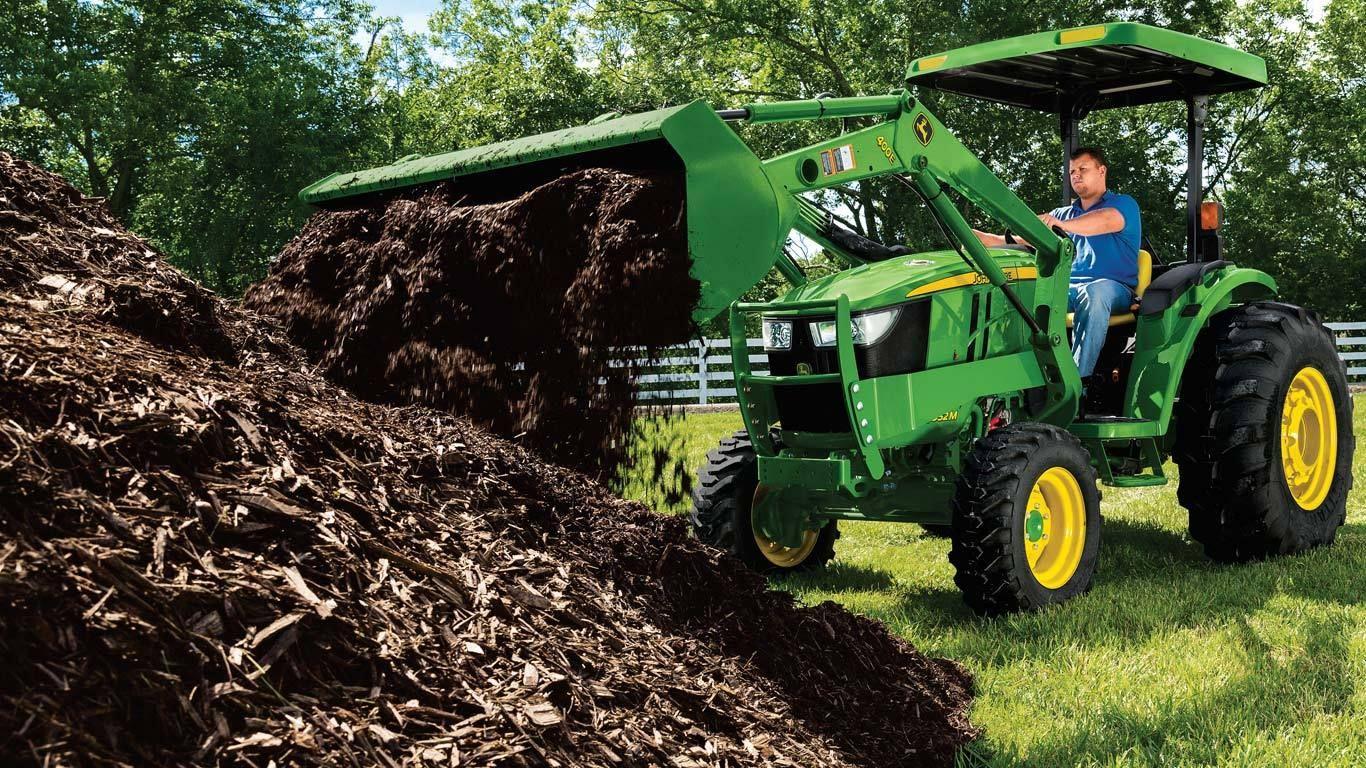

Similarly, the BW16127 parking stand kit allows for the 400E Loader to be parked from the tractor.
Instructions for attaching the loader
Instructions for detaching the loader
The kit includes the following:
| Maximum lift height (A) | 2850 mm 112.1 in. |
|---|---|
| Lift capacity at full height | Measured at pivot (U) 1087 kg 2396 lb Measured at 500 mm ahead of pivot (V) 800 kg 1764 lb |
| Boom breakout force | Measured at pivot (Y) 1743.7 kg 3853 lb Measured at 500 mm ahead of pivot (Z) 1315.4 kgf 2902 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 3485 lb 1580 kg |
| Clearance at full height - bucket dumped (C) | 2298 mm 90.4 in. |
| Dump angle, degrees (E) | 42 degree (angle) |
| Rollback angle, degrees (G) | 28.6 degree (angle) |
| Model | 4044M, 4049M, 4052M, 4066M and OOS: 4044R, 4049R, 4052R, 4066R |
|---|---|
| Front tire | 25x10-16.5 4PR R4 |
| Rear tire | 16.9-24 4PR |
| Front axle configuration | - |
| Wheelbase | 1850 mm 73 in. |
| Pump capacity | 10.2 gpm |
| Rated pressure | 2500 psi |
| Base weight | 150.99 kg |
|---|---|
| Leveling configuration | - |
| Bucket used | Materials |
| Bucket weight | 108 kg 238 lb |
| Lift capacity at full height | Measured at pivot (U) 1087 kg 2396 lb Measured at 500 mm ahead of pivot (V) 800 kg 1764 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb |
| Boom breakout force | Measured at pivot (Y) 1743.7 kg 3853 lb Measured at 500 mm ahead of pivot (Z) 1315.4 kg 2902 lb |
| Bucket rollback force capacity | At maximum height (VV) 1866.1 kg 4112 lb At 59-in. (1500-mm) lift height (XX) 2355.1 kg 5191 lb At ground-level line (ZZ) 3487 kg 1580.6 lb |
| Dimensions | Maximum lift height (A) 2850 mm 112.1 in. At full height - bucket level(B) 2646 mm 104.1 in. At full height - bucket dumped (C) 2298 mm 90.4 in. |
| Overall length (I+F), ft (m) | 3.522 m 11.5 ft |
| Overall height in carry position (J) | 1.5 m 4.94 ft |
| Digging depth (H) | -146 mm 5.7 in. |
| Reach | At maximum height (D) 705 mm 27.7 in. At ground level - bucket level (F) 1672 mm 65.8 in. |
| Bucket angle | Dump angle, degrees (E) 42 degree (angle) Rollback angle, degrees (G) 28.6 degree (angle) Dump angle, ground 128.2 degree (angle) |
| Cycle times | Loader raise, seconds 4.26 seconds Loader lower, seconds 3.13 seconds Bucket dump, seconds 3.14 seconds Bucket rollback, seconds 2.42 seconds |
| Date collected | - |
|---|
