John Deere Flail Mowers & ShreddersFlail Mower


All John Deere flail mowers feature this rugged, heavy-duty gearbox with a continuous 65-hp rating and an intermittent 90-hp rating. Another feature included is a five-year, unlimited-hour warranty.

Base equipment side-slicer knives are good all-purpose knives. They provide aggressive cutting action in tough conditions.
The side-slicer knife characteristics are as follows:

Smooth-cut knives can be ordered as an option:

The hood and end plates are designed for heavy-duty applications:


All machines have a Category 2/1 3-point hitch. Bushings or reversible pins are included for Category 2/1 compatibility.

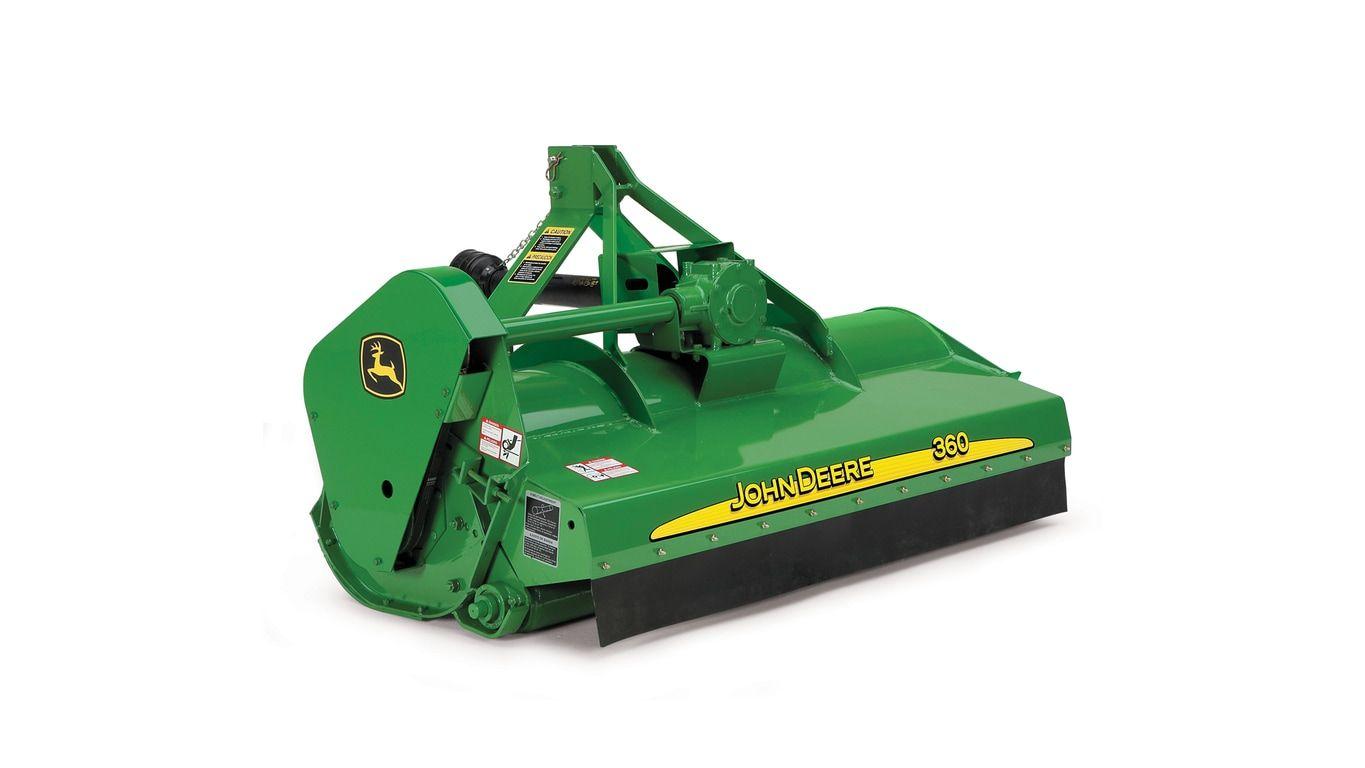

The 360, 370, and 390 Mowers with centrally mounted hitches are suited for normal cutting conditions:
The 390 Mower with a 30.5-cm or 66-cm (12-in. or 26-in.) hitch offset to the right is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards.
| Cutting width | - |
|---|---|
| Cutting height | - |
| Blades - Number | - |
| Blades - Type | - |
| Rotor - Diameter | - |
| PTO | - |
| Tractor horsepower required - Minimum | - |
| Tractor horsepower required - Maximum | - |
| Quick-coupler compatible | - |
| Weight - Approximate | - |
| Cutting width | 1.5 m 58.5 in. |
|---|---|
| Cutting height | 13 to 127 mm 0.5 to 5 in. |
| Hood thickness | 4.8 mm 0.19 in. |
| Number | 108 (54 pairs) |
|---|---|
| Type | Heat-treated Reversible Side-slice (Optional Smooth-cut Cupped Knives) |
| Tip speed | - |
| Speed | 1,850 rpm |
|---|---|
| Diameter | 114 mm 4.5 in. |
| PTO | 540 rpm |
|---|---|
| Gear case (cont. rating) | - |
| Belts | Heavy-duty HC section |
| Gauge roller | 140 mm 5.5 in. |
| Minimum | 22 kW 30 hp |
|---|---|
| Maximum | 56 kW 75 hp |
| Quick-coupler compatible | Yes (Category 1 only) |
|---|
| Overall width | 1.8 m 69 in. |
|---|---|
| Overall height | 0.99 m 39 in. |
| Overall length | 1 m 40 in. |
| Approximate | 360 kg 794 lb |
|---|
| Date collected | - |
|---|
