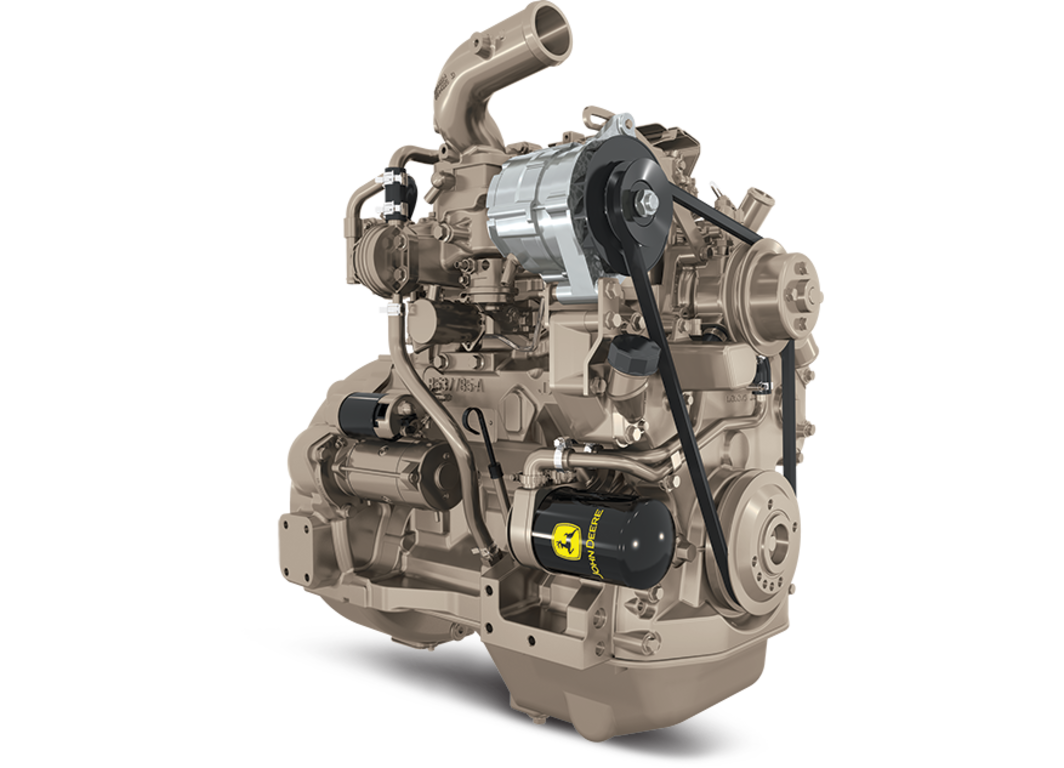

3029HG530

2.9L Generator Drive Engine

Features

Stage V.

John Deere has billions of hours of field experience with off-highway diesel engine technologies and launched many of its engines ahead of EPA and EU deadlines, and is ready to meet Stage V emissions regulations using our proven diesel particulate filter (DPF) solutions. In most cases, OEM customers currently using a John Deere engine with a diesel particulate filter (DPF) won’t have to re-engineer machine design to meet the requirements of Stage V regulations. Our engineers continue to employ a global network of technical resources and the latest technology to lower emissions while improving performance and fluid efficiency.

Wastegated turbocharger

Wastegated turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegated turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.

Exhaust filters

This system is the Best Available Control Technology (BACT) for particulates that delivers premium block load acceptance characteristics, utilizing a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration. Passive regeneration occurs during normal operating conditions when heat from the exhaust stream, and catalysts within the exhaust filter, trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.

No exhaust recirculation

No SCR

High-pressure common-rail (HPCR)

The HPCR fuel system provides variable common-rail pressure and high injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.

Air-to-air aftercooled

This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

2-valve cylinder head

Cross-flow head design provides excellent breathing from a low-cost 2-valve cylinder head. This less complex design is optimized for these ratings.

Compact size

John Deere electronic engine controls

Faster engine control unit (ECU) manages both the engine and the exhaust filter
Premium software option integrates with equipment or vehicles to reduce engineering and installation costs

Big Engine durability

Additional features

EPA Final Tier 4 / EU Stage V engines	-

Model	3029HG530
Number of cylinders	3
Displacement-- L (cu in)	2.9 (177)
Bore and Stroke-- mm (in)	107 x 110 (4.2 x 4.3)
Compression Ratio	16.9:1
Engine Type	In-line, 4-cycle
Aspiration	Turbocharged and air-to-air aftercooled
Length - mm (in)	715 (28.1)
Width-- mm (in)	596 (23.5)
Height-- mm (in)	956 (37.6)
Weight, dry - kg (lb)	400 (882)

DOC/DPF	Size 2
SCR Catalyst	N/A

Hz (rpm)	60 ( 1800 ) 50 ( 1500 )
Generator Efficiency %	90 90
Power Factor	0.8 0.8
Engine power - Prime kW	33-50 33-50
Engine power - Prime hp	44-67 44-67
Engine power - Standby kW	36-55 36-55
Engine power - Standby hp	48-74 48-74
Rated Fan Power - kW	1.8-2.8 1.8-2.8
Rated Fan Power - hp	2.4-3.8 2.4-3.8
Calculated generator set output - Prime kWe	28-43 28-43
Calculated generator set output - Prime kVA	35-53 35-53
Calculated generator set output - Standby kWe	31-47 31-47
Calculated generator set output - Standby kVA	38-59 38-59
