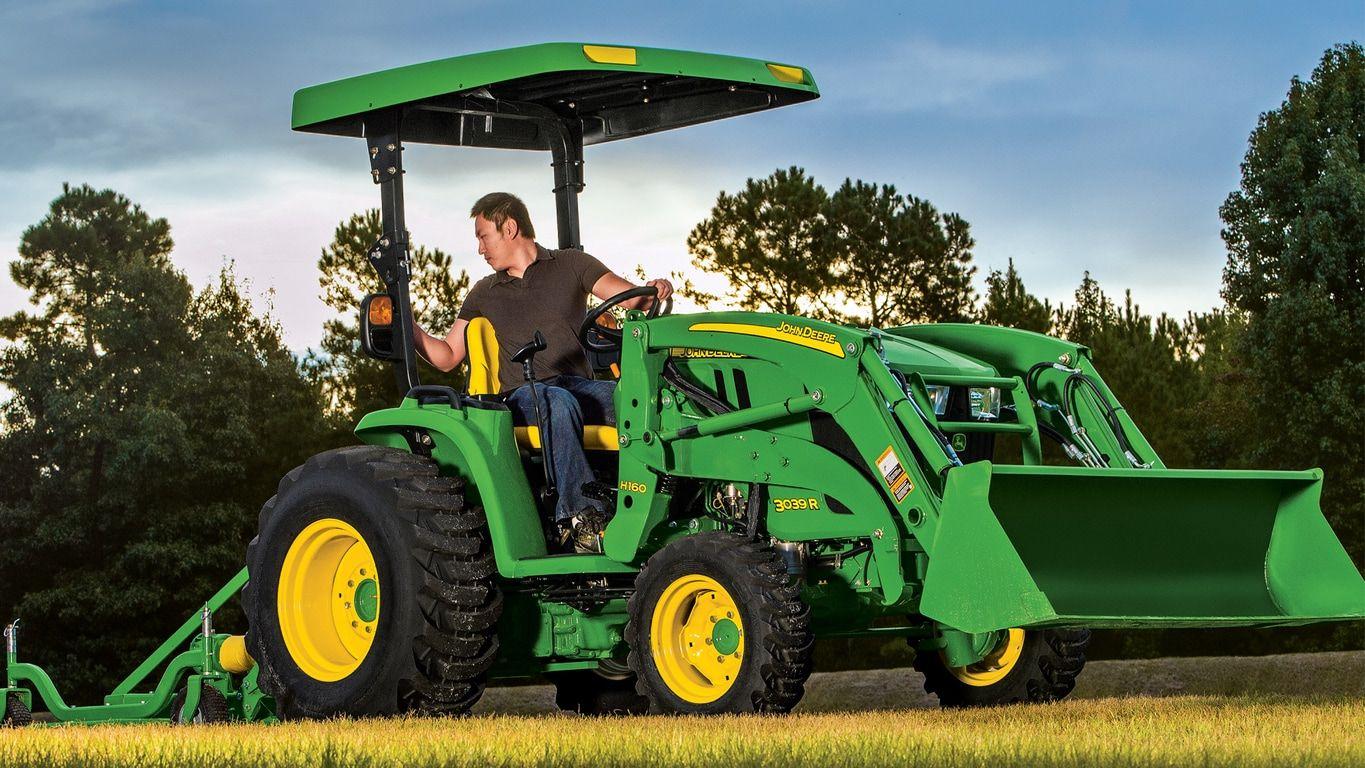

Find your implementLoader
Quik-Park™ equipped loaders are designed for easy removal and mounting to and from the tractor without tools.
The parking stand, attached to the front frame of the tractor, is an integral part of the loader during loader operation.
The parking stand lowers into position by moving the joystick to the raised position once the latches are opened. This allows the loader to move to the parked position.
All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. There is no more searching for grease points that are hard to find. Removing the grease gun from the grease fitting or zerk is not a problem either as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting or zerk.
| Maximum lift height | 2284 mm 90 in. |
|---|---|
| Lift capacity at full height | Measured at pivot 617 kg 1360 lb Measured at 500 mm ahead of pivot 453 kg 999 lb |
| Boom breakout force | Measured at pivot 1295 kg 2855 lb Measured at 500 mm ahead of pivot 922 kg 2032 lb |
| Bucket rollback force capacity | At ground-level line 1188 kg 2619 lb |
| Clearance at full height - bucket dumped | 1743 mm 69 in. |
| Dump angle, degrees | 43 degree (angle) |
| Rollback angle, degrees | 25 degree (angle) |
| Model | 3120/3320/3520/3720/3033R/3039R/3046R |
|---|---|
| Front tire | 7.00-14 6PR R1 |
| Rear tire | 11.2-24 6PR R1 |
| Front axle configuration | - |
| Wheelbase | 1727 mm 68 in. |
| Pump capacity | 8.6 gpm |
| Rated pressure | 2500 psi |
| Base weight | 257.21 kg |
|---|---|
| Leveling configuration | - |
| Bucket used | - |
| Bucket weight | 93.8 kg 207 lb |
| Lift capacity at full height | Measured at pivot 617 kg 1360 lb Measured at 500 mm ahead of pivot 453 kg 999 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot 771 kg 1700 lb Measured at 500 mm ahead of pivot 595 kg 1312 lb |
| Boom breakout force | Measured at pivot 1295 kg 2855 lb Measured at 500 mm ahead of pivot 922 kg 2032 lb |
| Bucket rollback force capacity | At maximum height 1205 kg 2657 lb At 59-in. (1500-mm) lift height 1518 kg 3347 lb At ground-level line 1188 kg 2619 lb |
| Dimensions | Maximum lift height 2284 mm 90 in. At full height - bucket level 2123 mm 83.5 in. At full height - bucket dumped 1743 mm 69 in. |
| Overall length | 3.122 m 10.24 ft |
| Overall height in carry position | - |
| Digging depth | 76 mm 2.9 in. |
| Reach | At maximum height 773 mm 30.4 in. At ground level - bucket level 1381 mm 54.4 in. |
| Bucket angle | Dump angle, degrees 43 degree (angle) Rollback angle, degrees 25 degree (angle) |
| Cycle times | Loader raise, seconds 2.76 seconds Loader lower, seconds 1.69 seconds Bucket dump, seconds 2.91 seconds Bucket rollback, seconds 1.72 seconds |
