Find your implementLoader

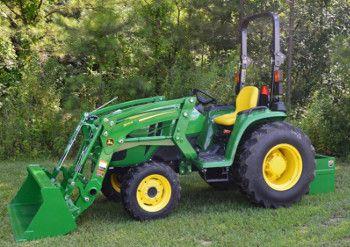

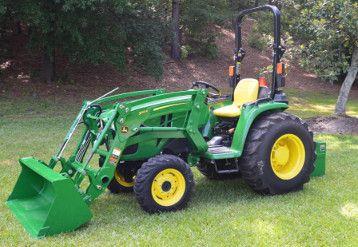

The Mechanical Self-Leveling (MSL) loader provides steady control whether you're new to loader work or a seasoned operator. This option is available for 1 Family, 2 Family, 3D, 3E, 4M Heavy Duty, and 4R Tractors.
As the first MSL loader of its kind for Compact Utility Tractors in North America, this innovation makes loader tasks faster, easier, and more efficient—no matter your experience level.

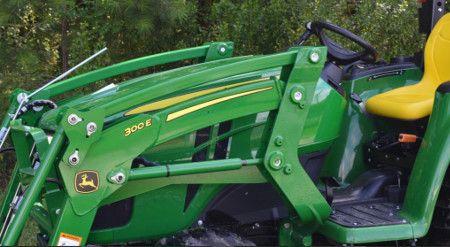

All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting is not a problem as a sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting.
The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.
With the BW15872 parking stand kit, the 300E Loader can be quickly and easily removed from the tractor without tools.
Similarly, the BW16127 parking stand kit allows for the 400E Loader to be parked from the tractor.
Instructions for attaching the loader
Instructions for detaching the loader
The kit includes the following:
| Maximum lift height (A) | 2140 mm 84 in. |
|---|---|
| Lift capacity at full height | Measured at pivot (U) 539 kg 1186 lb Measured at 500 mm ahead of pivot (V) 384 kg 845 lb |
| Boom breakout force | Measured at pivot (Y) 760 kg 1704 lb Measured at 500 mm ahead of pivot (Z) 537 kg 1204 lb |
| Bucket rollback force capacity | At ground-level line (ZZ) 634 kg 1422 lb |
| Clearance at full height - bucket dumped (C) | 1596 mm 63 in. |
| Dump angle, degrees (E) | 43.8 degree (angle) |
| Rollback angle, degrees (G) | 31.4 degree (angle) |
| Model | 3025E, 3032E, 3038E |
|---|---|
| Front tire | 25x8.50-14 4PR R4 |
| Rear tire | 15.00-19.5 4PR |
| Front axle configuration | - |
| Wheelbase | 1595 mm 62.8 in. |
| Pump capacity | 5.3 gpm |
| Rated pressure | 2495 psi |
| Base weight | 306.4 kg |
|---|---|
| Leveling configuration | - |
| Bucket used | Materials - 1550 mm |
| Bucket weight | 93 kg 205 lb |
| Lift capacity at full height | Measured at pivot (U) 539 kg 1186 lb Measured at 500 mm ahead of pivot (V) 384 kg 845 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb |
| Boom breakout force | Measured at pivot (Y) 760 kg 1704 lb Measured at 500 mm ahead of pivot (Z) 537 kg 1204 lb |
| Bucket rollback force capacity | At maximum height (VV) 639 kg 1433 lb At 59-in. (1500-mm) lift height (XX) 809 kg 1814 lb At ground-level line (ZZ) 634 kg 1422 lb |
| Dimensions | Maximum lift height (A) 2140 mm 84 in. At full height - bucket level(B) 1979 mm 78 in. At full height - bucket dumped (C) 1596 mm 63 in. |
| Overall length (I+F), ft (m) | 2.9 m 9.5 ft |
| Overall height in carry position (J) | 161 mm 6 in. |
| Digging depth (H) | 131 mm 5 in. |
| Reach | At maximum height (D) 603 mm 24 in. At ground level - bucket level (F) 1369 mm 54 in. |
| Bucket angle | Dump angle, degrees (E) 43.8 degree (angle) Rollback angle, degrees (G) 31.4 degree (angle) Dump angle, ground 122 degree (angle) |
| Cycle times | Loader raise, seconds 3.31 seconds Loader lower, seconds 2.75 seconds Bucket dump, seconds 1.75 seconds Bucket rollback, seconds 1.88 seconds |
