2730

Technology should be simple to maximize full potential, autonomy shouldn’t be different. With autonomous farming solutions on the horizon, many customers are wondering what they should do to ensure the tillage equipment they are purchasing today will be READY to operate autonomously.

Autonomy Ready includes known and available integrated components, allowing customers to save time and money when adding the fully autonomous tillage solution hardware. The components included from the factory are:

• Implement lights
• Receiver mast
• Implement receiver harness

Please reference the chart below for model availability.

Model

Autonomy Ready Tillage (in-base)

Applicable Machine Widths

2430

X

All widths, except 14 ft, 0 in. to 17 ft, 8 in models

CC Series

X

All widths

HSD Series

X

All widths

2660VT

X

25 ft, 5 in. to 49 ft, 6 in. models

2230

X

All widths

2730

X

All widths

Universal StarFire™ 7500 receiver will need to be purchased separately for autonomous tillage operation.

As John Deere continues to develop the fully autonomous solution, additional requirements will be required. For the most up to date information on autonomy and additional key enablers, please visit the John Deere Autonomous Tillage Launch Center or John Deere Autonomy homepage. For more information on Autonomy Ready Large Tractors, please visit the Large Tractor Sales Manual.

Overview

With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By allowing you to respond to conditions as they change throughout the field, TruSet enables operators to generate a higher-quality tillage performance within the first pass.

Using a GreenStar™ display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.

Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.

John Deere has expanded TruSet features to bring even more functionality into the cab:

• Basket pressure and raise
• Gang angle
• Hydraulic active stabilizer wheels
• Hydraulic wing control
• Hydraulic fore-aft control

TruSet features and packages

TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.

TruSet Functions

Models:
Set-point depth
Basket pressure
Side-to-side leveling
Gang angle
Fore-aft
Wing down pressure
Stabilizer wheels

2230 Floating Hitch Field Cultivator
---
Select
Premium
---
---
---
---

2230 Level-Lift™ Field Cultivator
---
Select
---
---
---
---
---

2330 Mulch Finisher
---
Select
Premium**
---
Premium**
---
---

2630 Series Disks
---
Select
Premium
---
Premium**
---
Option

2633VT Vertical Tillage
---
Select
Premium
---
Premium**
---
---

2660VT Vertical Tillage 1-Section 4.27 m (14 ft 4 in.)
---
Select
Premium
Premium
Premium
---
---

2660VT Vertical Tillage 3-Section 7.8, 9.2, 10.1 m (25 ft 5 in., 30 ft 3 in., 33 ft 10 in.)
---
Select
Premium
Premium
Premium
Select**
Option

2660VT Vertical Tillage 5-Section 14 ft 5 in., 15.1 m (43 ft 6 in., 49 ft 6 in.)
---
Select
---
Premium
Premium
---
Option

2680H High-Speed Disk*
In base
---
---
---
---
---
---

2430C
---
---
Premium
---
---
---
---

2430 Drawn Chisel Plow
---
Select
Premium
---
---
---
---

2720 Disk Ripper
---
Select**
---
---
---
---
---

2730 Combo Ripper
---
Select**
---
---
---
---
---

*Currently not available in feature packaging

**New feature

NOTE: All Select package features are also included in the Premium package.

Basket pressure and raise (Select and Premium package)

• Integrated TruSet Tillage technology enables the operator to adjust their down pressure on the hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
• Easily raise your baskets with one touch to avoid certain areas of the field, whether you are wanting to check the tillage tool with the baskets up or avoid going through a wet spot in the field. Once you’re through the area and ready to lower the baskets, simply press the basket lower to resume your desired basket pressure.

Side-to-side leveling (Premium package)

• Operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet side-to-side is available as a field-installed option that can be ordered with the tillage tool or through aftermarket parts. The base TruSet Tillage system can also be upgraded to TruSet side-to-side with a conversion kit.

Gang angle (Premium package)

• With TruSet gang angle control, operators can adjust the gang angle on the go right from the cab. Adjusting the gang angle from 0 to 12 degrees provides more horizontal soil movement. The more aggressive the gang angle, the more soil mixing and burying of residue. Operators can also remove light ruts, tracks, and weeds at the most aggressive gang angle.

Fore-aft (Premium package)

• TruSet hydraulic fore-aft control enables operators to level the implement from the comfort of the tractor cab.

Wing down pressure (Premium package)

TruSet documentation

With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature allows producers to capture and analyze the tillage pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.

Operators can document data for the depth of their tillage tool along with rolling basket down pressure. By creating an as-applied map based off global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.

Additionally, the TELUS Agronomy Prescription Creator company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the tillage tools. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that command the implement to the desired depth and pressure settings for optimum agronomic results.

TELUS Agronomy Prescription Creator is a trademark of TELUS Agriculture and Consumer Goods

• TruSet hydraulic wing control transfers the weight from the mainframe to the wings to improve penetration in hard or heavy soils. In high-speed, shallow-depth tillage operations, maintaining a consistent depth across the tillage tool is critical to the consistency of the seedbed.

NOTE: TruSet hydraulic wing control pressure is only offered on three-section models.

Stabilizer wheels (additional factory option)

• Getting the best field performance is easier with hydraulic active stabilizer wheels. Choose the option to easily adjust the depth of the stabilizer wheels from the cab to match the overall depth as changes are made. This feature replaces the mechanical linkage on stabilizer wheels with a hydraulic cylinder.

NOTE: Stabilizer wheels are not offered on one-section models.

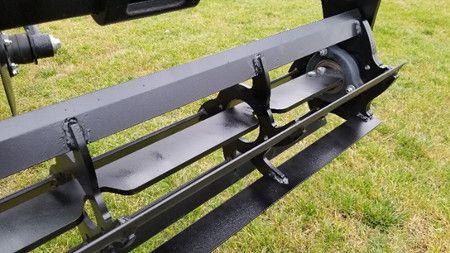

The internal basket scraper allows for a uniform field finish in wet conditions because the baskets do not need to be raised out of ground to avoid plugging and can stay in the ground 100 percent of the time.

The basket scraper is standard on 2730 Combination Rippers ordered with knife-edge baskets. Field install kits are available for existing units.

The 2730 Combination Ripper is available in five machine configurations:

• 7S24 – seven-standard rigid frame with 610-mm (24-in.) spacing
• 9S24 – nine-standard rigid frame with 610-mm (24-in.) spacing
• 9S24 – nine-standard folding frame with 610-mm (24-in.) spacing
• 11S24 – 11-standard folding frame with 610-mm (24-in.) spacing
• 13S24 – 13-standard folding frame with 610-mm (24-in.) spacing

Model

Working width

Transport width

Transport height

7S24 Rigid – Individual blades

4.27 m (14 ft)

6.07 m (19 ft, 11 in.)

2.49 m (8 ft, 2 in.)

7S24 Rigid – Disk gangs

4.27 m (14 ft)

5.74 m (18 ft, 10 in.)

2.49 m (8 ft, 2 in.)

9S24 Rigid – Individual blades

5.49 m (18 ft)

6.86 m (22.5 ft)

2.49 m (8 ft, 2 in.)

9S24 Rigid – Disk gangs

5.49 m (18 ft)

6.86 m (22.5 ft)

2.49 m (8 ft, 2 in.)

9S24 Folding – Individual blades

5.49 m (18 ft)

5.82 m (19 ft, 1 in.)

3.30 m (10 ft, 10 in.)

9S24 Folding – Disk gangs

5.49 m (18 ft)

5.82 m (19 ft, 1 in.)

3.35 m (11 ft)

11S24 Folding – Individual blades

6.71 m (22 ft)

5.59 m (18 ft, 4 in.)

3.81 m (12 ft, 6 in.)

11S24 Folding – Disk gangs

6.71 m (22 ft)

5.69 m (18 ft, 8 in.)

3.81 m (12 ft, 6 in.)

13S24 Folding – Individual blades

7.92 m (26 ft)

5.59 m (18 ft, 4 in.)

4.39 m (14 ft, 5 in.)

13S24 Folding – Disk gangs

7.92 m (26 ft)

5.69 m (18 ft, 8 in.)

4.19 m (13.75 ft)

The 7.9-m (26-ft) 2730 delivers a 44 percent increase in productivity over the largest 5.5-m (18-ft) John Deere 2700 Mulch Ripper. The 2730 fits into a tillage system that includes the following secondary tillage tools:

• 2230 Field Cultivator
• 2330 Mulch Finisher
• 2630 Series Disks
• 2660VT Variable Tillage tool
• 2680H High Performance Disk

The ability to set the true width of the 2730 into the track spacing setting on any TruSet™ compatible display delivers a 6 percent increase in productivity, allowing the operator to cover more acres in the same amount of time versus the competition. The true width is achieved through additional disk blades along with their tapered design to ensure consistent coverage and a level finish across the entire tillage pass.

The 2730 is a combination ripper that integrates four operational areas into one system. These four areas consist of disk blades, ripper shanks, rear closing disks, and finishing attachments. The ability to customize these components quickly, conveniently, and independently offers reduced cost of operation and maximum productivity.

The disk blades eliminate the need for multiple residue sizing passes into one single pass that reduces surface residue levels by 60 to 80 percent. The 2730’s ability to mix and bury more residue leads to faster soil warming in the spring all while reducing negative impacts of disease and insect pressure.

The ripper shanks accomplish full hardpan fracture across the entire soil profile with their 610-mm (24-in.) spacing to create a porous air and water environment for root development. Along with the ripper shank’s side-to-side spacing, it also features a 1270-mm (50-in.) fore-aft spacing that improves residue disbursement and contributes to the machines nearly plug-proof performance.

With TruSet™ or manual adjustment, the operator can set this system to leave a uniformly mounded profile covering each ripper track, or it can be adjusted to obtain a smooth, level surface ideal for minimum preparation for the next spring’s seedbed. With the walking tandem action, the closing system can follow the contour of the ground and eliminate plugs leading to a more consistent finish.

To achieve optimal field levelness and clod sizing, the operator can control the finishing attachment with in-cab, hydraulic controls. The finishing attachments can be set to constant down pressure, float, or in wet field conditions, rise completely out of the ground. This ensures the seedbed is best prepared for the least amount of pre-plant seedbed tillage passes before planting.

Typical percentage of residue cover remaining from the 2730 Combination Ripper is listed in the table below. These percentages do not consider variables such as the conditions of the residue, speed, and soil type.

NOTE: Percentages assume disk blades are operating at 152 mm (6 in.) of depth.

Starting residue cover (percent)

Remaining non-fragile* residue cover (percent)

Remaining fragile** residue cover (percent)

57-mm (2.25-in.) point

178-mm (7-in.) point

57-mm (2.25-in.) point

178-mm (7-in.) point

100

30

27

15

12

90

27

25

14

11

80

24

22

12

10

70

21

19

11

8

60

18

16

9

7

50

15

14

8

6

40

12

11

6

5

*Non-fragile residue includes crops like corn, sorghum, and wheat (more than 1586 L [45 bu]).

**Fragile residue includes crops: soybeans, edible beans, peas, wheat (less than 1586 L [45 bu]), sunflower, peanuts, and cotton.

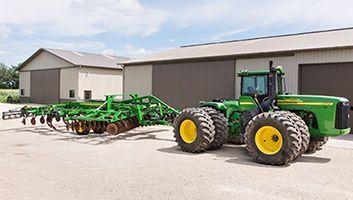

Adding the TruSet compatibility kit to the TruSet Tillage system enables operators of competitive tractors and older John Deere tractors to adjust their depth and pressure settings on the go from the cab.

With the TruSet compatibility kit, TruSet can be run on the following GreenStar™ system-ready tractors:

• John Deere 20 Series Tractors and older
• Competitive tractors

Like the TruSet Tillage system, the compatibility kit is available as a field-installed option that can be ordered with the 2730 Combination Ripper or through aftermarket parts. The compatibility kit includes an implement add-on valve and installation components.

All model years of 2730 can be retrofitted with TruSet. The following chart identifies the components needed to equip TruSet on a 2730 with a GreenStar ready tractor.

TruSet product
John Deere 30 Series
Tractors and newer
John Deere 20 Series
Tractors and older
Competitive tractors

TruSet Tillage System
Yes
Yes
Yes

TruSet compatibility kit
No
Yes
Yes

The 2730's large 660-mm (26-in.) disk blades are hydraulically adjustable and are set in a tandem-type configuration. The disks are available in either individual disk blades or gang-type configuration. The front and rear blades are set at an 18-degree angle on either 460-mm (18-in.) spacing for individual or 280-mm (11-in.) spacing for gang to provide an aggressive disking action.

The disks can be adjusted in-cab to be raised completely out of the ground or lowered to a maximum in-ground depth of 203 mm (8 in.). The disk blades operate in constant down-pressure, and the optimal operating depth can be set from the cab with TruSet™ or manually using stop collars on the hydraulic cylinder. The ability to independently adjust the front disks based on varying conditions allows the operator to optimize desired residue sizing and mixing.

The larger disks are designed of high-quality steel and made from a manufacturing process for extended performance provide the following benefits:

• Size and bury residue
• Level the soil profile
• Mix the surface residue
• Give full-width tillage up to 200 mm (8 in.) deep
• Reduce blade wear

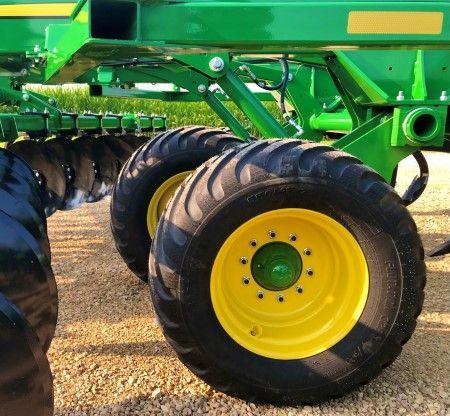

Walk-Over tandem wheels with larger tire options offer maximum support, stability, and flotation in the field. The staggered wheel design provides additional room for residue flow and obstacles all while providing a consistent working depth in uneven ground.

The Walk-Over tandem mainframe wheels come equipped with 57-mm (2.25-in.) plug-in spindles and eight-bolt hubs on the seven-standard models configured with VF320/70R15 mainframe tires, and 79-mm (3.125-in.) plug-in spindles and ten-bolt hubs on the seven-, nine-, 11-, and 13-standard models configured with either the 445/50R22.5 or 550/45-22.5 mainframe tires. The 11- and 13-standard models feature an active-hydraulic wing wheel to ensure a consistent operating depth with uniform leveling. These active-hydraulic wing wheels allow the 2730 machine to better follow the contour of the land versus rigid-mounted wing wheels on competitive models.

Available tires options are listed below:

Model

Code

Mainframe tire

Wing frame tire

Seven-standard 4.3 m
(14 ft) rigid

4620
4628
4631

VF320/70R15 144D*
550/45R22.5
445/50R22.5

---

Nine-standard 5.5 m
(18 ft) rigid

4628
4631

550/45R22.5
445/50R22.5*

---

Nine-standard 5.5 m
(18 ft) folding

4628
4631

550/45R22.5
445/50R22.5*

---

11-standard 6.7 m
(22 ft) folding

4629
4632

550/45-22.5
445/50R22.5*

VF285/70R19.5
VF285/70R19.5*

13-standard 7.9 m
(26 ft) folding

4629
4632

550/45-22.5
445/50R22.5*

VF285/70R19.5
VF285/70R19.5*

*Base tire option

With the option to upgrade to the market’s largest 10-bolt hub, heavy-duty 445/50R22.5 or high-flotation 550/45-22.5 tires on all models, the weight of the machine is evenly transferred to the ground to ensure stable transport and operation. All mainframe tires available produce maximum flotation and durability for in-field performance with 33 percent more tire-to-ground engagement than the competition.

The 2730 delivers improved residue flow by increasing the overall frame length and underframe clearance along with the fore-aft spacing of the ripper shanks.

The 1270-mm (50-in.) fore-aft spacing maximizes residue disbursement, and 953 mm (37.5 in.) of underframe clearance contributes to the machine's nearly plug-proof performance. The 2730 features 610-mm (24-in.) side-to-side spacing that accomplishes full hardpan fracture across the entire soil profile to create a porous air and water environment for root development and plant nutrient uptake.

For added durability and increased soil penetration, the 2730 boasts the largest and heaviest frame in the industry. The overall weight of each model ensures consistent machine performance. In high residue areas, 953 mm (37.5 in.) of underframe clearance results in reduced plugging and increased residue flow to maintain productivity and uptime.

Model

Weight*

7S24 Rigid – Individual blades

7167 kg (15,800 lb)

7S24 Rigid – Disk gangs

7756 kg (17,100 lb)

9S24 Rigid – Individual blades

9072 kg (20,000 lb)

9S24 Rigid – Disk gangs

10,070 kg (22,000 lb)

9S24 Folding – Individual blades

9435 kg (20,800 lb)

9S24 Folding – Disk gangs

10,433 kg (23,000 lb)

11S24 Folding – Individual blades

13,608 kg (30,000 lb)

11S24 Folding – Disk gangs

14,696 kg (32,400 lb)

13S24 Folding – Individual blades

14,288 kg (31,500 lb)

13S24 Folding – Disk gangs

15,558 kg (34,300 lb)

*Weights listed are for models equipped with no leveling attachment

Sealed, maintenance-free individual hub bearings on the 2730 Combination Ripper results in reduced downtime for the operator.

The sealed hub bearings increase productivity by reducing the amount of time needed to service the 2730 before operation and allowing operators to spend more of their valuable time in the field. The maintenance-free bearings have been extensively field tested to stand up in tough conditions, providing longer bearing life and reduced wear.

The 2730 employs a high-density polymer liner that allows the bearings to dynamically align the shaft in rough field conditions. The cast-bearing housing also allows for additional protection with the bearing wear guard built-in, which leads to increased reliability.

The 2730 features 78 percent fewer grease points than major competitors resulting in less, time-extensive maintenance and improving field productivity by up to 3 ha (7.5 acres) per day.

The 2730 comes equipped with hydraulically adjustable finishing attachments to achieve the desired field finish. The hydraulic rolling baskets can be set to three hydraulically controlled positions from the comfort of the cab. The heavy-duty coil tine harrow is rigid mounted to the frame and depth adjustments are made according to the rear closing disk system.

The finishing attachments come in a knife-edge or coil tine configuration and prepares field for a reduced amount of secondary tillage passes before planting. Below are the benefits of each attachment:

• Knife edge – better option in heavier, wet soils. Recommended basket for rocky soil types.
• Heavy-duty coil tine harrow – preferred finishing attachment in heavy, poorly drained soils.

The rolling baskets can be hydraulically set to three different operating positions based on field conditions:

1. Down pressure – a gauge on the front of the 2730 allows operators to set basket down pressure to ensure constant ground contact. Down pressure also allows for better sizing of slabs, clods, and root balls and will leave a level soil profile.
2. Float – the baskets can be put in the float position using the selective control valve (SCV) on the tractor. This allows the weight of the basket to roll over the ground.
3. Raised – the baskets can be lifted off the ground when encountering a wet area of the field to help eliminate any chance of plugging.

The active hydraulic down-pressure system allows the operator to increase the down pressure on finishing attachments up to 6205 kPa (900 psi). Adjustments are made with a dial located next to the gauge. Down pressure should be set using the gauge and operated from the cab.

The Equipment Mobile mobile application from John Deere is available on Apple® and Android™ smartphones. This application is a user-friendly system for operators to work their way through the initial recommended 2730 machine setup to optimize machine performance.

Equipment Mobile features a maintenance section and a notes section with photo functionality to give operators a premium experience when setting their machines. Equipment Mobile is also a great guide to use for settings and adjustments as field conditions differ to document changes made throughout the tillage season.

• Optimize operating settings
• Efficient machine setup
• Reduced power consumption through correct machine setup

Equipment Mobile is an impactful resource that can be used in addition to the operator’s manual settings guide that comes standard with all John Deere tillage equipment. Equipment Mobile is available on Apple App Store® and through Google Play™.
