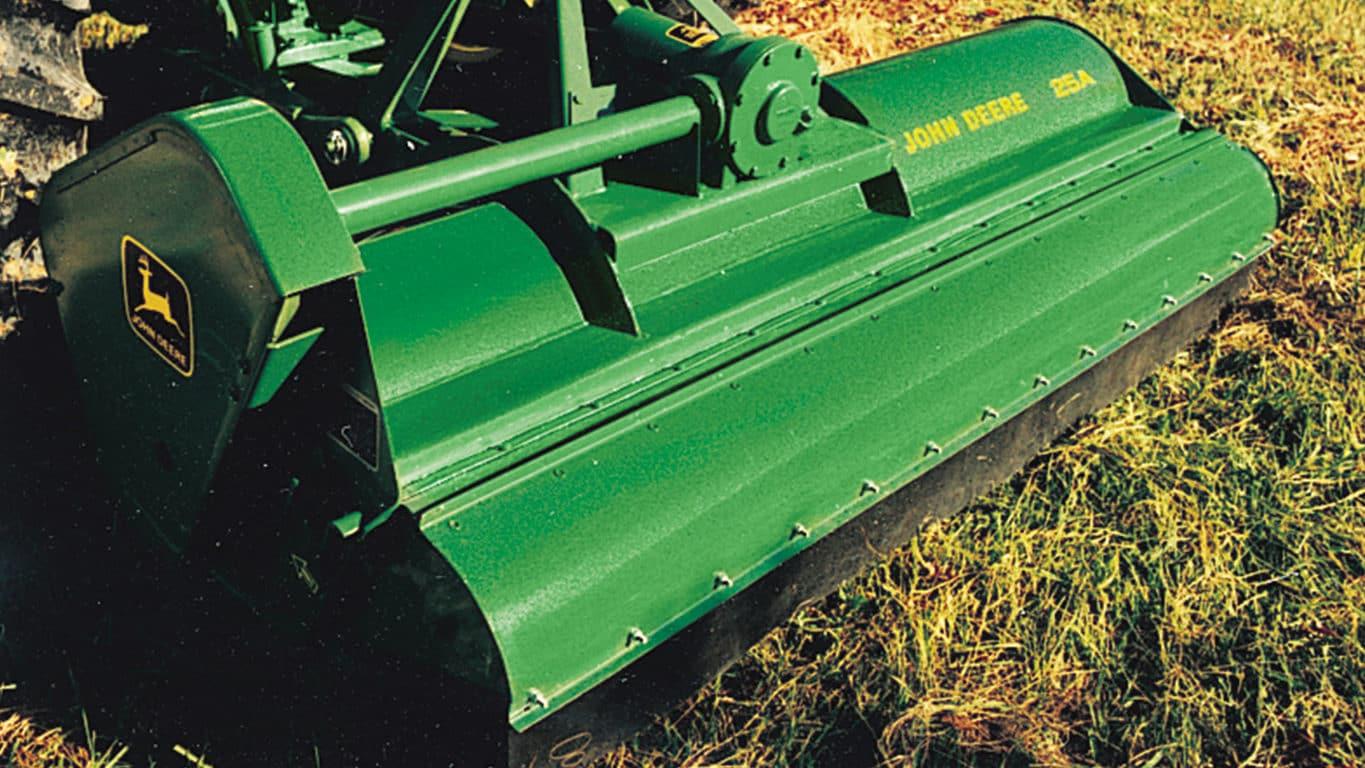

John Deere Flail Mowers & ShreddersFlail Mower


The roller can be set at four different cutting heights, from 1.3 cm to 12.7 cm (1/2 in. to 5 in.) The tractor's 3-point hitch upper link is used to regulate the cutting height between these positions.


All mowers use a heavy-duty gearbox with a continuous rating of 65 hp.
The power is transmitted through fully shielded, telescoping drive shafts with quick-attach and detach characteristics for easy hookup.


A three-bank, counterbalanced rotor is equipped with 36 individually replaceable knives:


The 25A hitch is now compatible with any Category 1 3-point hitch (with or without the iMatch™ Quick-Coupler system).
iMatch compatibility starts with serial number 644700.
| Cutting width | - |
|---|---|
| Cutting height | - |
| Blades - Number | - |
| Blades - Type | - |
| Rotor - Diameter | - |
| PTO | - |
| Tractor horsepower required - Minimum | - |
| Tractor horsepower required - Maximum | - |
| Quick-coupler compatible | - |
| Weight - Approximate | - |
| Cutting width | Centered Centered 1.98 m 78 in. |
|---|---|
| Cutting height | 13 to 127 mm 0.5 to 5 in. |
| Hood thickness | 3.2 mm 0.125 in. |
| Number | 72 (36 pairs) |
|---|---|
| Type | Smooth-cut, cupped-type |
| Tip speed | - |
| Speed | 1,850 rpm |
|---|---|
| Diameter | 114 mm 4.5 in. |
| PTO | 540 rpm |
|---|---|
| Gear case (cont. rating) | - |
| Belts | Single HC section |
| Gauge roller | 140 mm 5.5 in. |
| Minimum | 22 kW 30 hp |
|---|---|
| Maximum | 56 kW 75 hp |
| Quick-coupler compatible | Yes (Category 1 and 2) |
|---|
| Overall width | 2.53 m 99 in. |
|---|---|
| Overall height | 0.99 m 39 in. |
| Overall length | 1 m 40 in. |
| Approximate | 278 kg 612 lb |
|---|
