2510L

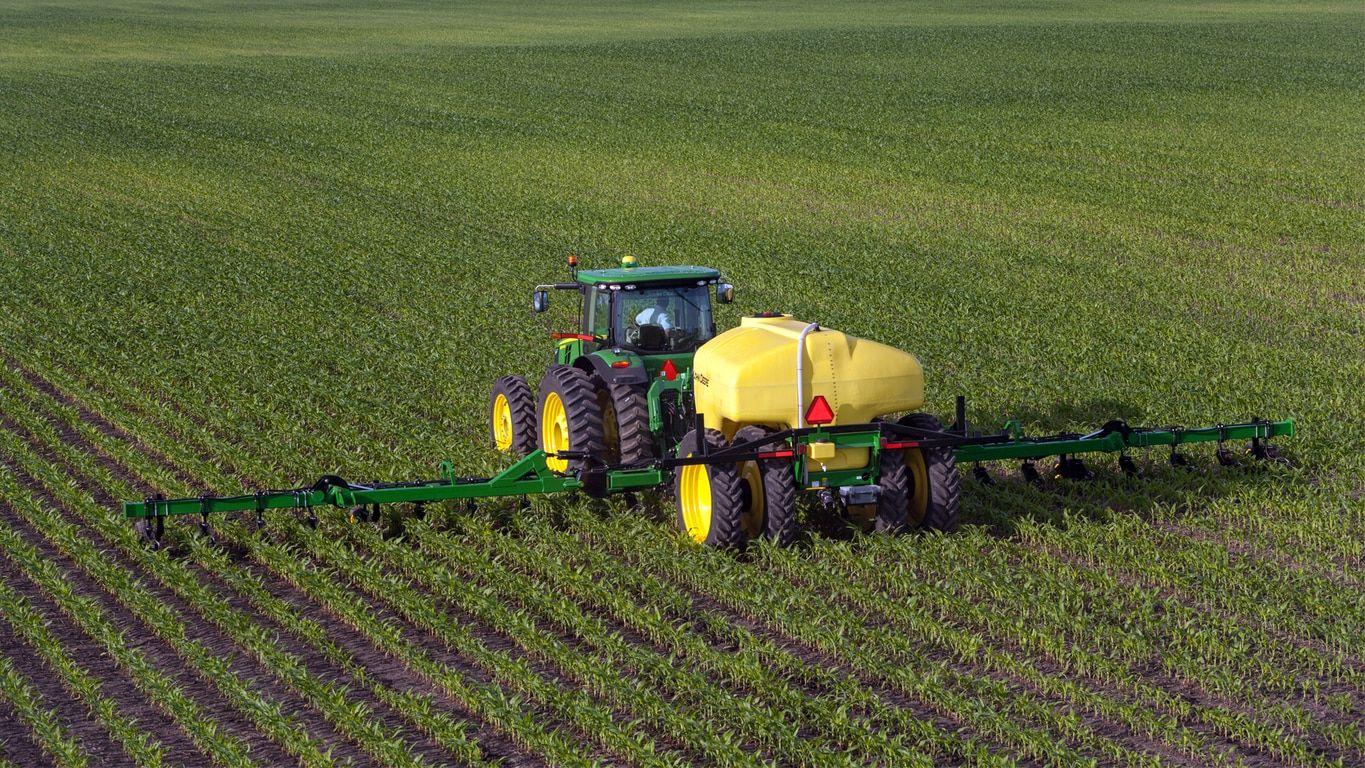

The John Deere 2510L offers several different sizes to fit any size operation, big or small.

Purpose

Liquid application

Model

2510L Vertical-Fold – 9.14 m (30 ft)

2510L Vertical-Fold – 12.2 m (40 ft)

Allows application when outer wing folded

Yes

Yes

Toolbar frame

17.8-cm x 17.8-cm (7-in. X 7-in.) single bar tube
17.8-cm x 17.8-cm (7-in. X 7-in.) single bar tube

Operating frame clearance

61 cm (24 in.)
61 cm (24 in.)

Spacing options

(see below)

76.2 cm (30 in.)
91.4 cm (36 in.)

50.8 cm (20 in.)
55.9 cm (22 in.)
76.2 cm (30 in.)
91.4 cm (36 in.)
96.5 cm (38 in.)
101.6 cm (40 in.)

Tank sizes

3974.7 L (1050 gal.)
5110.3 L (1350 gal.)
6813.7 L (1800 gal.)
3974.7 L (1050 gal.)
5110.3 L (1350 gal.)
6813.7 L (1800 gal.)

Gauge wheels

Two

Two

Tank fill

3974.7 L (1050 gal.) and 5110.3 L (1350 gal.): 5.1-cm (2-in.) bottom fill
6813.7 L (1800 gal.): 7.6-cm (3-in.) bottom fill
3974.7 L (1050 gal.) and 5110.3 L (1350 gal.): 5.2-cm (2-in.) bottom fill
6813.7 L (1800 gal.): 7.6-cm (3-in.) bottom fill

Coulters

Heavy-duty 50.8-cm (20-in.) coulters

Fertilizer delivery

Knives or injectors

Working depth

Up to 10.16 cm (4 in.)

Engine power requirement

104.4-119.3 kW (140 – 160)
119.3-141.7 kW (160 – 190 hp)

Rate Controller

GreenStar™ Rate Controller

Number of section shutoffs

Two or four

Two or four

Operating speed

8-12.9 km/h (5–8 mph)

Transport width

4.27 m (14 ft)

4.27 m (14 ft)

Transport height

4.06 m (13 ft, 4 in.)

4.06 m (13 ft, 4 in.)

Selective control valves (SCV) required

Three

Four

Spacing

50.8 cm (20 in.)

55.9 cm (22 in.)

76.2 cm (30 in.)

91.4 cm (36 in.)

96.5 cm (38 in.)

101.6 cm (40 in.)

Number of coulters

2510L Vertical-Fold
9.14 m (30 ft)

---

---

11 or 13

---

---

---

2510L Vertical-Fold
12.19 m (40 ft)

23 or 25

23

15 or 17

13

11 or 13

11 or 13

Code

Model

Description

5280

2510L Vertical-Fold – 9.14 m (30 ft)

11 coulters on 76.2-cm (30-in.) spacing

5281

2510L Vertical-Fold – 12.2 m (40 ft)

11 coulters on 91.4-cm (36-in.) spacing

5299

2510L Vertical-Fold – 12.2 m (40 ft)

11 coulters on 96.5-cm (38-in.) spacing

5282

2510L Vertical-Fold – 12.2 m (40 ft)

13 coulters on 91.4-cm (36-in.) spacing

528A

2510L Vertical-Fold – 12.2 m (40 ft)

13 coulters on 96.5-cm (38-in.) spacing

529B
2510L Vertical-Fold – 12.2 m (40 ft)
13 coulters on 101.6-cm (40-in.) spacing

5283

2510L Vertical-Fold – 12.2 m (40 ft)

11 coulters on 101.6-cm (40-in.) spacing

5284

2510L Vertical-Fold – 9.14 m (30 ft)

13 coulters on 76.2-cm (30-in.) spacing

5285

2510L Vertical-Fold – 12.2 m (40 ft)

15 coulters on 76.2-cm (30-in.) spacing

5286

2510L Vertical-Fold – 12.2 m (40 ft)

17 coulters on 76.2-cm (30-in.) spacing

5287

2510L Vertical-Fold – 12.2 m (40 ft)

23 coulters on 50.8-cm (20-in.) spacing

5288

2510L Vertical-Fold – 12.2 m (40 ft)

23 coulters on 55.9-cm (22-in.) spacing

5290

2510L Vertical-Fold – 12.2 m (40 ft)

25 coulters on 50.8-cm (20-in.) spacing

Plus Universal Display">G5Plus Universal Display

The 2510L comes standard with a GreenStar Rate Controller enabling full one-step integration of the GreenStar Display with the 2510L liquid system. This integration enables:

• Automatic rate control
• Field documentation
• Map-based prescriptions
• John Deere Section Control*

System pressure is monitored directly on the GreenStar Display and saves producers from having to monitor a manual gauge or keep it clean while in those dry, dusty fields.

John Deere Section Control reduces overlap, thus lowering input costs. The John Deere 2510L has up to five sections of control depending on size and configuration of the machine.

*John Deere Section Control activation required.

Model

Description

Number of Sections

2510L Vertical-Fold – 9.14 m (30 ft)

11 coulters on 76.2-cm (30-in.) spacing

Two

2510L Vertical-Fold – 12.19 m (40 ft)

11 coulters on 91.44-cm (36-in.) spacing

Two

2510L Vertical-Fold – 12.19 m (40 ft)

11 coulters on 96.52-cm (38-in.) spacing

Two

2510L Vertical-Fold – 12.19 m (40 ft)

13 coulters on 91.44-cm (36-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

13 coulters on 96.52-cm (38-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

11 coulters on 101.6-cm (40-in.) spacing

Four

2510L Vertical-Fold – 9.14 m (30 ft)

13 coulters on 76.2-cm (30-in.) spacing

Two

2510L Vertical-Fold 12.19 m (40 ft)

13 coulters on 101.6-cm (40-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

15 coulters on 76.2-cm (30-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

17 coulters on 76.2-cm (30-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

23 coulters on 50.8-cm (20-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

23 coulters on 55.88-cm (22-in.) spacing

Four

2510L Vertical-Fold – 12.19 m (40 ft)

25 coulters on 50.8-cm (20-in.) spacing

Five

Accurate fertilizer application is vital to increase fertilizer efficiency and effectiveness which will help a producer reach their yield goals. In addition to mainframe down pressure, the 2510L offers hydraulic wing down pressure and a flex-hinged design that ensures accurate fertilizer placement.

Hydraulic wing down pressure

The 2510L features hydraulic wing down pressure that applies constant down pressure on the wings to maintain constant depth and application.

Flex-wing hinge design

The flex hinge allows for 5 degrees up and down on the vertical fold:

• Ensure constant contact with the ground
• Increase performance in uneven terrain
• Maintain even working depth across the entire working width

When using side-dress application, an operator’s ability to minimize crop damage during application is paramount. The 2510L comes in base with features such as hydraulic wing kick, single reach tongue, and higher operating clearances that allow operators to reduce that damage and expand that application window.

Hydraulic wing kick

Hydraulic wing kick is a key feature that helps reduce crop damage. No more dipping into the crop and damaging corn when turning. When the operator lifts the toolbar during the turn, the wings will automatically kick up in order to increase its distance from ground to toolbar. This action allows the operator to have increased clearance on the wings, minimizing crop damage.

Single reach tongue

Unlike some fertilizer applicators with an A-frame tongue, the 2510L features a single reach tongue that is a single tube from the main cart frame to the hitch point. This allows:

• Sharper turning radius
• Reduced crop damage
• Better tractor to implement tracking

Operating toolbar frame clearance

A 60.96 cm (24 in.) operating clearance allows the operator to maneuver in the field while minimizing crop damage.

Model

2510L Vertical-Fold – 9.14 m (30 ft)

2510L Vertical-Fold – 12.2 m (40 ft)

Operating toolbar frame clearance

61 cm (24 in.)
61 cm (24 in.)

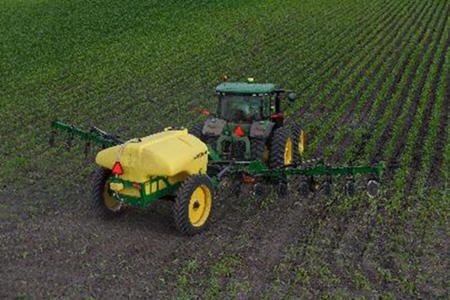

The 2510L offers an industry-exclusive tank design that gives the operator increased productivity and versatility. This patented compact stealth tank offers:

• Low center of gravity for increased stability
• Large trough-sloped sump for maximum cleanout
• Unique design that allows for operating in various row spacing from 60 in. to 144 in. depending on coulter spacing, tires, and wheels selection

Tank capacity

The large tank capacities and quick cleanout allows the operator to spend more time in the field and less time rinsing. Tank sizes that are offered for the following sizes of applicators:

Model

2510L Vertical-Fold – 9.14 m (30 ft) and 12.2 m (40 ft)

Tank sizes

3974.7 L (1050 gal.)

5110.3 L (1350 gal.)

6813.7 L (1800 gal.)

Tank fill

In order to reduce filling time, the 2510L offers 5.1-cm (2-in.) fill on 3974.7-L and 5110.3-L (1050- and 1350-gal.) tanks and 7.6-cm (3-in.) fill on 6813.7-L and 9085-L (1800- and 2400-gal.) tanks.

Tank size:

3974.7 L
(1050 gal.)

5110.3 L
(1350 gal.)

6813.7 L
(1800 gal.)

Size of tank fill:

5.1 cm (2 in.)

5.1 cm (2 in.)

7.6 cm (3 in.)
