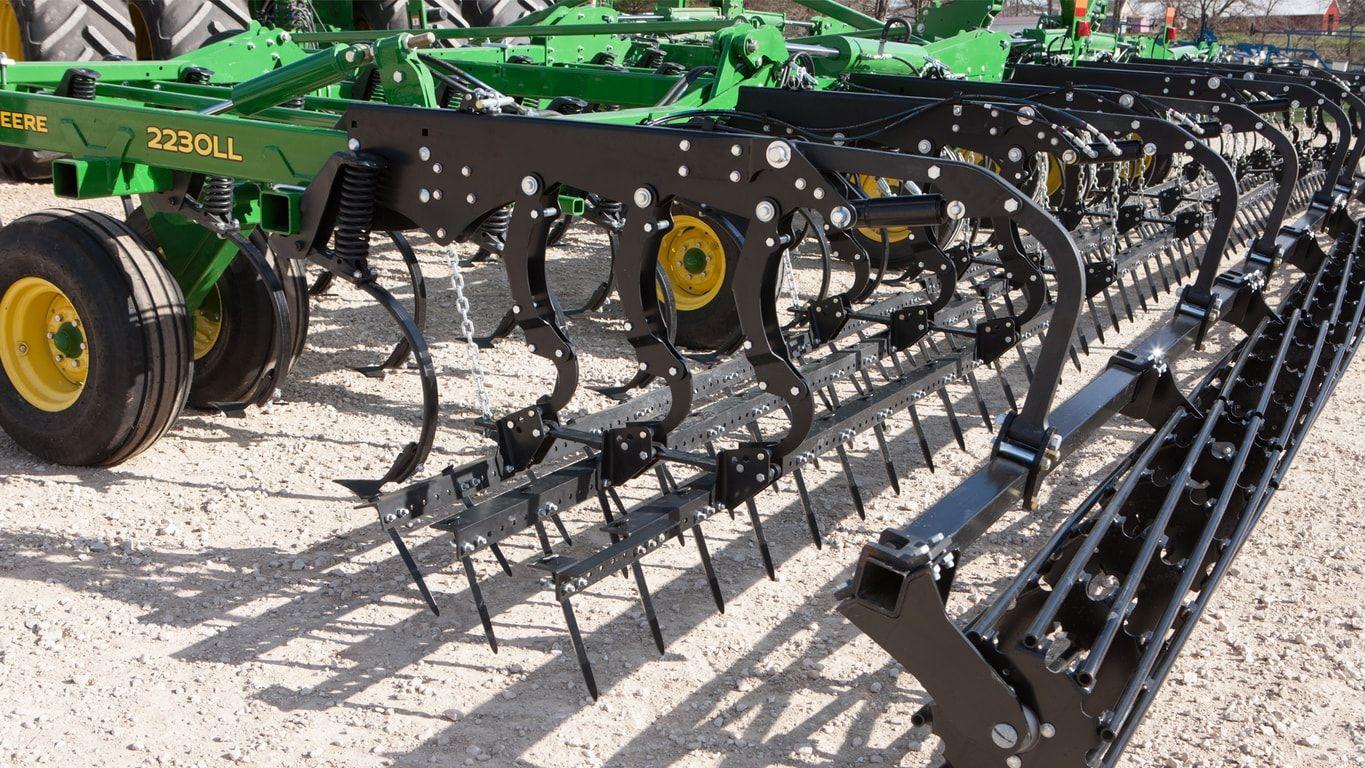

Tillage EquipmentLevel-Lift™ Field Cultivator
Technology should be simple to maximize full potential, autonomy shouldn’t be different. With autonomous farming solutions on the horizon, many customers are wondering what they should do to ensure the tillage equipment they are purchasing today will be READY to operate autonomously.
Autonomy Ready includes known and available integrated components, allowing customers to save time and money when adding the fully autonomous tillage solution hardware. The components included from the factory are:
Please reference the chart below for model availability.
Model
Autonomy Ready Tillage (in-base)
Applicable Machine Widths
2430
X
All widths, except 14 ft, 0 in. to 17 ft, 8 in models
CC Series
X
All widths
HSD Series
X
All widths
2660VT
X
25 ft, 5 in. to 49 ft, 6 in. models
2230
X
All widths
2730
X
All widths
Universal StarFire™ 7500 receiver will need to be purchased separately for autonomous tillage operation.
As John Deere continues to develop the fully autonomous solution, additional requirements will be required. For the most up to date information on autonomy and additional key enablers, please visit the John Deere Autonomous Tillage Launch Center or John Deere Autonomy homepage. For more information on Autonomy Ready Large Tractors, please visit the Large Tractor Sales Manual.
At 16-km/h (10-mph) working speeds, the 2230LL can cover up to 24.7 hectares (61 acres) per hour enabling producers to size their implement for their unique productivity and agronomic needs.
The 2230LL is available in sizes ranging from 7.8 m to 18.4 m (25 ft, 6 in. to 50 ft, 6 in.). Horsepower requirements range from 19.6 to 29.4 kW/m (8 to 12 hp-ft), depending on the soil, depth, and speed.
Working widths
Centerframe size
Productivity per hour
at 16 km/h (10 mph)
7.77 m (25 ft, 6 in.)
2.74 m (9 ft)
12.5 ha (31 acres)
9.60 m (31 ft, 6 in.)
3.35 m (11 ft)
15.4 ha (38 acres)
10.82 m (35 ft, 6 in.)
17.4 ha (43 acres)
13.25 m (43 ft, 6 in.) low transport
3.35 m (11 ft)
21.4 ha (53 acres)
Working widths
Centerframe size
Productivity per hour
at 16 km/h (10 mph)
14.17 m (46 ft, 6 in.)
2.74 m (9 ft)
22.7 ha (56 acres)
15.39 m (50 ft, 6 in.)
24.7 ha (61 acres)
The Level-lift hitch ensures a level operation through all operating depths. It also provides consistent gang and sweep depth fore to aft for thorough seedbed preparation. This quick, easy adjustment ensures a flat seedbed floor and level soil profile for planting.
The combination of the sweep and harrow functions promotes consistent and uniform chemical placement and mixing. The T-hitch enables easy turnbuckle adjustment for fast tractor changeover and quick implement leveling fore to aft.
The heavy-duty T-hitch allows for tighter turning, decreasing the number of headlands required for quick turns on the end. The T-hitch also houses the hoses and wiring harness, protecting them from crop and incidental tire contact.
Thanks to an updated frame design that enables true 152-mm (6-in.) split-the-middle shank spacing, the 2230 Field Cultivators can maintain consistent depth and evenly cover the field to achieve an optimal seedbed and manage weeds.
Even at high speeds and in tough field conditions, the TruPosition C-shanks with 91 kg (200 lb) of trip force minimize side-to-side movement and provide the operator better control of the soil profile for improved leveling capabilities.
These shanks provide a full tillage cut across the entire width of the implement. The shanks stay firmly planted in tough soils without quickly relieving. As a result, the soil is mixed completely and streaks are reduced. This helps producers maximize their productivity and create flat seedbeds for smooth planter operation and consistent seed depth.
The even 152-mm (6-in.) split-the-middle shank spacing enables the 2230 Field Cultivator to minimize the potential of remaining strips of weeds that survive the tillage pass. With a field cultivator pass just prior to planting/seeding, the crop can emerge into a weed-free field that gives it the best chance to reach canopy ahead of the weeds.
If some weeds emerge and a post-emergence herbicide is needed, weeds should be smaller and easier to control. As a result, the field cultivator pass helps keep weed management costs under control and helps preserve crop yield potential.
152-mm (6-in.) shank spacing base equipment on the 2230LL and 2230FH.
The ProFinish Leveling System offers a wide range of rear harrows to meet agronomic needs.
Depending on agronomic needs, producers have a choice of six rear harrow options included in the ProFinish Leveling System on the 2230 Field Cultivators.
Capabilities
Five-bar coil-tine harrow
Six-bar spike-tooth harrow
Three-bar coil-tine with round-bar basket
Three-bar coil-tine with flat-bar basket
Three-bar spike-tooth with round-bar basket
Three-bar spike-tooth with flat-bar basket
Level seedbed
Better
Better
Best
Best
Best
Best
Firm seedbed
Fair
Good
Best
Better
Best
Better
Handle residue
Best
Better
Best
Best
Better
Better
Break up clods
Good
Better
Better
Best
Better
Best
Handle moisture/wet soil
Best
Better
Good
Good
Good
Good
Handle rocks
Best
Good
Better
Good
Better
Good
Wing stabilizer wheels are recommended when producers encounter rolling ground conditions, terraces, or when the tool is operated at speeds above 11 km/h (7 mph).
Stabilizer wheel options and quantities are dependent on the model.
On the 2230LL Level-lift™ Field Cultivator, two mechanical wing stabilizer wheels are included on the outer wings for all five-section configurations. Both three-section and five-section configurations have the option to add stabilizer wheels to the inner wings.
On the 2230FH Floating Hitch Field Cultivator, the 12.95-m (42-ft, 6-in.) low-transport configuration has the option of adding a pair of mechanical stabilizer wheels. The active-hydraulic castering wheels are included in base equipment for the inner and outer wings on the 2230FH.
Radial and bias-ply tire options are available for mechanical stabilizer wheels and active-hydraulic castering wheels.
NOTE: Not all tire options are available for all configurations.
Configuration
Mechanical stabilizer wheels
Active-hydraulic castering wheels
Base quantity
Optional quantity
Base quantity
Optional quantity
2230LL
Three-section
---
2
---
---
Five-section
2
2
---
---
Low transport
---
2
---
---
2230FH
Three-section
---
---
4
---
Five-section
---
---
6
---
Low transport
---
2
4
---
Radial Tire Sizes
Main Frame
Wing Frame
2230LL
Three-section
N/A
IF280/80 R15
Six bolt
Five-section
IF280/70 R15
Six bolt
IF280/70 R15
Six bolt
Low transport
N/A
IF280/80 R15
Six bolt
2230FH
Three-section
IF280/70 R15
Six bolt
IF280/70 R15
Six bolt
Five-section
IF320/70 R15
Eight bolt
IF320/70 R15
Six bolt
Low transport
IF320/70 R15
Six bolt
IF320/70 R15
Six bolt
Bias Tire Sizes
Main Frame
Wing Frame
2230LL
Three-section
N/A
N/A
Five-section
9.5L-15 LD D
Six bolt
9.5L-15 LD D
Six bolt
Low transport
N/A
9.5L-15 LD D
Six bolt
2230FH
Three-section
11L-15 FI LR D
Six bolt
N/A
Five-section
12.5L-15 FI LR F
Eight bolt
12.5L-15 FI LR D
Six bolt
Low transport
12.5L-15 FI LR D
Six bolt
12.5L-15 FI LR D
Six bolt
A substantial rear hitch is available to give the 2230 the versatility to pull other rear attachments. The rear hitch includes:
The rear hitch is fully compatible with all 2230 rear harrow configurations available in the ProFinish™ Leveling System.
For customers with a seedbed finisher or rear attachment exceeding the above standard hitch ratings, it is recommended to install the heavy-duty rear hitch support. A heavy-duty rear hitch support is used in conjunction with the standard rear hitch and is compatible only with five-section 2230FH and 2230LL field cultivators.
Low power lines and bridges can be a concern when transporting equipment. The 2230 Field Cultivator lineup includes low-transport configurations as a solution for transportation concerns.
The 2230LL has two low-transport configurations. These implements fold like a five-section implement but operate like a three-section implement for improved transportability thanks to the addition of small outer wings that lock rigid for field operation.
Another advantage of the low-transport models is operation over uneven terrain. The low-transport models allow for the rigid wing to follow the contour of the ground.
Working width
Transport height
Transport width
13.3 m (43 ft, 6 in.)
4.4 m (14 ft, 4 in.)
5.5 m (18 ft)
| Working widths - 3-section | Option 1: 7.16 m (23.5 ft) Option 2: 7.77 m (25.5 ft) Option 3: 8.38 m (27.5 ft) Option 4: 8.99 m (29.5 ft) Option 5: 9.6 m (31.5 ft) Option 6: 10.2 m (33.5 ft) Option 7: 10.85 m (35.5 ft) Option 8: Low Transport - 11.73 m (38.5 ft) Option 9: Low Transport - 13.25 m (43.5 ft) |
|---|---|
| 5-section | Option 10: 12.95 m (42.5 ft) Option 11: 14.17 m (46.5 ft) Option 12: 15.4 m (50.5 ft) Option 13: 16 m (52.5 ft) Option 14: 17.22 m (56.5 ft) Option 15: 18.44 m (60.5 ft) |
| Rigid frame - 3-section | Option 1: 4.19 m (13.75 ft) Option 2: 4.19 m (13.75 ft) Option 3: 4.19 m (13.75 ft) Option 4: 4.19 m (13.75 ft) Option 5: 4.78 m (15.67 ft) Option 6: 4.78 m (15.67 ft) Option 7: 4.8 m (15.75 ft) Option 8: 4.27 m (14 ft) Option 9: 5.45 m (18 ft) |
| 5-section | Option 10: 4.27 m (14 ft) Option 11: 4.27 m (14 ft) Option 12: 4.27 m (14 ft) Option 13: 4.9 m (16.08 ft) Option 14: 4.9 m (16.08 ft) Option 15: 4.9 m (16.08 ft) |
| Transport height (without rear harrow) - 3-section | Option 1: 3.43 m (11.25 ft) Option 2: 3.66 m (12 ft) Option 3: 3.94 m (12.92 ft) Option 4: 4.22 m (13.83 ft) Option 5: 4.24 m (13.92 ft) Option 6: 4.52 m (14.83 ft) Option 7: 4.8 m (15.75 ft) Option 8: 4.11 m (13.5 ft) Option 9: 4.37 m (14.33 ft) |
| 5-section | Option 10: 3.83 m (12.58 ft) Option 11: 4.09 m (13.5 ft) Option 12: 4.37 m (14.33 ft) Option 13: 4.32 m (14.17 ft) Option 14: 4.62 m (15.17 ft) Option 15: 4.93 m (16.17 ft) |
| Operating depth - Inches | Up to 12.7 cm 5 in. |
| Miles per hour | 10 to 16 km/h 6 to 10 mph |
| Horsepower per foot | 19.6 to 29.4 kW/m 8 to 12 hp/ft |
| Standard spacing - Inches | Split-the-middle 15.2 cm 6 in. *22.9 cm 9 in. and S-tine *11.4 cm 4.5 in. options (*spacing may not be exact in all locations) |
| Type | Over-center fold |
|---|
| Rigid frame | - |
|---|---|
| Rigid over-center fold | - |
| 3-section | Option 1: 7.16 m (23.5 ft) Option 2: 7.77 m (25.5 ft) Option 3: 8.38 m (27.5 ft) Option 4: 8.99 m (29.5 ft) Option 5: 9.6 m (31.5 ft) Option 6: 10.2 m (33.5 ft) Option 7: 10.85 m (35.5 ft) Option 8: Low Transport - 11.73 m (38.5 ft) Option 9: Low Transport - 13.25 m (43.5 ft) |
| 5-section | Option 10: 12.95 m (42.5 ft) Option 11: 14.17 m (46.5 ft) Option 12: 15.4 m (50.5 ft) Option 13: 16 m (52.5 ft) Option 14: 17.22 m (56.5 ft) Option 15: 18.44 m (60.5 ft) |
| Rigid frame | - |
|---|---|
| 3-section | Option 1: 4.19 m (13.75 ft) Option 2: 4.19 m (13.75 ft) Option 3: 4.19 m (13.75 ft) Option 4: 4.19 m (13.75 ft) Option 5: 4.78 m (15.67 ft) Option 6: 4.78 m (15.67 ft) Option 7: 4.8 m (15.75 ft) Option 8: 4.27 m (14 ft) Option 9: 5.45 m (18 ft) |
| 5-section | Option 10: 4.27 m (14 ft) Option 11: 4.27 m (14 ft) Option 12: 4.27 m (14 ft) Option 13: 4.9 m (16.08 ft) Option 14: 4.9 m (16.08 ft) Option 15: 4.9 m (16.08 ft) |
| Rigid frame | - |
|---|---|
| Rigid over-center fold | - |
| 3-section | Option 1: 3.43 m (11.25 ft) Option 2: 3.66 m (12 ft) Option 3: 3.94 m (12.92 ft) Option 4: 4.22 m (13.83 ft) Option 5: 4.24 m (13.92 ft) Option 6: 4.52 m (14.83 ft) Option 7: 4.8 m (15.75 ft) Option 8: 4.11 m (13.5 ft) Option 9: 4.37 m (14.33 ft) |
| 5-section | Option 10: 3.83 m (12.58 ft) Option 11: 4.09 m (13.5 ft) Option 12: 4.37 m (14.33 ft) Option 13: 4.32 m (14.17 ft) Option 14: 4.62 m (15.17 ft) Option 15: 4.93 m (16.17 ft) |
| Inches | Up to 12.7 cm 5 in. |
|---|
| Miles per hour | 10 to 16 km/h 6 to 10 mph |
|---|
| Horsepower per foot | 19.6 to 29.4 kW/m 8 to 12 hp/ft |
|---|
| Standard | Single-point depth control in base |
|---|---|
| Options | Add TruSet™ in-cab depth/pressure control |
| Standard | 2 SCVs (lift and fold) at 17,237 kPa 2,500 psi for optimum raise times, additional SCV needed for optional rolling basket down pressure |
|---|---|
| Options | - |
| Standard | 9-pin connector for warning lights |
|---|---|
| Options | If adding TruSet, tractor must be GreenStar™ system-ready |
| Type | Level-lift: 15.2x25.4 cm 6x10 in. T-hitch, cast-steel hitch link, optional rear hitch |
|---|
| Tubing | Rank tubes: 10.2x10.2 cm 4x4 in. Center frame fore-aft tubes - For 5 rank: 5.1x15.2 cm 2x6 in. Center frame fore-aft tubes - For 6 rank: 5.1x20.3 cm 2x8 in. Wing fore-aft tubes: 5.1x15.2 cm |
|---|---|
| Number of ranks | 3-section Option 1: 9-ft (2.7-m) center frame with 5-rank tube frame Option 2: 9-ft (2.7-m) center frame with 5-rank tube frame Option 3: 9-ft (2.7-m) center frame with 5-rank tube frame Option 4: 9-ft (2.7-m) center frame with 5-rank tube frame Option 5: 11-ft (3.35 m) center frame with 5-rank tube frame Option 6: 11-ft (3.35 m) center frame with 5-rank tube frame Option 7: 11-ft (3.35 m) center frame with 5-rank tube frame Option 8: 9-ft (2.74 m) center frame with 5-rank tube frame Option 9: 11-ft (3.35 m) center frame with 5-rank tube frame 5-section Option 10: 9-ft (2.7-m) center frame with 5-rank tube frame Option 11: 9-ft (2.7-m) center frame with 5-rank tube frame Option 12: 9-ft (2.7-m) center frame with 5-rank tube frame Option 13: 11-ft (3.35 m) center frame with 5-rank tube frame Option 14: 11-ft (3.35 m) center frame with 6-rank tube frame Option 15: 11-ft (3.35 m) center frame with 6-rank tube frame |
| Fore-and-aft clearance | On 9-ft and 11-ft (2.7-m and 3.4-m) center frames: 134 in. 3.4 m On 15-ft (4.6-m) center frames: 164 in. 4.2 m |
| Underframe clearance | 61 cm 24 in. |
| Inches | Split-the-middle 15.2 cm 6 in. *22.9 cm 9 in. and S-tine *11.4 cm 4.5 in. options (*spacing may not be exact in all locations) |
|---|
| Option 1 | Spec 1.9x4.45x61 cm 0.75x1.75x24 in. Trip force 90.7 kg 200 lb Trip height 25.4 cm 10 in. Maximum operating depth 12.7 cm 5 in. Underframe clearance 61 cm 24 in. Spacing True 15.2 cm 6 in. spilt-the-middle spacing TruPosition™ C-shank standard |
|---|---|
| Option 2 | Spec 1.59x4.45 cm 0.625x1.75 in. Trip force 68 kg 150 lb Trip height 25.4 cm 10 in. Maximum operating depth 12.7 cm 5 in. Underframe clearance 61 cm 24 in. Spacing 15.2 cm 6 in. or 22.9 cm 9 in. TruPosition |
| Option 3 | Spec 1.27x4.45 cm 0.5x1.75 in. Underframe clearance 61 cm 24 in. Spacing 11.4 cm 4.5 in. S-tine |
| Options | Wide variety of sweeps, shovels, and points |
|---|
| Type | Center frame tires on Walk-Over tandem wheels (bias-ply tire option available) |
|---|---|
| Options | - |
| 3-section | Option 1: (4) IF280/70 R15 134D tires Option 2: (4) IF280/70 R15 134D tires Option 3: (4) IF280/70 R15 134D tires Option 4: (4) IF280/70 R15 134D tires Option 5: (4) IF280/70 R15 134D tires Option 6: (4) IF280/70 R15 134D tires Option 7: (4) IF280/70 R15 134D tires Option 8: (4) IF320/70 R15 144D tires Option 9: (4) IF320/70 R15 144D tires |
| 5-section | - |
| Type | Wing frame tires on Walk-Over tandem wheels (radial tire option available) |
|---|---|
| Options | - |
| 3-section | Option 1: (4) 11L-15 FI LR D tires Option 2: (4) 11L-15 FI LR D tires Option 3: (4) 11L-15 FI LR D tires Option 4: (4) 11L-15 FI LR D tires Option 5: (4) 11L-15 FI LR D tires Option 6: (4) 11L-15 FI LR D tires Option 7: (4) 11L-15 FI LR D tires Option 8: (4) 12.5-L-15 FI LR D tires Option 9: (4) 12.5-L-15 FI LR D tires |
| 5-section | Option 10: (4) 12.5-L-15 FI LR D tires Option 11: (4) 12.5-L-15 FI LR D tires Option 12: (4) 12.5-L-15 FI LR D tires Option 13: (4) 12.5-L-15 FI LR D tires Option 14: (4) 12.5-L-15 FI LR D tires Option 15: (4) 12.5-L-15 FI LR D tires |
| Type | Mechanical stabilizer wheels and tires (radial tire option available) |
|---|---|
| Options | - |
| 3-section | Option 1: Optional - (2) 9.5L-15 FI LR D tires Option 2: Optional - (2) 9.5L-15 FI LR D tires Option 3: Optional - (2) 9.5L-15 FI LR D tires Option 4: Optional - (2) 9.5L-15 FI LR D tires Option 5: Optional - (2) 9.5L-15 FI LR D tires Option 6: Optional - (2) 9.5L-15 FI LR D tires Option 7: Optional - (2) 9.5L-15 FI LR D tires Option 8: Optional - (2) 9.5L-15 FI LR D tires Option 9: Optional - (2) 9.5L-15 FI LR D tires |
| 5-section | Option 10: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 11: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 12: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 13: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 14: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 15: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 16: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires Option 17: Base - (2) 9.5L-15 FI LR D tires; optional additional (2) 9.5L-15 FI LR D tires |
| Spike tooth harrow option 1 | Rank spacing 30.5 cm 12 in. Spike spacing 26.7 cm 10.5 in. Effective spacing 3-bar: 8.89 cm 3.5 in. 6-bar: 4.45 cm 1.75 in. Spike dimension 1.9x1.9x30.5 cm 0.75x0.75x12 in. Angle 23 to 51 degree (angle) Adjustments Tool-free three-position pin adustment 6-bar spike-tooth harrow |
|---|---|
| Spike tooth harrow option 2 | - |
| Spike tooth harrow option 3 | - |
| Coil tine harrow option 1 | Rank spacing 38.1 cm 15 in. Tine spacing 22.9 cm 9 in. Effective spacing 5.72 cm 2.25 in. Tine dimensions Length: 40.6 cm 16 in. Angle 36 to 75 degree (angle) Adjustments Tool-free four-position pin adjustments ranging from 36 to 75 degree (angle) 4-bar coil-tine harrow |
| Coil tine harrow option 2 | - |
| Rolling basket harrow option 1 | Rank spacing 38.1 cm 15 in. Effective spacing 7.6 cm 3 in. Spike/tine dimensions Length: 40.6 cm 16 in. Basket diameter 35.6 cm 14 in. Bar type Round Bar size Round bar: 2.54 cm 1 in. Wall thickness: 0.32 cm 0.125 in. Bearings Maintenance free Adjustments Tool-free harrow adjustments ranging from 36 to 75 degree (angle) and hydraulically adjustable baskets up to 5,516 kPa 800 psi 3-bar coil-tine with round-bar basket |
| Rolling basket harrow option 2 | Rank spacing 38.1 cm 15 in. Effective spacing 7.6 cm 3 in. Spike/tine dimensions Length: 40.6 cm 16 in. Bar type Flat Bar size 3.81x0.64 cm 1.5x0.25 in. Bearings Maintenance free Adjustments Tool-free harrow adjustments ranging from 36 to 75 degree (angle) and hydraulically adjustable baskets up to 5,516 kPa 800 psi 3-bar coil tine with flat-bar basket |
| Rolling basket harrow option 3 | Spike/tine spacing 26.7 cm 10.5 in. Effective spacing 4.45 cm 1.75 in. Spike/tine dimensions 1.9x1.9x30.5 cm 0.75x0.75x12 in. Adjustments Tool-free harrow adjustments ranging from 23 to 51 degree (angle) and hydraulically adjustable baskets up to 5,516 kPa 800 psi 3-bar spike tooth with round-bar basket |
| Rolling basket harrow option 4 | Spike/tine spacing 26.7 cm 10.5 in. Effective spacing 4.45 cm 1.75 in. Spike/tine dimensions 1.9x1.9x30.5 cm 0.75x0.75x12 in. Adjustments Tool-free harrow adjustments ranging from 23 to 51 degree (angle) and hydraulically adjustable baskets up to 5,516 kPa 800 psi 3-bar spike tooth with flat-bar basket |
| Description | - |
|---|---|
| Telescoping | - |
| Tongue weight rating | Varies by working width Vertical weight: 680.4 kg 1,500 lb |
| SS | - |
| Hydraulic hoses and couplers | Two circuits provided |
