Whether the operator is new or experienced to loader operations, it requires skill to maintain an even load and reduce the amount of material lost. With the MSL loader offering for 1 Family, 2 Family, 3D, and 3E Tractors, anyone can operate their loader with ease and confidence. With the MSL loader, you will notice:
This loader is the first of its kind in North America for Compact Utility Tractors and can make any loader task easier and quicker to accomplish.

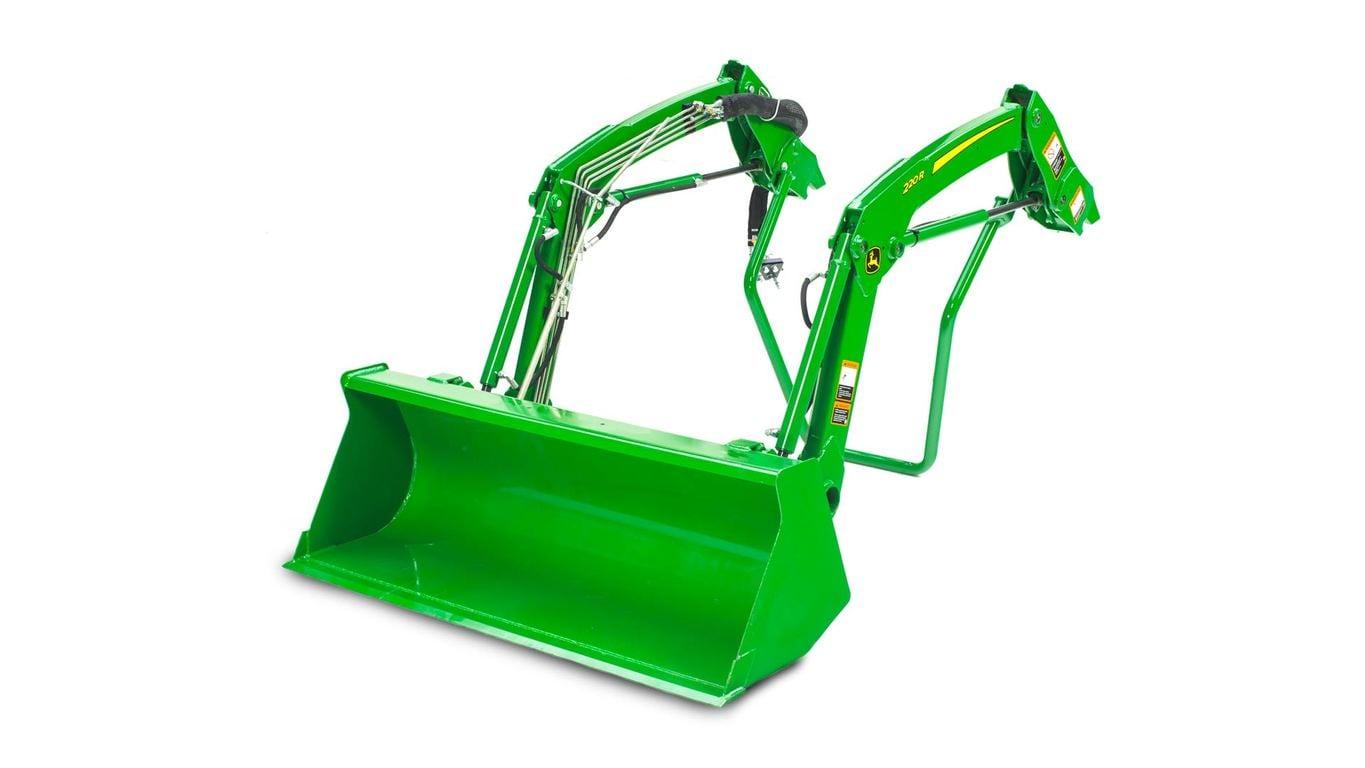

The 220R loader is designed to easily attach to and detach from the tractor without tools.

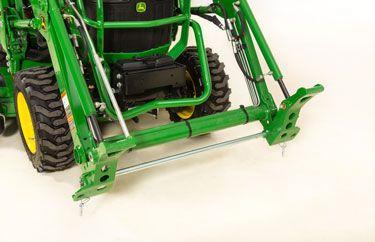

The parking stand is attached to the mast and lowers into position by moving the joystick to the raise position once the latches are opened to allow the loader to move to the park position.

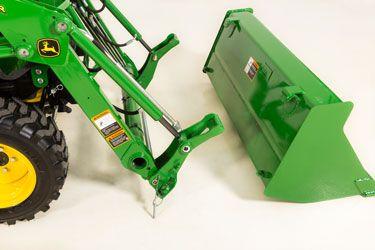

The Quik-Change attachment carrier allows one person to quickly change attachments without the use of tools. Simply roll the attachment back with the boom slightly off the ground, remove the retaining pins, and then roll the attachment forward and lower to the ground.
This CUT Carrier is base equipment on the 120E and 120R loaders.
To connect to another attachment simply align the attachment carrier with the hooks of the attachment, raise the boom for the carrier to engage the hooks of the attachment and rollback the attachment carrier.
Then install the retaining pins and the carrier is ready to work.
This provides a very effective means of changing attachments without having to purchase an option to facilitate changing attachments.
The pivot pins are made with a unique offset head design to eliminate cross-pins and cotter pins to retain the pin. Instead, the pin is held in place with a nut, which is very simple to install as it eliminates any alignment issues. The offset head of the pin prevents rotation of the pin and reduces pin wear.
A lubrication groove in the cylinder pin provides a path for grease to ensure proper lubrication of the cylinder pin and long life.
End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
| Maximum lift height | 2160 mm 85 in. |
|---|---|
| Lift capacity at full height | Measured at pivot 509 kg 1120 lb Measured at 500 mm ahead of pivot 365 kg 803 lb |
| Boom breakout force | Measured at pivot 886 kgf 1949 lbf Measured at 500 mm ahead of pivot 618 kgf 1360 lbf |
| Bucket rollback force capacity | At ground-level line 972 kgf 2138 lbf |
| Clearance at full height - bucket dumped | 1667 mm 66 in. |
| Dump angle, degrees | 36 degree (angle) |
| Rollback angle, degrees | 34 degree (angle) |
| Model | 2032R, 2038R |
|---|---|
| Front tire | 23x8.50-14 4PR R4 |
| Rear tire | 14-17.5 6PR R4 |
| Front axle configuration | - |
| Wheelbase | 1725 mm 68 in. |
| Pump capacity | 20.2 L/min 5.3 gpm |
| Rated pressure | 17.23 MPa 2499 psi |
| Base weight | 330.9 kg 729 lb |
|---|---|
| Leveling configuration | Non-Self Leveling |
| Bucket used | 1450 mm 57 in. |
| Bucket weight | 88 kg 194 lb |
| Lift capacity at full height | Measured at pivot 509 kg 1120 lb Measured at 500 mm ahead of pivot 365 kg 803 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot 589 kg 1296 lb Measured at 500 mm ahead of pivot 445 kg 979 lb |
| Boom breakout force | Measured at pivot 886 kgf 1949 lbf Measured at 500 mm ahead of pivot 618 kgf 1360 lbf |
| Bucket rollback force capacity | At maximum height 1044 kgf 2297 lbf At 59-in. (1500-mm) lift height 1302 kgf 2864 lbf At ground-level line 972 kgf 2138 lbf |
| Dimensions | Maximum lift height 2160 mm 85 in. At full height - bucket level 1999 mm 79 in. At full height - bucket dumped 1667 mm 66 in. |
| Overall length | 3076 mm 121 in. |
| Overall height in carry position | - |
| Digging depth | 149 mm 6 in. |
| Reach | At maximum height 756 mm 30 in. At ground level - bucket level 1351 mm 51 in. |
| Bucket angle | Dump angle, degrees 36 degree (angle) Rollback angle, degrees 34 degree (angle) Dump angle, ground 115 degree (angle) |
| Cycle times | Loader raise, seconds 3.19 seconds Loader lower, seconds 1.94 seconds Bucket dump, seconds 4.76 seconds Bucket rollback, seconds 2.91 seconds |
