204SP

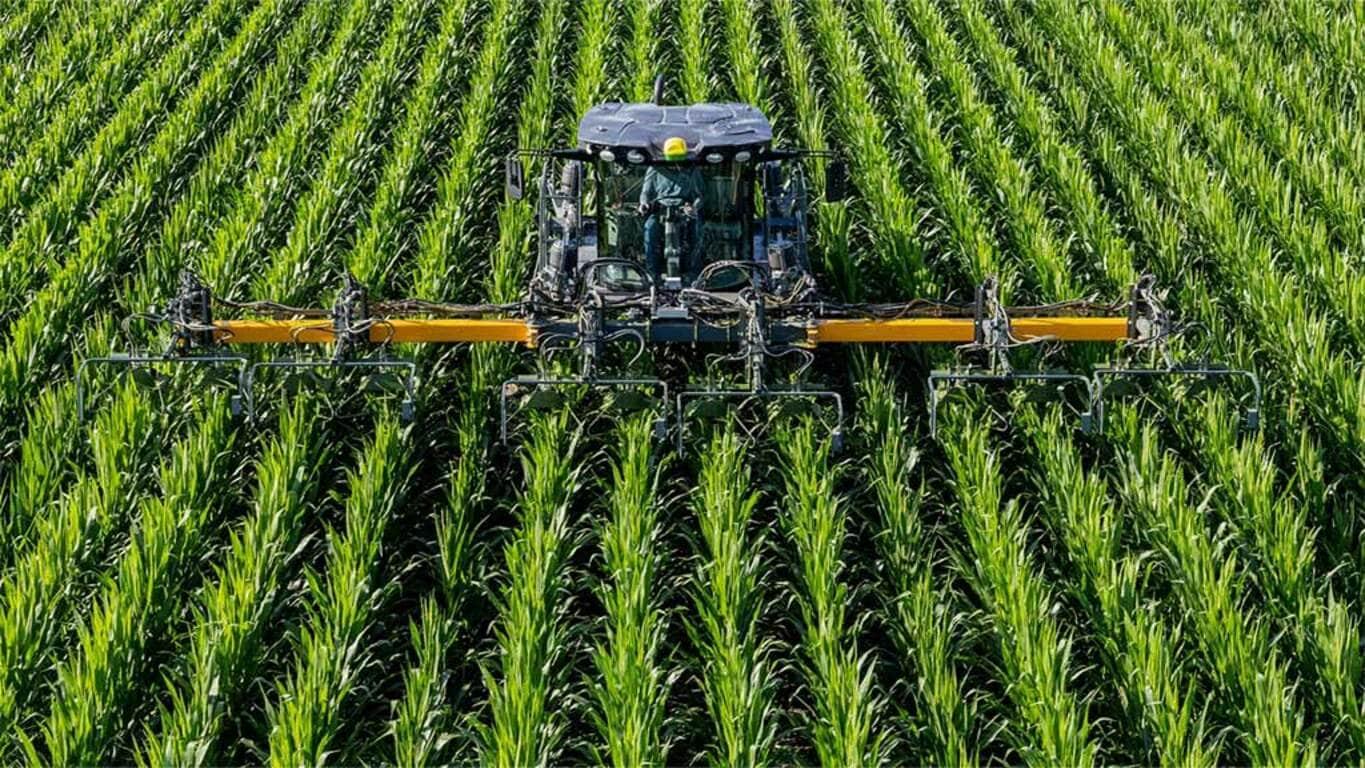

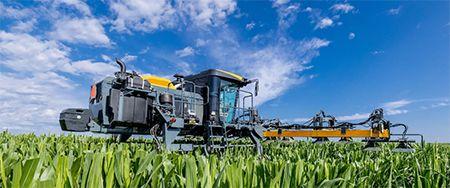

Perform detasseling in tall varieties of seed corn with 195.6 cm (77in.) of underframe clearance on the Hagie™ 204SP Detasseler.

• High underframe clearance allows you to operate in taller crop without damaging the plant tissue.

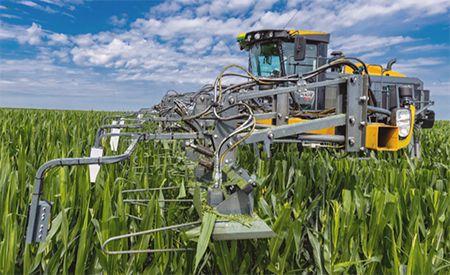

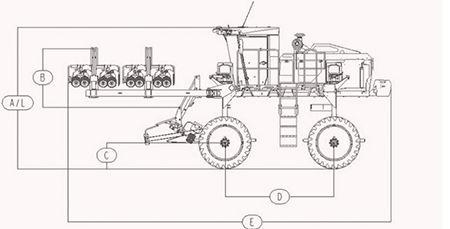

Experience a wide range of detasseling heights with a 167.6-cm (66-in.) lift arm range. The lift arm feature provides adjustments with the upper and lower position for detasseling capability that ranges from 0.63 m up to 2.5 m (2 ft up to 8.4 ft) above ground.

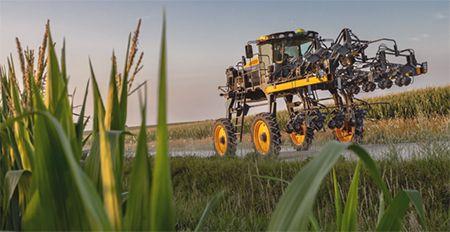

Timing is critical when it comes to detasseling. The 6965.8-kg (15,357-lb) Hagie™ 204SP Detasseler features a lightweight design, allowing you to enter the field any day to perform your detasseling needs.

The Hagie™ 204SP Detasseler features active air suspension.

Maximize operator comfort and improve operational functions of the detasseler attachments with the active air suspension on the Hagie 204SP Detasseler. In the field or on the road, active air suspension makes for a remarkably smooth ride.

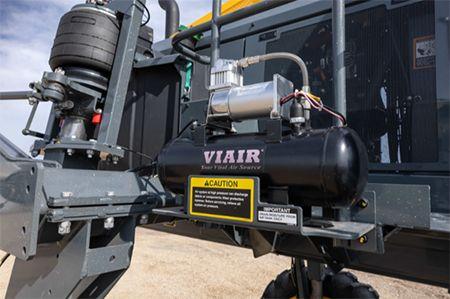

An electric air compressor and air bag linkage enhances the air-ride suspension by making sure there is always the right amount of air in the suspension bags, from roading to operating in different field conditions.

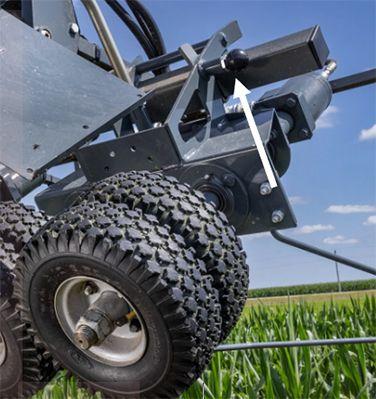

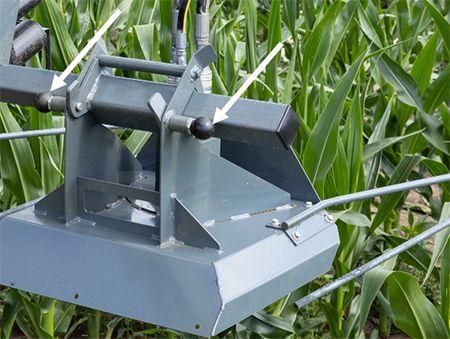

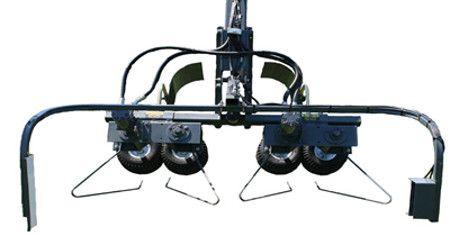

No tools are needed to quickly change from cutting to pulling attachments with just two locking pins on each head.

• Increase productivity by easily converting from cutting to pulling attachments
• No tools required to change from cutters to pullers
• Hydraulic quick connect couplers on the head attachments also increase the ease of changeover from cutters to pullers.

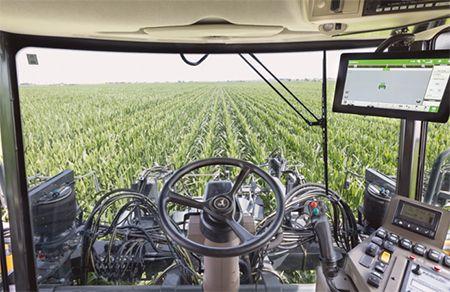

John Deere AutoTrac RowSense gives the Hagie 204SP detasseler the ability to steer itself. The result? Reduce operator fatigue and the ability to relax and focus more on the quality of detasseling job the machine is doing. With the G5 Universal Display, StarFire™ 7500 antenna, AutoTrac Universal 300, and RowSense feelers, the Hagie 204SP Detasseler is ready to AutoTrac through the field in the long hours of detasseling season.

Benefits

• Less strain on the operator
• Hands free operation
• Less crop damage
• Reduce fatigue

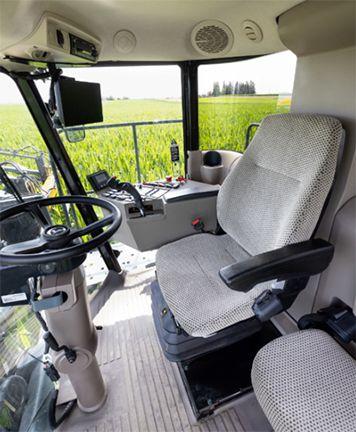

Detasseler cab

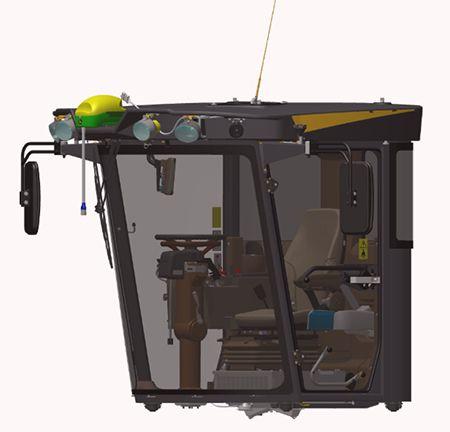

The Hagie detasseler comes with a cab that offers a comfortable and quiet working environment with plenty of visibility, space, and features. For those long hours required during the detasseling season, the John Deere cab new to the Hagie 204SP provides improved operator comfort to reduce fatigue in the field. The cab features a Hagie designed side console that still provides simple detasseling controls.

Cab features

• Rear window tint
• Improved visibility
• Operator’s seat with air suspension
• Folding instructor seat
• AM/FM radio with Bluetooth® wireless functionality
• Tilt steering column
• Two 12-V power outlets
• Sun visor
• Halogen lights
• Hagie side console

Operators can easily adjust features and controls in the 204SP Detasseler operator’s station to maximize comfort and keep the machine performing throughout the field.

Bluetooth is a trademark of Bluetooth SIG, Inc.

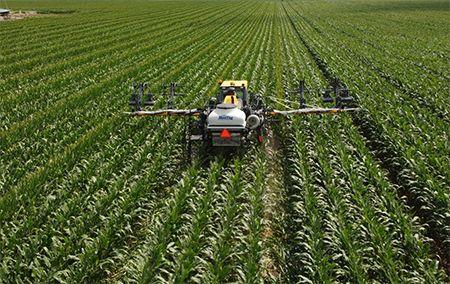

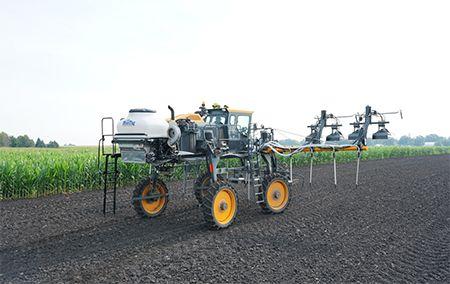

Boost the versatility of the Hagie 204SP Detasseler and optimize soil health with a cover crop seeding solution. The Montag 2108 Cover Crop System is an engineered solution specifically designed to be compatible with model year 2015 to 2024 Hagie 204SP Detasselers.

• Increases uptime and asset utilization, to reduce the cost of operation via single pass to apply nutrients and/or cover crop seed at the same time as male row destroying or as stand-alone seeding option
• Improve soil health, reduced soil erosion, and water quality improvements from the use of cover crop practices

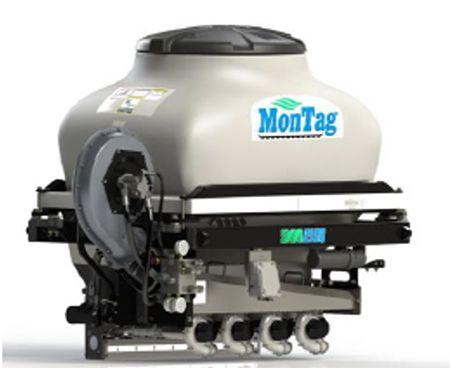

The Montag cover crop system features the Gen 2 2108 single bin design totaling 1-m3 (35-cu ft) capacity, sized to fit the operation. The system is controlled with Montag MTC200 controller for a simple, user-friendly operator interface.

• Available as stand-alone seeding option
• Configurable with up to eight primary meters - flexible base able to meet multiple application requirements for 12 (9.1 m [30 ft]) to 15 (11.43 m [37.5ft]) rows

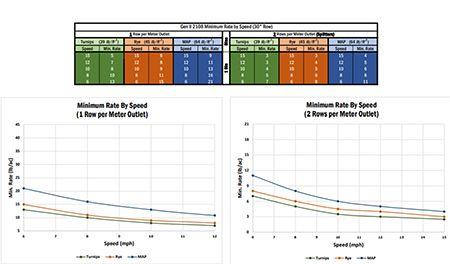

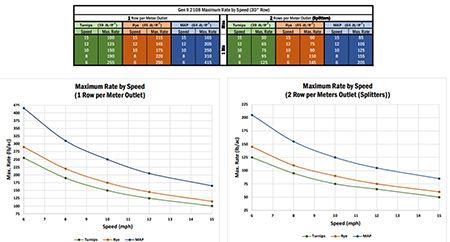

When performing seeding applications at 16.1 km/h (10 mph), producers can apply 2.3 kg (5 lb) to 40.8 kg (90 lb) of seed per acre to meet individual productivity needs (see the rate charts above for more details). The Montag 2108 Cover Crop System provides a unique solution to protect and nurture soil health while enhancing versatility, making the Hagie 204SP Detasseler a one-machine solution for late season needs.

Key specifications

Row configurable
12 (9.1 m [30 ft]) to 15 (11.43 m [37.5ft])

Section sonfigurable
1-4 sections

Slide gate control
Manual lever

Controller
Montag MTC200 controller

Product capacity (bin)
0.85 m3 (30-cu ft) bin: 0.99 m3 (34.8-cu ft), 1.11 ton* (2447.13 lb)

Rate capacity (bin)
See 2108 rate chart at www.montagmfg.com

2108 weight**
385.55 kg (850 lb) to 453.6 kg (1,000 lb)

Fill height
3.6 m (12 ft)

Product fill inlet size
0.97 m (3.2 ft)

Product outlet hose size
5.08 cm (2 in.)

Required hydraulic capacity
52.99 L/min (14 gpm)

Required hydraulic pressure
137.89 bar (2000 psi)

*Calculated using 1.025 kg/L (64 lb/cu ft) product density

**Unloaded, dry weight (approximated). Excludes platform and mounting kit

NOTE: Montag Manufacturing has an allied partnership agreement with John Deere as it relates to the cover crop system and is responsible for providing sales and technical support to dealers.

For additional information about the system, visit www.montagmfg.com or call 712-852-4572. Montag is a trademark of Montag Manufacturing, Inc.

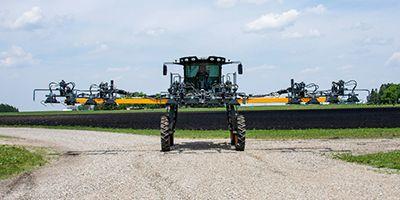

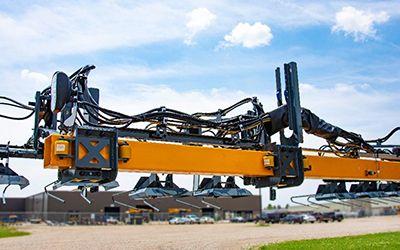

The 4-1 / 4-2 detasseling toolbar option provides adjustment for detasseling multiple planting patterns. No tools are needed to quickly change between planting patterns of 4-1 and 4-2.

• Increase uptime with the ability to change between planting patterns without leaving the cab
• No tools required to change between planting patterns
• Boost versatility with option to match multiple planting patterns with one machine
