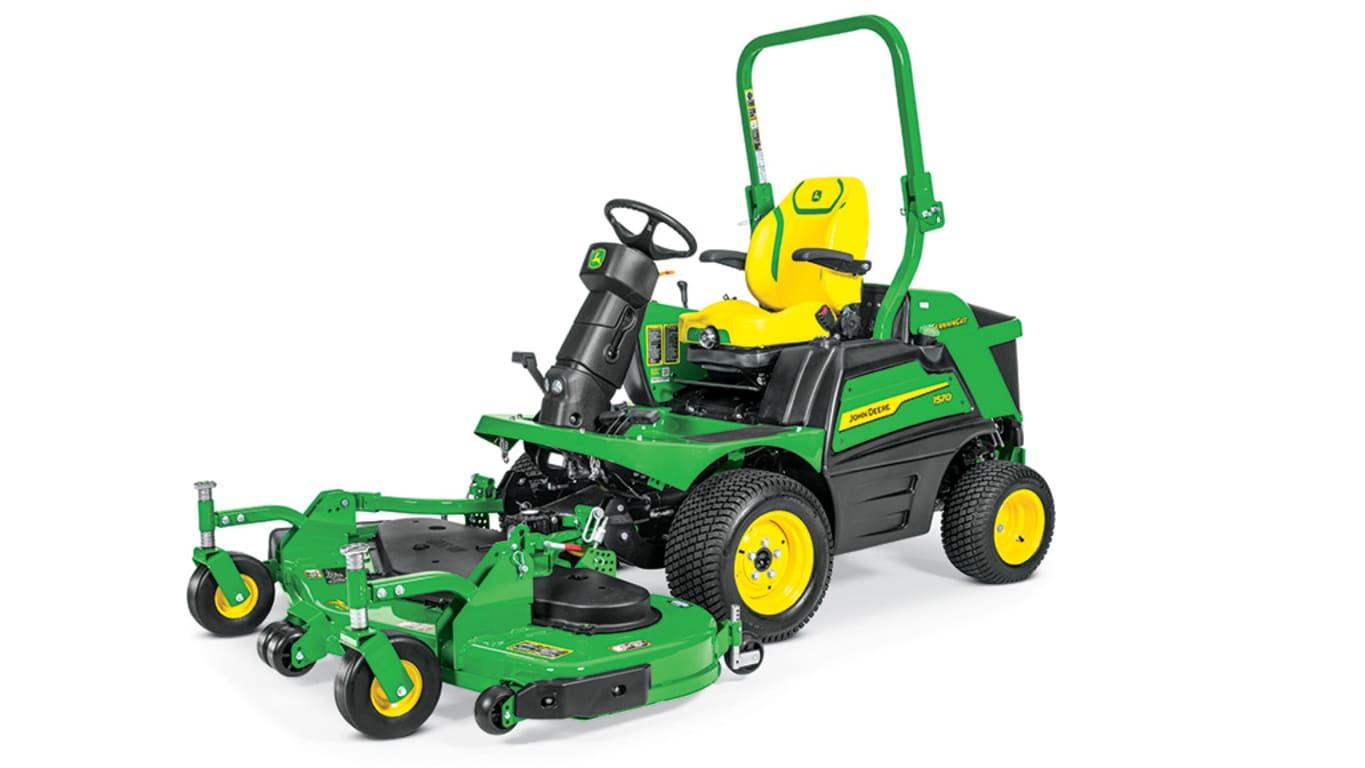

Front and Wide Area MowersTerrainCut™ Front Mower
The 1500 Series TerrainCut™ Front Mowers are powered by liquid-cooled, 3-cylinder diesel engines.
These engines feature low levels of exhaust and emissions, reduced noise levels, and excellent fuel economy. They also meet the necessary Environmental Protection Agency (EPA) Tier 4 emissions requirements.
The 1570, 1575, 1580, and 1585 models are biodiesel compatible from the factory up to B20. The 1550 model requires an optional kit to be compatible with B20 biodiesel fuel.
1550
1570, 1575, 1580, 1585
Fuel
Diesel (optional kit permits B20 compatibility)
Diesel (B20 compatible)
Gross power at maximum rpm
25 hp (18.4 kW), PS
37.4 hp (27.5 kW), PS
Displacement
77 cu in. (1.262 L)
100.2 cu in. (1.642 L)
Key features of the engine include:
Fuel tank features:
Since 1998 the John Deere 7-Iron™ mower deck has demonstrated commercial quality, performance, and durability. The 7-Iron PRO, FastBack™, and FastBack PRO mower decks deliver an even higher-quality cut in even more diverse conditions.
TerrainCut Front Mower Compatibility
Mower Deck
1550
1570
1575
1580
1585
60-in. (152-cm) 7-Iron PRO Side-Discharge Mower Deck
X
X
X*
X*
X*
62-in. (157-cm) FastBack Rear-Discharge Mower Deck
X
X
X
X
X
72-in. (183-cm) 7-Iron PRO Side-Discharge Mower Deck
X
X
X
X
X
72-in. (183-cm) FastBack PRO Rear-Discharge Mower Deck
X
X
X
X
X
Rear weights (UC13263) are required based on machine configuration. Must also order TCB10303, rear weight mounting bracket.
*Mower deck offset for trimming capability. Vehicle track width is 2 in. (5.1 cm) wider on the discharge side of deck. This may cause the tire to drive over uncut grass on discharge side of deck.
NOTE: These mower decks will not retrofit to F900 Series or F1145 Front Mowers.
Rotate for Service (RFS) feature provides access for cleaning and maintenance of the mower decks:
The Rotate for Service position also reduces the length of the machine for trailering.
Certification
TerrainCut Front Mowers comply with ANSI B71.4 safety certification.
The mower spindle housings are made of ductile cast iron.
Key benefits of ductile cast-iron spindle housings:
NOTE: The 72-in. (183-cm) 7-Iron V-Flex Side-Discharge Mower Deck has an aluminum center spindle housing. The outside blades are driven by cast-iron gearboxes.
Features include:
The mower is designed to provide exceptional cut quality at higher travel speeds:
Unique baffling system allows grass to stand up before being cut, producing a uniform length and appearance:
The 62-in. (157-cm) FastBack rear-discharge mower is ideally suited for:
Key features of the 62-in. (157-cm) Rear-Discharge Mower Deck include:
Features include:
The mower is designed to provide exceptional cut quality at higher travel speeds:
Unique baffling system allows grass to stand up before being cut, producing a uniform length and appearance:
The 72-in. (183-cm) Rear-Discharge FastBack PRO Mower Deck is ideally for professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere FastBack PRO rear-discharge mower decks deliver a commercial mowing solution. Advantages of a rear-discharge mower include:
A rear-discharge mower deck is ideally suited for:
Key features of the 72-in. (183-cm) Rear-Discharge Mower Deck include:
60-in. (152-cm) 7-
Iron PRO Side- Discharge
62-in. (157-cm)
FastBack Rear- Discharge
72-in. (183-cm) 7-
Iron PRO Side- Discharge
72-in. (183-cm)
FastBack PRO Rear- Discharge
Gauge (thickness)
7 gauge, 0.179 in. (4.6 mm)
7 gauge, 0.179 in.
(4.6 mm)
7 gauge, 0.179 in. (4.6 mm)
7 gauge, 0.179 in.
(4.6 mm)
Cutting height
1 to 6 in. (2.5 to 15.2 cm)
1 to 6 in. (2.5 to 15.2 cm)
1 to 6 in. (2.5 to 15.2 cm)
1 to 6 in. (2.5 to 15.2 cm)
Caster wheel type
Semi-pneumatic
Semi-pneumatic
Semi-pneumatic
Semi-pneumatic
Gauge wheels
Yes, front and rear
Yes, front and rear
Yes, front and rear
Yes, front and rear
Deck oscillation relative to ground plane
+/- 15 degrees
+/- 15 degrees
+/- 15 degrees
+/- 15 degrees
Lateral deck tilt
+/- 8 degrees
+/- 8 degrees
+/- 8 degrees
+/- 8 degrees
Deck installed at factory
No
No
No
No
Time required for one person to install or remove deck (without tools)
10 minutes
10 minutes
10 minutes
10 minutes
Time to change height of cut
3 minutes without tools
3 minutes without tools
3 minutes without tools
3 minutes without tools
Belt type
Kevlar belt
Kevlar belt
Kevlar belt
Kevlar belt
Belt shield type
Plastic
Plastic
Plastic
Plastic
Belt shield time to remove or install
2 minutes or less
2 minutes or less
2 minutes or less
2 minutes or less
Blade type
High lift
Medium lift
High lift
Medium lift
Blade tip speed
18,000 fpm (5,486
m/min)
16,000 fpm (4,877
m/min)
18,000 fpm (5,486
m/min)
18,000 fpm ( 5,486
m/min)
Spindles
3
3
3
3
Spindle-housing material
Ductile cast iron
Ductile cast iron
Ductile cast iron
Ductile cast iron
Deck level laterally when raised
Yes
Yes
Yes
Yes
Discharge
Side
Rear
Side
Rear
Mowing width
60 in. (152 cm)
62 in. (157 cm)
72 in. (183 cm)
72 in. (183 cm)
Overall width (chute down)
74 in. (188 cm)
64 in. (163 cm)
86 in. (218 cm)
74 in. (188 cm)
Weight
---
---
---
---
Live, independent power take-off (PTO) powers a mower deck, rotary broom, or two-stage snow blower:
Standard drive tires:
Available steering tires: 18x8.5-10 (4WD) or 18x8.5-8 (2WD)
Standard drive tires: 26x12-12, 6 PR drive tires (1580, 1585)
Standard steering tires: 20x10.00-10, 6 PR steering tires (1580, 1585)
Kits are available to convert the 60-in. (152-cm) and 72-in. (183-cm) 7-Iron™ PRO Side-Discharge Mower Decks into mulching decks for use in grass and leaves.
The mulch kits include mulching blades, baffles, end covers, and attaching hardware.
Maneuverability:
Hydrostatic power steering provides the following benefits:
The steering console offers the following:
Console information/warning lights include the following:
Two-pedal foot control:
Master stop brake (parking brake):
Individual turn-assist brakes:
Differential lock:
The 4WD control lever is standard on 1575, 1580, and 1585; it is a factory-installed option on the 1550 and 1570.
The 4WD control lever:
Electronic cruise control (optional):

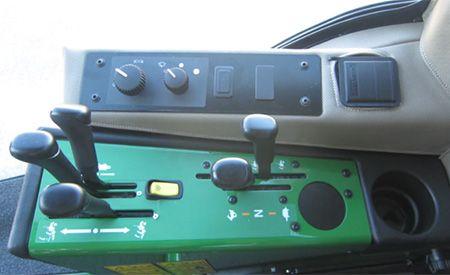

The lift-control lever is conveniently located within easy reach of the operator's right hand.
A two-speed transaxle shift lever is standard on 1580 and 1585.
TerrainCut™ Front Mowers have an operator-presence system.
To start the engine the following conditions must be met:
In addition, once the engine is running, an interlock automatically shuts the engine and PTO off if the operator leaves the seat. To keep the engine running, the operator must disengage the PTO and set the parking brake before dismounting.
The three-piece steering column provides the following:
Tilt steering column allows the operator to adjust to the most comfortable position:
Wet-disk brakes are standard equipment:
The differential lock is also included as standard equipment:
The 12-V power outlet can be used to recharge radios and cell phones, popular tools used by commercial cutters.
The outlet is conveniently located under the front of the seat.
TerrainCut Front Mowers comply with ANSI B71.4 2004 safety certification specification.
The ROPS complies with the U.S. Occupational Safety and Health Administration (OSHA) 1928.51 standard for rollover protection.
Operator comfort enhances productivity. TerrainCut™ Front Mowers include suspension seats with green accents and an embroidered John Deere logo. The comfort-adjust mechanical spring suspension seat is base equipment, and an air-ride suspension is an optional upgrade. The operator can adjust suspension by increasing or decreasing pressure for optimum comfort. Fore-aft adjustments accommodate both tall and short operators.
Both seats are 24-in. (61-cm) tall and include back-angle, lumbar, and arm rest adjustments. The eye-catching seats are constructed from two unique vinyl textures and sewn with decorative stitching. Retractable seat belts prevent belts from becoming tangled in the seat suspension and controls.
Other comfort features include:
Engine hood includes large screened area:
Hood latch keeps the hood securely in place, providing an optimum seal:
Designed-in service accessibility helps ensure daily maintenance is completed to keep the machine operating at peak performance.
The hood opens rearward, exposing the following:
The hood can be totally removed, if necessary. The seat flips forward for access to air filter, fuse bank, engine oil dipstick, and front of engine.
Easy-to-turn knobs are provided to release the air conditioning condenser (1575 and 1585 only) and fuel and hydraulic oil coolers so they can be tilted back to permit thorough cleaning between them and the engine coolant radiator.
To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on the control console near the seat. The owner information web pages that include links to:
The panel on the foot platform can be removed for access to the transaxle, PTO shaft, and most linkages.
Easy-to-read daily service decal is located on the bottom of the foot platform panel:
Removal of the foot platform gives convenient access to the driveshaft that powers the mower deck, snow blower and rotary broom:
Hydraulic hoses have reusable O-ring seal (ORS) fittings:
RFS feature provides access for cleaning and maintenance of the mower decks:
Trailering features are designed-in for convenience:
Remote battery posts simplify jump starting. Both positive and negative posts are located in front of the right rear steer tire.
The revolutionary tubular, high-strength welded steel frame provides durability and allows major components to be located lower in the machine:
Durability features of the frame include:
A Kanzaki® 30-cc transmission is used for reliable operation.
Durability features include the following:
Kanzaki is a trademark of Kanzaki Kokyukoki Manufacturing Company.
Mechanical rear-wheel drive is available as standard equipment (1575, 1580, 1585) or as a factory-installed option (1550, 1570):
Dual 23x8.5-12 drive tires are available for increased hillside stability, flotation, and reduced ground compaction.
In addition, single drive tires may be set in the narrow or wide position to match mowing conditions.
NOTE: These tires are available for the 1550 and 1570 models only.

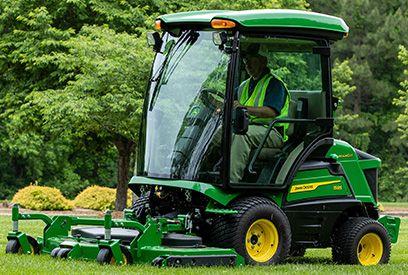

1585 TerrainCut™ Front Mower
Tail-follows-the-trail trimming with 72-in. (183-cm) mower decks. Steered wheels (tail) stay within the path (trail) cut by the mower deck, allowing maneuverability without the rear of the machine contacting mowing obstacles.
Front mowers must be properly ballasted for both good performance and safe operation. Ballast requirements differ depending on the front mower model and the implement being used.
The chart below gives the minimum ballast requirements for the various product configurations. Additional ballast is recommended for operating on slopes or other conditions that may warrant it.
NOTE: Use only implements and accessories recommended by the manufacturer.
Front mowers and current (model year 2015 and later) implements
TerrainCut™ 1500 Series Front Mowers
Product Configuration
60-in. (152-
cm) Side-
Discharge Deck (7- Iron™ PRO)
72-in. (183-
cm) Side-
Discharge Deck (7- Iron PRO)
62-in. (157-
cm) Rear-
Discharge Mower Deck
72-in. (183-
cm) Rear-
Discharge Mower Deck
60-in. (152-
cm) HD Front Blade
47-in. (119-
cm) HD Two-Stage Snow Blower
60-in. (152-
cm) HD Two-Stage Snow Blower
60-in. (152-
cm) Rotary Broom
43-in. (109-
cm) Drop Spreader (Order Zone)
1550 Front Mower 2WD
1*
2*
1*
2*
0
2*
3*
1*
NA***
1550 Front Mower 4WD
0
1*
0
1*
0
2*
2*
0
Wide track
1570 Front Mower 2WD
1*
2*
1*
2*
0
2*
3*
1*
NA***
1570 Front Mower 4WD
0
1*
0
1*
0
2*
2*
0
Wide track
1575 Front Mower
Narrow track
+ 4 *
Wide track + 5*
Narrow track
+ 1 wheel weight on each side**
+ 3
weights* or wide track
+ 3 weights*
Wide track + 6*
1*
NA***
6*
Wide track + 1 wheel weight on each side**
+ 3 weights*
With 60-in. Rotary Broom: wide track + 2 wheel weight on each side**
or with 60-in.
Snow Blower: wide track
1580 Front Mower
0
1*
0
1*
0
NA***
2*
0
Wide track
1585 Front Mower
Narrow track
+ 4*
Wide track + 5*
Narrow track
+ 1 wheel weight on each side**
+ 3
weights* or wide track
+ 3 weights*
Wide track + 6*
1*
NA***
6*
Wide track + 1 wheel weight on each side**
+ 3 weights*
With 60-in. Rotary Broom: wide track + 2 wheel weight on each side**
or with 60-in.
Snow Blower: wide track
1400 and 1500 Series II Front Mowers
1420 Series II Front Mower
0
2*
1*
4*
6*
4*
6*
6*
NA***
1435 Series II Front Mower
0
2*
1*
4*
6*
4*
6*
6*
NA***
1445 Series II Front Mower
0
2*
1*
4*
6*
4*
6*
6*
NA***
1545 Series II Front Mower
0
2*
1*
4*
6*
NA***
6*
6*
NA***
1565 Series II Front Mower
0
2*
1*
4*
6*
NA***
6*
6*
NA***
1575/1585 Cab models: Rim design allows for tire assembly to be mounted in two different configurations, a narrow track or wide track width to meet ballast requirements.
*42-lb (19-kg) (UC13263) Quik-Tatch weight (installation requires TCB10303, rear weight mounting kit).
**50-lb (23-kg) front wheel weight(s) required (installation requires BM18101, mounting hardware kit).
***NA - Not recommended for use on front mower.
NOTE: Ballast requirements may change. Always refer to the implement owner's manual for the appropriate ballast requirements.
Front mowers and model year 2014 and prior implements
1400 and 1500 Series II Front Mowers
Product Configuration
60-in. (152-
cm) Side- Discharge Deck (7- Iron™ and 7-Iron II)
72-in. (183-
cm) Side- Discharge Deck (7-
Iron and 7- Iron II)
62-in. (157-
cm) Rear- Discharge Mower Deck
72-in. (183-
cm) Rear- Discharge Mower Deck
MCS 600
Hydraulic Dump
Soft cab
Hard cab
60-in. (152-cm)
HD Front Blade
47-in. (119-cm) HD
Two- Stage Snow Blower
60-in. (152-cm) HD
Two- Stage Snow Blower
60-in. (152-
cm) Rotary Broom
1420 Series II Front Mower
0
1*
0
1*
0
0
0
6*
4*
6*
6*
1435 Series II Front Mower
0
1*
0
1*
0
0
0
6*
4*
6*
6*
1445 Series II Front Mower
0
1*
0
1*
0
0
0
6*
4*
6*
6*
1545 Series II Front Mower
NA
1*
NA
1*
0
0
0
6*
NA
6*
6*
1565 Series II Front Mower
NA
1*
NA
1*
0
0
0
6*
NA
6*
6*
1500 TerrainCut Front Mowers
1550 Front Mower 2WD
1*
2*
1*
2*
NA
NA
NA
0
2*
3*
1*
1550 Front Mower 4WD
0
1*
0
1*
NA
NA
NA
0
2*
2*
0
1570 Front Mower 2WD
1*
2*
1*
2*
NA
NA
NA
0
2*
3*
1*
1570 Front Mower 4WD
0
1*
0
1*
NA
NA
NA
0
2*
2*
0
1575 Front Mower
Narrow track + 4*
Wide track
+ 5*
Narrow track 1 wheel weight on each side**
+ 3 weights* or wide track
+ 3 weights*
Wide track
+ 6*
NA
NA
NA
1*
NA
6*
Wide track 1 wheel weight on each side**
+ 3 weights*
1580 Front Mower
0
1*
0
1*
NA NA
NA
0
NA
2*
0
1585 Front Mower
Narrow track + 4*
Wide track
+ 5*
Narrow track 1 wheel weight on each side**
+ 3 weights* or wide track
+ 3 weights*
Wide track
+ 6*
NA
NA
NA
1*
NA
6*
Wide track 1 wheel weight on each side**
+ 3 weights*
1575/1585 Cab models: Rim design allows for tire assembly to be mounted in two different configurations, a narrow track or wide track width, to meet ballast requirements.
* 42-lb (19-kg) (UC13263) Quik-Tatch weight (requires TCB10303, rear weight mounting kit).
** 50-lb (23-kg) front wheel weight(s) required (installation requires BM18101, mounting hardware kit).
NA - Not recommended for use on front mower.
NOTE: Ballast requirements may change. Always refer to the implement owner's manual for the appropriate ballast requirements.
The foldable two-post Roll-Gard rollover protective structure (ROPS) and retractable seat belt are standard equipment.
| Engine Manufacturer/model | 3TNV88C |
|---|---|
| Engine Power | Gross PS: 37.4 hp 27.5 kW |
| Fuel tank capacity | 16 U.S. gal. 60.6 L |
| Mower deck Size | 60 or 72 in. 152 or 183 cm |
| Blade tip speed | 18,000 fpm 5,486 m/min |
| Transmission | Hydrostatic 2WD, optional full time or on demand 4WD |
| Speed range | 0-12 mph 0-19.3 km/h |
| Drive wheels | 23x10.5-12 Optional 23x8.5-12 |
| Caster wheels | Flat free, 11x4-5 |
| Warranty | 24 months |
| Manufacturer/model | 3TNV88C |
|---|---|
| Power | Gross PS, 37.4 hp 27.5 kW |
| Rated engine rpm | 3,000 rpm |
| Cylinders | Three |
| Displacement | 100.2 cu in. 1.64 L |
| Maximum torque | At 1,950 rpm: 80.4 lb-ft 109 Nm |
| Injection | Direct |
| Fuel type | Diesel (B20 compatible) |
| Fuel tank capacity | 16 U.S. gal. 60.6 L |
| Cooling | Liquid |
| Cooling capacity | 8 U.S. qt 7.6 L |
| Air cleaner | Dual element dry type |
| Air restriction indicator | Standard |
| Charging system | Automotive type |
| Alternator, amp | 75 amp |
| Battery | 12 V |
| Transmission | Hydrostatic 2WD, optional full time or on demand 4WD |
|---|---|
| Speed and direction control | Two-pedal foot |
| Cruise control | Optional |
| Hi/Lo range | No, single speed transmission |
| Speed range | - |
|---|---|
| Hi forward | 0-12 mph 0-19.3 km/h |
| Lo forward | - |
| Hi reverse | 0-5 mph 0-8 km/h |
| Lo reverse | - |
| 4-wheel drive | - |
| Differential lock | - |
| Final drives | - |
| PTO | - |
| PTO clutch | - |
| PTO drive output | - |
| Type | Open center |
|---|---|
| Pump capacity | 5.1 U.S. gpm 19.3 L/min |
| Spool valve | Front lift, standard |
| Lift cylinders | Two |
| Type | Hydraulic cylinder |
|---|---|
| Turns lock-to-lock | 2 maximum, 1.5 minimum |
| Type | Internal wet disk |
|---|---|
| Individual turn brakes | Standard |
| Master brake | Standard, locking |
| Warranty | 24 months |
|---|
| Drive wheels | 23x10.5-12 Optional 23x8.5-12 |
|---|---|
| Steering | 2WD: 18x8.5-8 4WD: 18x8.5-10 |
| Type | Optional hydraulic |
|---|
| Wheelbase | 49.2 in. 125 cm |
|---|---|
| Ground clearance | 6.5 in. 16.5 cm |
| Length | Less mower deck: 86.7 in. 220.2 cm |
| Overall width | Narrow Width 23x10.5 tires: 51.8 in. 131.6 cm Wide Width 23x10.5 tires: 60.3 in. 153.2 cm |
| ROPS | Standard (folding) |
| ROPS certification | Two-post: OSHA 1928; Canadian Std.: CSA-352 Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 |
| Overall height with ROPS | 82.7 in. 210 cm |
| Overall height with ROPS folded | 58 in. 147 cm |
| Shipping weight | Net weight, 2WD without mower or fuel: 1,800 lb 816 kg Net weight, 4WD without mower or fuel: 1,960 lb 889 kg |
| Construction | One-piece stamped steel; 7-Iron PRO |
|---|---|
| Deck thickness | 7 gauge 0.180 in. 4.6 mm |
| Size | 60 or 72 in. 152 or 183 cm |
| Deck offset | Yes |
| Cutting height | 1-6 in. 2.54-15.24 cm |
| Belt tensioning | Spring loaded |
| Blade tip speed | 18,000 fpm 5,486 m/min |
| Caster wheels | Type Flat free Size 11x4-5 |
| Front anti-Scalp rollers | Yes, gauge wheels |
| Rear anti-scalp rollers | Yes, gauge wheels |
| Shipping weight | - |
| Cutting width | 62, 72 in. 157, 183 cm |
|---|---|
| Cutting height | 1-6 in. 2.54-15.2 cm |
| Caster wheels | Type Flat free Size 11x4-5 |
| Shipping weight | - |
| Date collected | 1-Oct-22 |
|---|
