Find your implementLoader

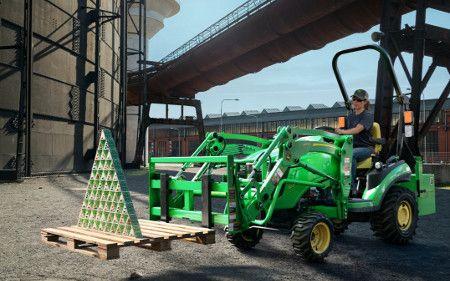

Whether the operator is new or experienced to loader operations, it requires skill to maintain an even load and reduce the amount of material lost. With the MSL loader offering for 1 Series, 2 Series, 3D, and 3E Tractors, anyone can operate their loader with ease and confidence. With the MSL loader, you will notice:

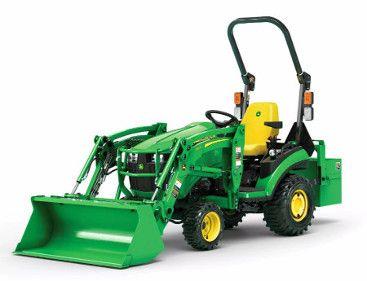

This loader is the first of its kind in North America for Compact Utility Tractors and can make any loader task easier and quicker to accomplish.

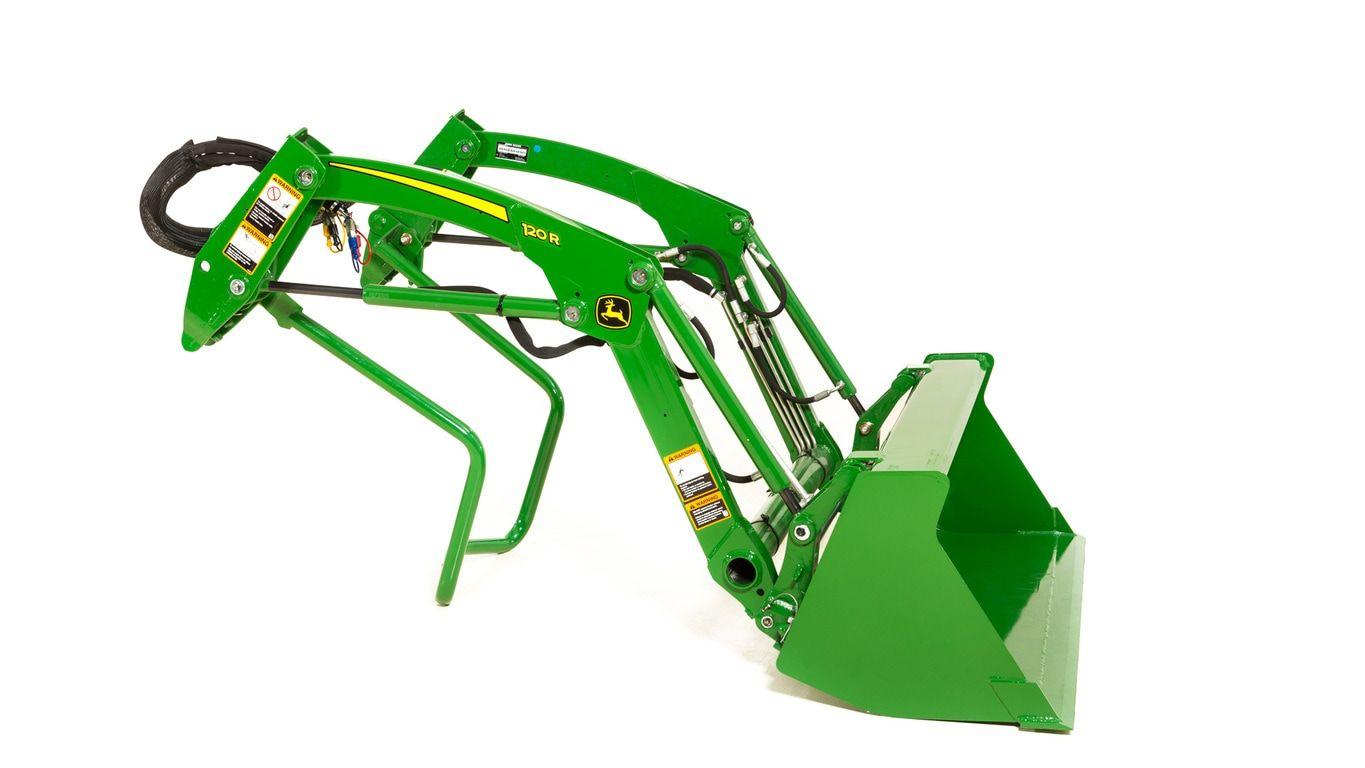

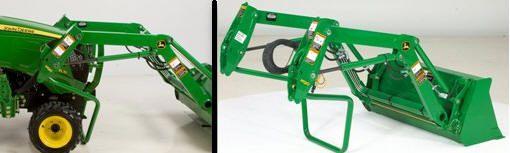

The Quik-Park mounting system on the 120R Loader is designed for easy removal and mounting to and from the tractor without tools.
Just like on the former H120, the parking stand is attached to the mast. To lower it into the park position, simply move the joystick to the raise position once the latches are opened.
The 120E does not utilize the Quik-Park system as used on the 120R, but rather has two parking stands that are stored within the torque tube for a manual parking process.
Remove the parking stand from the torque tube area and place within the loader foot plate during the parking process (as shown).
Once the loader weight is being supported by the bucket and parking stands, manually remove the pins from the mast assembly and disconnect hydraulics.
After installing the parking stands, removing the parking pins and disconnecting hydraulics, simply back away.
The unique offset head design eliminates cross-pins and cotter pins to retain the pin.
A nut ensures the pins remain in position.
A lubrication groove provides a path for lubrication.
End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
| Maximum lift height (A) | 1828 mm 72 in. |
|---|---|
| Lift capacity at full height | Measured at pivot (U) 364 kg 803 lb Measured at 500 mm ahead of pivot (V) 251 kg 553 lb |
| Boom breakout force | Measured at pivot (Y) 890 kgf 1963 lbf Measured at 500 mm ahead of pivot (Z) 606 kgf 1335 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 753 kgf 1659 lbf |
| Clearance at full height - bucket dumped (C) | 1304 mm 51.3 in. |
| Dump angle, degrees (E) | -40.5 degree (angle) |
| Rollback angle, degrees (G) | 30.08 degree (angle) |
| Model | 2025R/2026R |
|---|---|
| Front tire | 23x8.50-12 6PR R4 CL |
| Rear tire | 12.00-16.5 6PR R4 CL |
| Front axle configuration | - |
| Wheelbase | 1600 mm |
| Pump capacity | 26.5 L/min |
| Rated pressure | 2146 psi |
| Base weight | 283.88 kg |
|---|---|
| Leveling configuration | - |
| Bucket used | Materials 1350 mm |
| Bucket weight | 83 kg 183 lb |
| Lift capacity at full height | Measured at pivot (U) 364 kg 803 lb Measured at 500 mm ahead of pivot (V) 251 kg 553 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb |
| Boom breakout force | Measured at pivot (Y) 890 kgf 1963 lbf Measured at 500 mm ahead of pivot (Z) 606 kgf 1335 lbf |
| Bucket rollback force capacity | At maximum height (VV) 648 kgf 1428 lbf At 59-in. (1500-mm) lift height (XX) 777 kgf 1713 lbf At ground-level line (ZZ) 753 kgf 1659 lbf |
| Dimensions | Maximum lift height (A) 1828 mm 72 in. At full height - bucket level(B) 1666 mm 65.6 in. At full height - bucket dumped (C) 1304 mm 51.3 in. |
| Overall length (I+F), ft (m) | 2888 mm 113.7 in. |
| Overall height in carry position (J) | - |
| Digging depth (H) | -86 mm -3.4 in. |
| Reach | At maximum height (D) 698 mm 27.5 in. At ground level - bucket level (F) 1288 mm 50.7 in. |
| Bucket angle | Dump angle, degrees (E) -40.5 degree (angle) Rollback angle, degrees (G) 30.08 degree (angle) Dump angle, ground -115.4 degree (angle) |
| Cycle times | Loader raise, seconds 3.7 seconds Loader lower, seconds 2.6 seconds Bucket dump, seconds 4.1 seconds Bucket rollback, seconds 2.5 seconds |
| Date collected | - |
|---|
