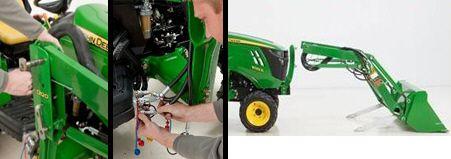

The parking mounting system on the 120E Loader is designed for easy removal and mounting to and from the tractor without tools.

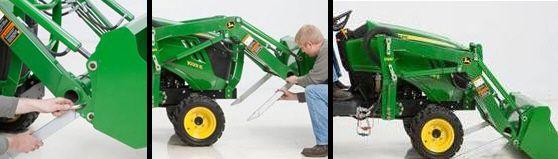

Similar to that of the D120, the 120E parking stands are kept in the torque tube for easy accessibility. To park the loader, simply install parking stands, remove pivot pins from the mast, disconnect the hydraulic hoses, and back out the tractor.
Images are from the former D120 loader with straight boom
Easy removal and mounting
The unique offset head design eliminates cross-pins and cotter pins to retain the pin.
A nut ensures the pins remain in position.
A lubrication groove provides a path for lubrication.
End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
| Maximum lift height | 1809 mm 71.2 in. |
|---|---|
| Lift capacity at full height | Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb |
| Boom breakout force | Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb |
| Bucket rollback force capacity | At ground-level line 707 kg 1559 lb |
| Clearance at full height - bucket dumped | 1371 mm 54 in. |
| Dump angle, degrees | -40.1 degree (angle) |
| Rollback angle, degrees | 31.2 degree (angle) |
| Model | 1023E/1026R Tractor |
|---|---|
| Front tire | 18x8.5-10 4PR R4 |
| Rear tire | 26x12.00-12 4PR R4 |
| Front axle configuration | - |
| Wheelbase | 1450 mm 57 in. |
| Pump capacity | 3.5 gpm |
| Rated pressure | 1987 psi |
| Base weight | 220.5 kg |
|---|---|
| Leveling configuration | - |
| Bucket used | Pin on Materials 1250 mm 49 in. |
| Bucket weight | 53 kg 117 lb |
| Lift capacity at full height | Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot 429 kg 944 lb Measured at 500 mm ahead of pivot 309 kg 680 lb |
| Boom breakout force | Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb |
| Bucket rollback force capacity | At maximum height 593 kg 1330 lb At 59-in. (1500-mm) lift height 711 kg 1568 lb At ground-level line 707 kg 1559 lb |
| Dimensions | Maximum lift height 1809 mm 71.2 in. At full height - bucket level 1653 mm 65.1 in. At full height - bucket dumped 1371 mm 54 in. |
| Overall length | 2.6 m 8.6 ft |
| Overall height in carry position | - |
| Digging depth | -101 mm -4.0 in. |
| Reach | At maximum height 571 mm 22.5 in. At ground level - bucket level 1176 mm 46.3 in. |
| Bucket angle | Dump angle, degrees -40.1 degree (angle) Rollback angle, degrees 31.2 degree (angle) Dump angle, ground -114.0 degree (angle) |
| Cycle times | Loader raise, seconds 4.0 seconds Loader lower, seconds 2.5 seconds Bucket dump, seconds 5.7 (without regen)/2.2 (with regen) seconds Bucket rollback, seconds 3.5 seconds |
