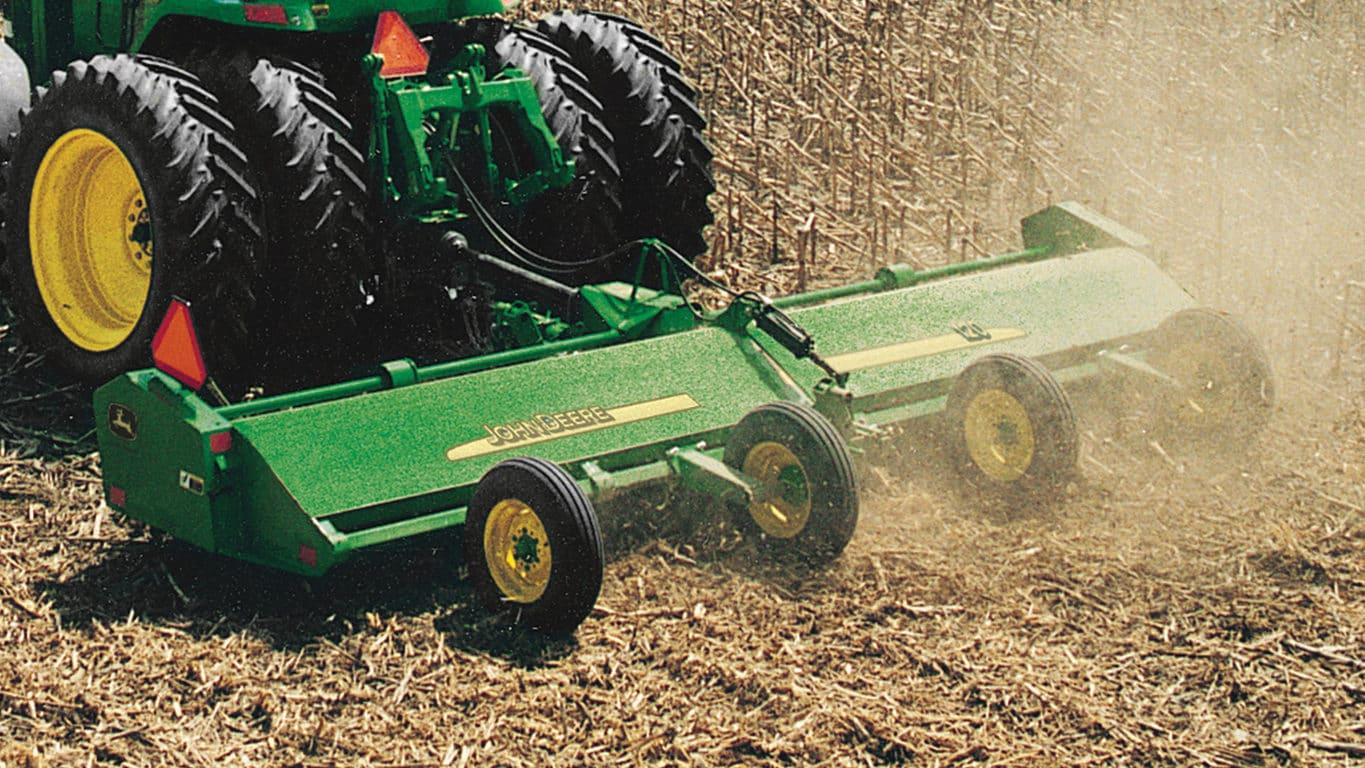

John Deere Flail Mowers & ShreddersDrawn Flail Shredder


The 100 Series Flail Shredder is available with a drawn tractor hookup.


Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.

A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:

The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.
The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.
| Tractor PTO hp range | 67-200 kW 90-200 hp |
|---|---|
| Tractor RPM | 1,000 rpm |
| Gear case | - |
| Number of knives | 160 |
|---|---|
| Knife dimensions | - |
| Knife mounting system | 7.87 x 63.5 x 143 mm 0.31 x 2.5 x 5.63 in. |
| Type | Heat-treated, reversible, side-slicer, hard-faced, tungsten-carbide knives optional |
| Knives overlap | - |
| Tip speed | 171 km/h 106 mph |
| Rotor speed | 1,500 rpm |
|---|---|
| Rotor diameter | 139.7 mm 5.5 in. |
| Rotor bearing | Sealed, self-aligning; piloted housing, auxiliary seals, and grease cavities |
| Bearing size | 41.15 mm 1.62 in. |
| Belts | Power-band, triple 5VX |
|---|---|
| PTO drivelines | - |
| Hitch | Drawn |
|---|---|
| Hood thickness | 6.35 mm 1/4 in. |
| Safety deflector | Yes |
| Gauge wheels | 7.60-15 infinitely adjustable row spaces |
| Warning lights | - |
| Cutting width | 6.1 m 20 ft |
|---|---|
| Cutting height | 7.6 to 25.4 cm 3 to 10 in. |
| Transport width | 2.4 m 7.8 ft |
|---|---|
| Transport length | 7.3 m 24.1 ft |
| Weight | 2,100 kg 4,630 lb |
| Easy transport | Yes |
|---|---|
| Constant velocity joint driveline | Yes |
| Skid shoes | - |
