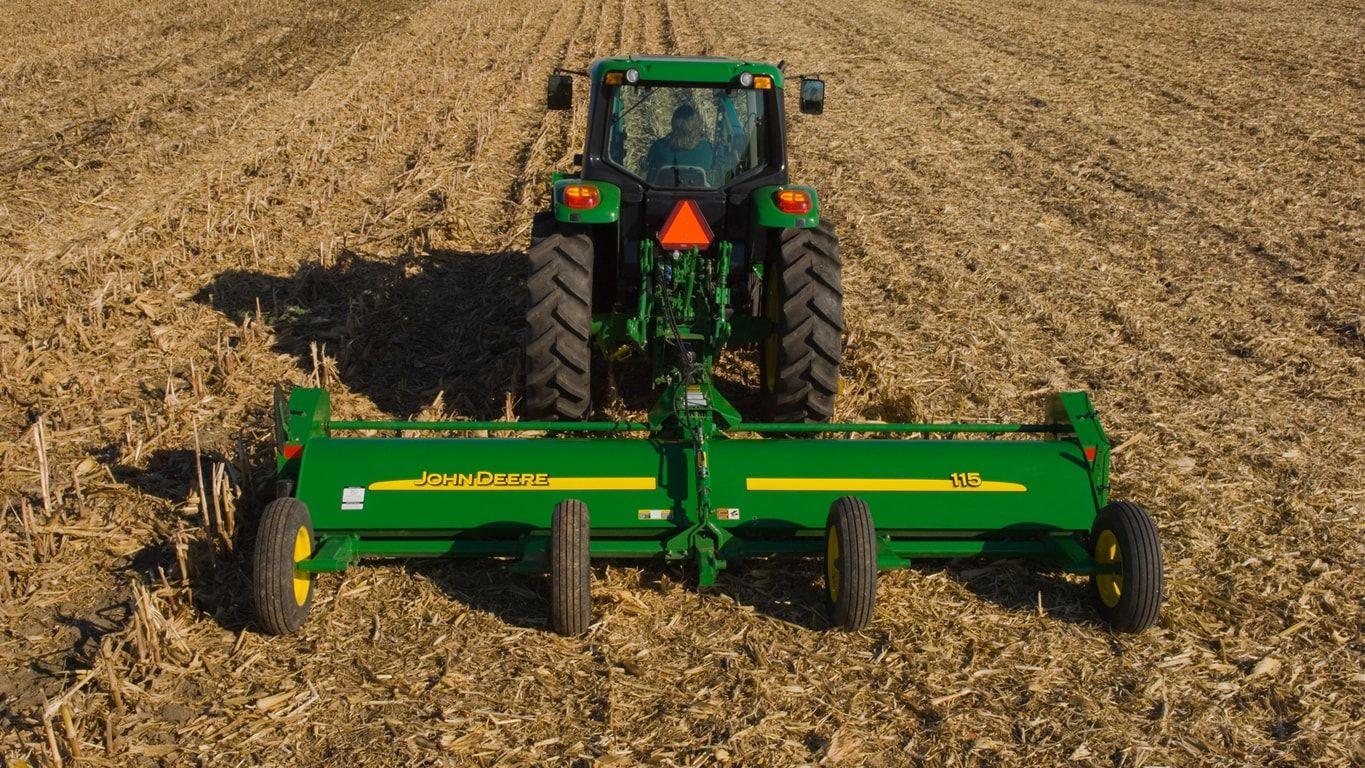

John Deere Flail Mowers & ShreddersDrawn Flail Shredder


The 100 Series Flail Shredder is available with a drawn tractor hookup.


Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.

A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:

The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.
The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.
| Tractor PTO hp range | 67-149 kW 90-200 hp |
|---|---|
| Tractor RPM | 1,000 rpm |
| Gear case | - |
| Number of knives | 120 |
|---|---|
| Knife dimensions | 7.87 x 63.5 x 143 mm 0.31 x 2.5 x 5.63 in. |
| Knife mounting system | - |
| Type | Heat-treated side slice |
| Knives overlap | - |
| Tip speed | 171 km/h 106 mph |
| Rotor speed | 1,500 rpm |
|---|---|
| Rotor diameter | 139.7 mm 5.5 in. |
| Rotor bearing | Sealed, self-aligning, piloted housing, auxiliary |
| Bearing size | 41.28 mm 1.625 in. |
| Belts | Power band, triple 5VX |
|---|---|
| PTO drivelines | - |
| Hitch | Drawn |
|---|---|
| Hood thickness | 6.35 mm 0.25 in. |
| Safety deflector | Yes |
| Gauge wheels | 4 infinitely adjustable |
| Warning lights | - |
| Cutting width | 4.6 m 15 ft |
|---|---|
| Cutting height | 7.6 to 25.4 cm 3 to 10 in. |
| Transport width | 2.39 m 7.83 ft |
|---|---|
| Transport length | 5.82 m 19.08 ft |
| Weight | 1,497 kg 3,300 lb |
| Easy transport | - |
|---|---|
| Constant velocity joint driveline | Yes |
| Skid shoes | - |
| Date collected | - |
|---|
